Butyl Tapes Anti Corrosion Film 0.15mm Thick Aging Resistance

Butyl Tapes Anti Corrosion Film 0.15mm Thick Aging Resistance
Butyl Tapes Anti Corrosion Film 0.15mm Thick Aging Resistance

Large Image :  Butyl Tapes Anti Corrosion Film 0.15mm Thick Aging Resistance

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

Butyl Tapes Anti Corrosion Film 0.15mm Thick Aging Resistance

Description
Product Name: Butyl Tapes Application Temperature Resistance Anti Corrosion Film Material: Fluorine Film+ Cross Laminated Film
Production Process: Film Blowing And Laminated Performance: Aging Resistance
Thickness: 0.09-0.15mm Width: 100-1250mm
Color: White, Green, Black, Etc. Application: Tapes, Waterproofing Membranes
Printing: Can Be Customizable Sample: Available
High Light:

Butyl Tapes Anti Corrosion Film

,

0.15mm Anti Corrosion Film

,

ROHS Laminated Anti Corrosion Film

     Butyl Tapes Application Temperature Resistance Anti Corrosion Film



Description:



It is specially designed for waterproofing industries, tapes industries which shall substitute conventional exposed waterproofing material including the film for waterproofing membranes and butyl tapes, weather resistance tapes and so on. It also has cost effectiveness, and lasts over 25years of weather resistance.



Application:



It is used as surface material for self-adhesive tapes, self-adhesive waterproofing membranes and other weather resistance products.

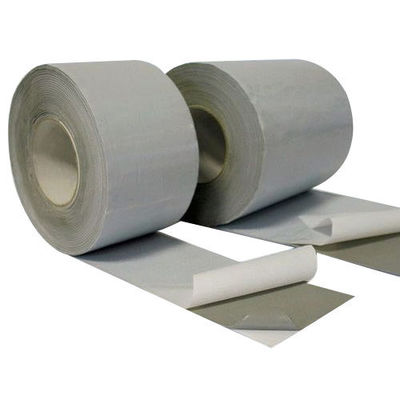

Butyl Tapes Anti Corrosion Film 0.15mm Thick Aging Resistance 0





Weather Resistance Tapes Application:

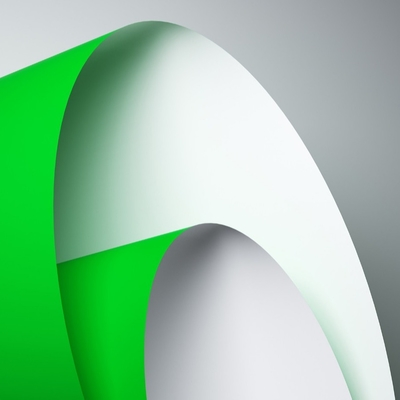

Butyl Tapes Anti Corrosion Film 0.15mm Thick Aging Resistance 1



Aging Resistance Waterproof Membranes Application:

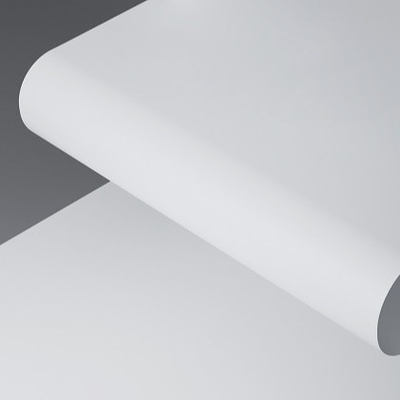

Butyl Tapes Anti Corrosion Film 0.15mm Thick Aging Resistance 2



Advantages:



1. Excellent properties of anti-aging
2. UV resistance
3. Weather resistance
4. Chemical corrosion resistance
5. Resistance to high temperature,heat,humidity and extreme cold
6. Reflectivity of over 85%

7. High strength, tear resistance


Parameter:



Detection Item Detection Method Detection Value Remark
Thickness UF509 GB/T6672-2001 0.128mm /
Width GB/T6673-2001 / According to customer needs
Max force UF509 GB/T 328.9-2007 MD:324N Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm
TD:348N
Elongation at Break UF509   MD:406%
TD:260%
Tensile Strength UF509 GB/T 529-2008 MD:47N Stretching speed:250mm/min
TD:43N
Surface Tension GB/T14216 ≧42dyn/cm Dyne Pen Test
Dimensional change rate UF509 GB/T 35467-2017 MD:0.96% 90℃&24h
TD:0.77%
Water vapor transmission rate GB/T 21529 ≦70 g/m2.24h (20um) 38℃+100%RH
Electrolytic sensor method
Flammability grade UL94 VTM-0 White weathering film
Aging test PCT96 / Yellowing index △b≤2.0, Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h
  UV300KWh IEC61215   The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%.
  DH2000h IEC61215   Temperature 85 ℃, humidity 85% R.H., 2000h
  TC400 IEC61215   Temperature -40 ℃ ~ 85 ℃, 6h / cycle, 400cycle
