Product Details:
|
| Product Name: | PVDF Film; Anti Corrosion Film; Laminated Film; Waterproofing Membranes | Material: | PVDF; Cross Laminated Film; PET Film |
|---|---|---|---|
| Production Process: | Laminated | Performance: | Aging Resistance; Weather Resistance; UV Resistance |
| Thickness: | 0.08mm；0.1mm | Width: | 200-1000mm |
| Color: | White | Application: | Butyl Tapes; Waterproofing Membranes |
| High Light: | Anti Corrosion Laminated Film,Waterproofing PVDF Film,Laminated Waterproofing Membranes |
||

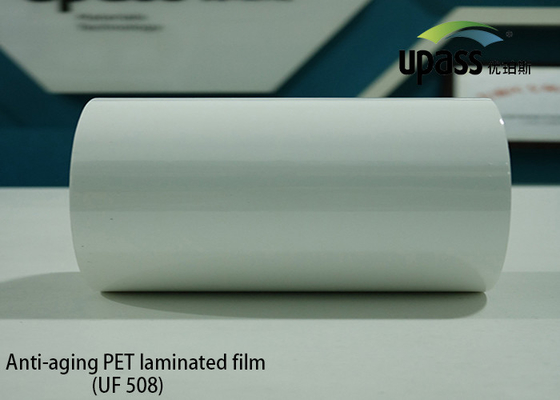

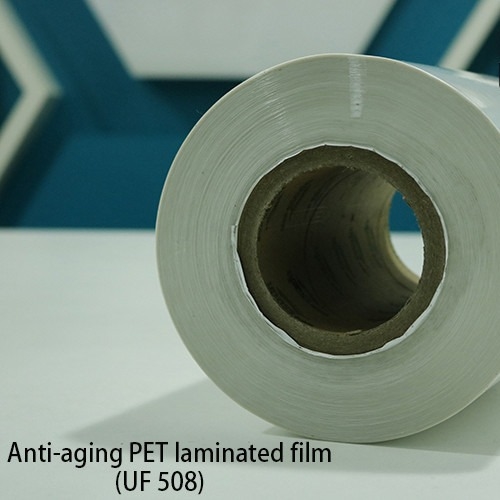

PVDF Film Anti Corrosion Film Laminated Film Waterproofing Membranes
Description:
Weather Resistance Film is composed of PVDF film combined with PET. PVDF film not only
has good chemical corrosion resistance, high temperature resistance, oxidation resistance
and UV resistance, but also has strong wear resistance and impact resistance.
Anti Corrosion Film has high fading resistance and anti-ultraviolet performance in harsh
environments. After compounding with PET film, it increases the strength and meets the
performance requirements of waterproof membranes.
PVDF Film is specially designed for waterproofing industry, which shall substitute
conventionalexposed waterproofing material including the film for waterproofing membrane
and corrosion butyl tapes.
It also has cost effectiveness, and lasts over 25years of weather resistance.
Laminated Film Parameter:
| Detection Item | Detection Method | Detection Value | Remark | |
| Thickness | UF508 | GB/T6672-2001 | 0.1mm | / |
| Width | GB/T6673-2001 | / | According to customer needs | |
| Max force | UF508 | GB/T 328.9-2007 | MD:324N | Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm |
| TD:348N | ||||
| Elongation at Break | UF508 | MD:406% | ||
| TD:260% | ||||
| Tensile Strength | UF508 | GB/T 529-2008 | MD:47N | Stretching speed:250mm/min |
| TD:43N | ||||
| Surface Tension | GB/T14216 | ≧42dyn/cm | Dyne Pen Test | |
| Dimensional change rate | UF508 | GB/T 35467-2017 | MD:0.96% | 90℃&24h |
| TD:0.77% | ||||
| Water vapor transmission rate | GB/T 21529 | ≦70 g/m2.24h (20um) | 38℃+100%RH | |
| Electrolytic sensor method | ||||
| Flammability grade | UL94 | VTM-0 | White weathering film | |
| Aging test | PCT96 | / | Yellowing index △b≤2.0, | Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h |
| UV300KWh | IEC61215 | The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%. | ||
| DH2000h | IEC61215 | Temperature 85 ℃, humidity 85% R.H., 2000h | ||
| TC400 | IEC61215 | Temperature －40 ℃ ～ 85 ℃, 6h / cycle, 400cycle | ||
Weather Resistance Film Application:
Metal roof renovation: On the old roof metal plate, the F508-butyl waterproofing membrane
is fully adhered to the original old roof metal plate base layer to form a roof system with a
complete waterproof layer.
Photovoltaic roofing: UF508 waterproofing membrane has the same life as photovoltaic
modules and can replace conventional PVC and TPO waterproofing membranes.
Main Fields:
As a new material field, functional films are also one of the top ten key fields of Made in China 2025,
and the awareness in the market is increasing. Nowadays, functional films are not only used in the
construction field, special packaging, tape, label, automobile, electronics and other industries,
but also in the fields of film filtration, air permeable film, graphene heating film, insulation film,
Anti-UV film, biodegradable materials etc..
UPASS, as a leading domestic deep cultivator of polymer functional films, has also entered a stage
of rapid development. We believe that UPASS will enter more application fields of polymer films in
near future.
