Corrosion Butyl Tapes Application Anti Corrosion Film

Corrosion Butyl Tapes Application Anti Corrosion Film
Corrosion Butyl Tapes Application Anti Corrosion Film Corrosion Butyl Tapes Application Anti Corrosion Film Corrosion Butyl Tapes Application Anti Corrosion Film Corrosion Butyl Tapes Application Anti Corrosion Film

Large Image :  Corrosion Butyl Tapes Application Anti Corrosion Film

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

Corrosion Butyl Tapes Application Anti Corrosion Film

Description
Product Name: Corrosion Butyl Tapes Application Anti Corrosion Film Material: Fluorine Film+ PET Film
Production Process: Laminated Performance: Weather Resistance
Thickness: 0.036-0.15mm Width: 100-1100mm
Color: White Application: Tapes, Waterproofing Membranes
Printing: Can Be Customizable Sample: Available
High Light:

Butyl Tapes Anti Corrosion Film

,

100mm Laminated Polyester Film Roll

,

ROHS Fluorine Polyester Film Roll

      Aging Resistance Surface Material White Anti Corrosion Film



Description:



It is a surface material, use high strength cross laminated film laminated with fluorine film, make the film high strength and aging resistance.



Use white fluorine film uper side, it is VU resistance, chemical corrosion resistance, and can refelct over 85%-90% sunlight, aging resistance can be up to 25 years. The under layer is cross laminated film, high strength and tear resistance, make it the ideal surface material for anti-corrosion butyl tapes and waterproofing membranes.



Parameter:



Detection Item Detection Method Detection Value Remark
Thickness UF509 GB/T6672-2001 0.128mm /
Width GB/T6673-2001 / According to customer needs
Max force UF509 GB/T 328.9-2007 MD:324N Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm
TD:348N
Elongation at Break UF509   MD:406%
TD:260%
Tensile Strength UF509 GB/T 529-2008 MD:47N Stretching speed:250mm/min
TD:43N
Surface Tension GB/T14216 ≧42dyn/cm Dyne Pen Test
Dimensional change rate UF509 GB/T 35467-2017 MD:0.96% 90℃&24h
TD:0.77%
Water vapor transmission rate GB/T 21529 ≦70 g/m2.24h (20um) 38℃+100%RH
Electrolytic sensor method
Flammability grade UL94 VTM-0 White weathering film
Aging test PCT96 / Yellowing index △b≤2.0, Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h
  UV300KWh IEC61215   The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%.
  DH2000h IEC61215   Temperature 85 ℃, humidity 85% R.H., 2000h
  TC400 IEC61215   Temperature -40 ℃ ~ 85 ℃, 6h / cycle, 400cycle






Corrosion Butyl Tapes Application Anti Corrosion Film 0



Corrosion Butyl Tapes Application Anti Corrosion Film 1





Application:

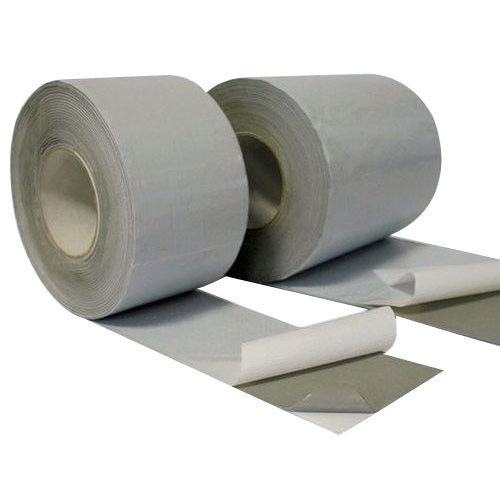

1. Surface Material For Anto Corrosion Tapes Application:



Corrosion Butyl Tapes Application Anti Corrosion Film 2



2. Surface Material For Anti Corrosion Waterproof Membranes Application:



                  Corrosion Butyl Tapes Application Anti Corrosion Film 3





Corrosion Butyl Tapes Application Anti Corrosion Film 4

Corrosion Butyl Tapes Application Anti Corrosion Film 5
