Product Details:
|
| Product Name: | UF508 White Surface Material Anti Corrosion Film | Material: | Fluorine Film+ PET Film |
|---|---|---|---|
| Production Process: | Laminated | Performance: | Weather Resistance |
| Thickness: | 0.07-0.125mm | Width: | 100-1100mm |
| Color: | White | Application: | Tapes, Waterproofing Membranes |
| Printing: | Can Be Customizable | Resistance Years: | More Than 25 Years |
| Highlight: | White Surface Anti Corrosion Film,Weather Resistant Anti Corrosion Film,Waterproofing Membranes Anti Corrosion Film |
||

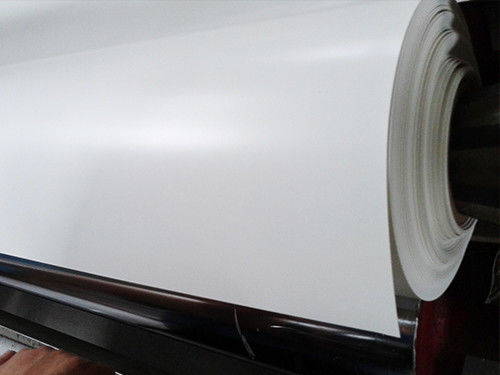

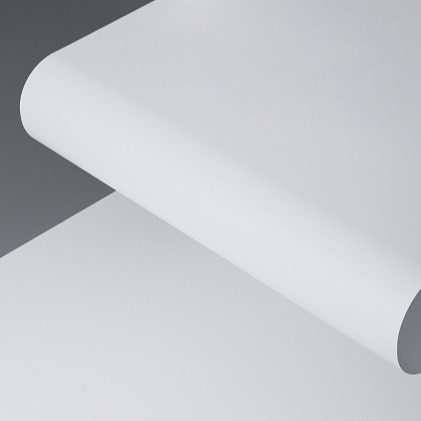

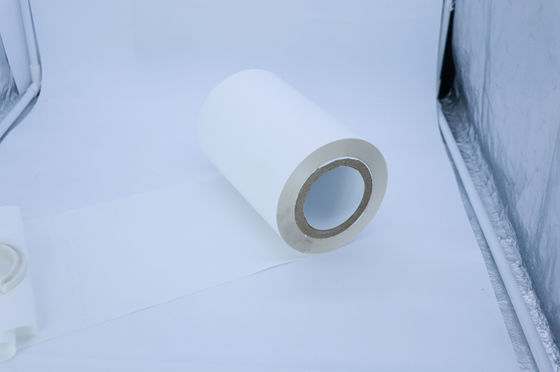

UF508 White Surface Material Anti Corrosion Film
Description:
What's Anti Corrosion Film?
It is a surface material, use PET film laminated with fluorine film, make the film high strength and aging resistance(More than 25 years). Make it it an ideal material for surface material of waterproofing membranes, butyl tapes, underlayment and so on.
Structure:
Inner side, it is PET film (Thickness: 0.05mm or 0.1mm, High Strength, Tear Resistance);
Outer side is white fluorine film (Thickness:0.025mm, Aging or Weather resistance, up to 25 years).
Advantages:
| 1. Excellent properties of anti-aging, more than 25 years |
| 2. UV resistance |
| 3. Reflectivity of over 80%-85% sunlight |
| 4. Chemical corrosion resistance |
| 5. High strength, tear resistance |
Parameter:
| Detection Item | Detection Method | Detection Value | Remark | |
| Thickness | UF508 | GB/T6672-2001 | 0.075mm/0.125mm | / |
| Width | GB/T6673-2001 | / | According to customer needs | |
| Max force | UF508 | GB/T 328.9-2007 | MD:770N | Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm |
| TD:762N | ||||
| Elongation at Break | UF508 | MD:79% | ||
| TD:99% | ||||
| Tensile Strength | UF508 | GB/T 529-2008 | MD:23N | Stretching speed:250mm/min |
| TD:21N | ||||
| Surface Tension | GB/T14216 | ≧42dyn/cm | Dyne Pen Test | |
| Dimensional change rate | UF508 | GB/T 35467-2017 | MD:0% | 90℃&24h |
| TD:0% | ||||
| Water vapor transmission rate | GB/T 21529 | ≦70 g/m2.24h (20um) | 38℃+100%RH | |
| Electrolytic sensor method | ||||
| Flammability grade | UL94 | VTM-0 | White weathering film | |
| Aging test | PCT96 | / | Yellowing index △b≤2.0, | Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h |
| UV300KWh | IEC61215 | The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%. | ||
| DH2000h | IEC61215 | Temperature 85 ℃, humidity 85% R.H., 2000h | ||
| TC400 | IEC61215 | Temperature －40 ℃ ～ 85 ℃, 6h / cycle, 400cycle | ||
