Product Details:
|
| Product Name: | Weather Resistance Tape Application Anti Corrosion Film | Material: | Fluorine Film+ PET Film |
|---|---|---|---|
| Production Process: | Film Blowing And Laminated | Performance: | Aging Resistance |
| Thickness: | 0.09-0.15mm | Width: | 100-1250mm |
| Color: | White | Application: | Tapes, Waterproofing Membranes |
| Printing: | Can Be Customizable | Sample: | Available |
| High Light: | 150 Micron Anti Corrosion Film,Fluorine Anti Corrosion Film,0.15mm polyester film roll |
||

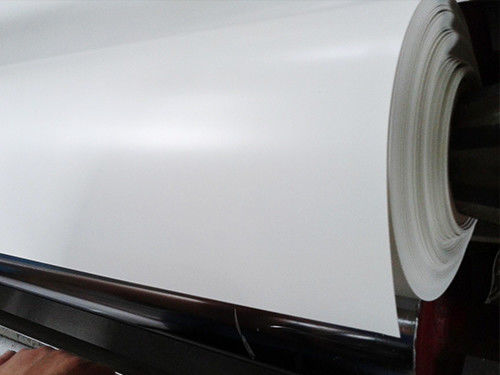

Weather Resistance Tape Application Anti Corrosion Film
Description:
It is a laminated film, composite of HDPE cross laminated film and weather resistance
fluorine film.
The cross laminated film make sure the high strength, high enlongation, tear resistance,
puncture resistance.
The fluorine film is weather resistance, UV resistance, can be explosive for more than
25 years
Combine the advatages of cross laminated film and fluorine film, make it an ideal material
for weather resistance.
Structure:
|
Inner side, it is PET film; Outer side is fluorine film (Aging or Weather resistance). |
Advantages:
| 1. Excellent properties of anti-aging |
| 2. UV resistance |
| 3. Weather resistance |
| 4. Chemical corrosion resistance |
| 5. Resistance to high temperature,heat,humidity and extreme cold |
| 6. Reflectivity of over 85% |
| 7. High strength, tear resistance |
Weather Resistance Tape Application Anti Corrosion Film Application:
| It is used as the surface material: |
| 1. For waterproofing membranes; |
| 2. For weather resistance tapes. |
Parameter:
| Detection Item | Detection Method | Detection Value | Remark | |
| Thickness | UF509 | GB/T6672-2001 | 0.128mm | / |
| Width | GB/T6673-2001 | / | According to customer needs | |
| Max force | UF509 | GB/T 328.9-2007 | MD:324N | Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm |
| TD:348N | ||||
| Elongation at Break | UF509 | MD:406% | ||
| TD:260% | ||||
| Tensile Strength | UF509 | GB/T 529-2008 | MD:47N | Stretching speed:250mm/min |
| TD:43N | ||||
| Surface Tension | GB/T14216 | ≧42dyn/cm | Dyne Pen Test | |
| Dimensional change rate | UF509 | GB/T 35467-2017 | MD:0.96% | 90℃&24h |
| TD:0.77% | ||||
| Water vapor transmission rate | GB/T 21529 | ≦70 g/m2.24h (20um) | 38℃+100%RH | |
| Electrolytic sensor method | ||||
| Flammability grade | UL94 | VTM-0 | White weathering film | |
| Aging test | PCT96 | / | Yellowing index △b≤2.0, | Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h |
| UV300KWh | IEC61215 | The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%. | ||
| DH2000h | IEC61215 | Temperature 85 ℃, humidity 85% R.H., 2000h | ||
| TC400 | IEC61215 | Temperature －40 ℃ ～ 85 ℃, 6h / cycle, 400cycle | ||
Quantity Assurance:
Our Service:
UPASS always firmly believes that quality is the cornerstone of the brand and constantly
pursues and strives for perfection. UPASS has established a product after-sales guarantee
department to provide customers with accurate and fast after-sales service with a professional
and high-quality level.
