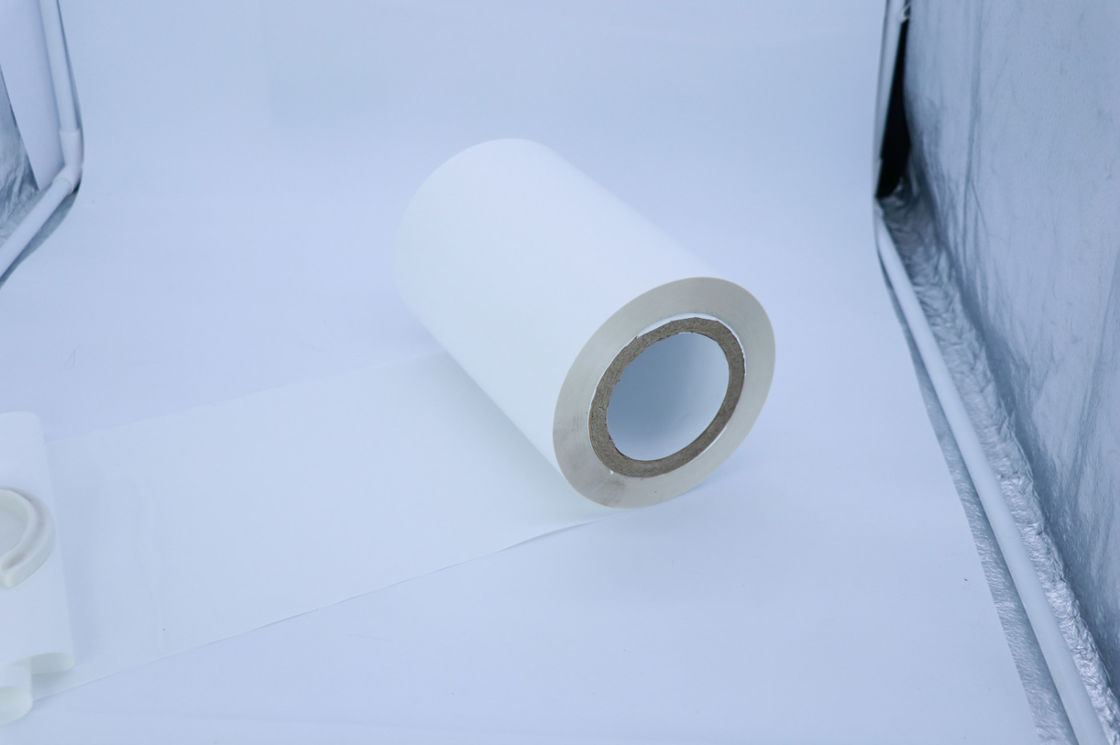

CE White 0.09mm 90 Micron Anti Corrosion Film

CE White 0.09mm 90 Micron Anti Corrosion Film
CE White 0.09mm 90 Micron Anti Corrosion Film

Large Image :  CE White 0.09mm 90 Micron Anti Corrosion Film

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡
Contact Now

CE White 0.09mm 90 Micron Anti Corrosion Film

Description
Product Name: White Color Weather Resistance Anti Corrosion Fluorine Film Material: Fluorine Film+ Cross Laminated Film
Production Process: Film Blowing And Laminated Performance: Aging Resistance
Thickness: 0.09-0.15mm Width: 100-1250mm
Color: White Application: Tapes, Waterproofing Membranes
Printing: Can Be Customizable Sample: Available
Highlight:

0.09mm Anti Corrosion Film

,

90um Anti Corrosion Film

,

0.09mm Cross Laminated Film

         White Color Weather Resistance Anti Corrosion Fluorine Film



Description:



It is specially designed for waterproofing industry, which shall substitute conventional exposed waterproofing material including the film for waterproofing membrane.

It also has cost effectiveness, and lasts over 25years of weather resistance.

CE White 0.09mm 90 Micron Anti Corrosion Film 0



Application:



It is used as the surface material:

1. For waterproofing membranes;

2. For weather resistance tapes.



Weather Resistance Tape Application:

CE White 0.09mm 90 Micron Anti Corrosion Film 1



Aging Resistance Waterproof Membrane Application:

CE White 0.09mm 90 Micron Anti Corrosion Film 2


Parameter:



Detection Item Detection Method Detection Value Remark
Thickness UF509 GB/T6672-2001 0.128mm /
Width GB/T6673-2001 / According to customer needs
Max force UF509 GB/T 328.9-2007 MD:324N Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm
TD:348N
Elongation at Break UF509   MD:406%
TD:260%
Tensile Strength UF509 GB/T 529-2008 MD:47N Stretching speed:250mm/min
TD:43N
Surface Tension GB/T14216 ≧42dyn/cm Dyne Pen Test
Dimensional change rate UF509 GB/T 35467-2017 MD:0.96% 90℃&24h
TD:0.77%
Water vapor transmission rate GB/T 21529 ≦70 g/m2.24h (20um) 38℃+100%RH
Electrolytic sensor method
Flammability grade UL94 VTM-0 White weathering film
Aging test PCT96 / Yellowing index △b≤2.0, Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h
  UV300KWh IEC61215   The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%.
  DH2000h IEC61215   Temperature 85 ℃, humidity 85% R.H., 2000h
  TC400 IEC61215   Temperature －40 ℃ ～ 85 ℃, 6h / cycle, 400cycle


Why UPASS:



CE White 0.09mm 90 Micron Anti Corrosion Film 3



Production Plant:

CE White 0.09mm 90 Micron Anti Corrosion Film 4



CE White 0.09mm 90 Micron Anti Corrosion Film 5

Imported film blowing machine(From Germany):

CE White 0.09mm 90 Micron Anti Corrosion Film 6



Imported laminated machine(From Italy):

CE White 0.09mm 90 Micron Anti Corrosion Film 7



QC Department:

CE White 0.09mm 90 Micron Anti Corrosion Film 8



CE White 0.09mm 90 Micron Anti Corrosion Film 9
