Product Details:
|
| Material: | Aluminum And Anti-aging PET | Color: | Silver/Grey |
|---|---|---|---|
| Thickness: | 0.045/0.07mm | Width: | 1000mm |
| Application: | Used For Waterproofing Products, Adhesive Tapes, Etc. | ||
| High Light: | 0.07mm Anti Corrosion Film,70um Anti Corrosion Film,0.07mm aluminum foil film |
||

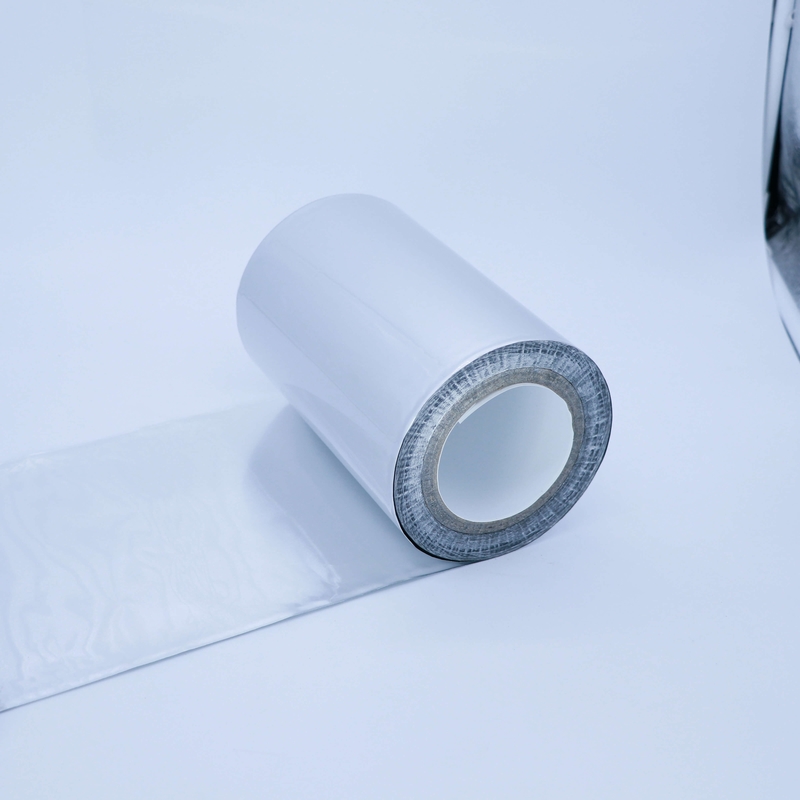

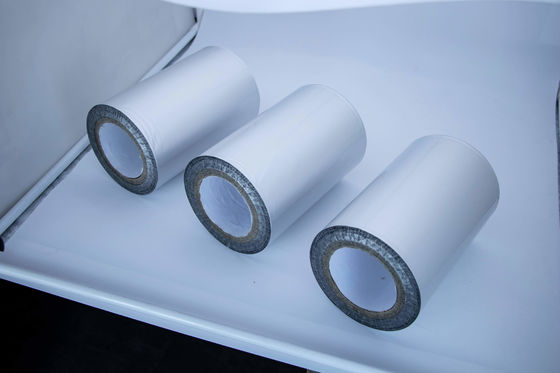

It is composite of modified anti-aging material and aluminum foil, used for the surface of exposed waterproofing membrane.
It is resistant to UV and weather, without efflorescence and layering-defects, prevents the asphalt from sun-exposure due to reflectivity of over 90%..
Anti-aging
| Test item | Test method | Value | Remark | |
| Thickness | 0.045 | GB/T6672-2001 | 0.046 | |
| 0.07 | GB/T6672-2001 | 0.072 | ||
| Width | GB/T6673-2001 | 1000 | As per the requirement | |
| Coil I.D | 350 | As per the requirement | ||
| Period of anti-aging | 0.045 | / | / | 5~10 years |
| 0.07 | / | / | Over 20years | |
| Max.Tensile strength | 0.045 | GB/T 328.9-2007 |
MD:388N TD:354N |
Rectangle Specimen-Width: 25mm, Stretching speed: 100mm/min., Fixture gauge length: 100mm |
| 0.07 |
MD:456N TD:428N |
|||
| Elongation @ Max. tension | 0.045 |
MD:85% TD:78% |
||
| 0.07 |
MD:102% TD:93% |
|||
| Peeling-force | 0.045 | GB/T 529-2008 |
MD:20.4N TD:18.6N |
Stretching speed:250mm/min |
| 0.07 |
MD:23.9N TD:21.5N |
|||
| Dimensional stability | 0.045/0.07 | GB/T 35467-2017 |
MD:0% TD:0% |
90℃ & 24h |
| Aging test | PCT96 | / | Yellowing index △b≤2.0, |
Temperature:121℃, Humidity: 100％, Atmosphere pressure: 2atm, Time: 48h |
| UV300KWh | IEC61215 |
Temperature: 60±5℃, Total exposure dose: 120KWh•m², UVB factor: 3%-10%. |
||
