UV Curing Type Light Release Force HBF Silicone Coated Release Liner

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

UV Curing Type Light Release Force HBF Silicone Coated Release Liner

UV Curing Type Light Release Force HBF Silicone Coated Release Liner
UV Curing Type Light Release Force HBF Silicone Coated Release Liner UV Curing Type Light Release Force HBF Silicone Coated Release Liner UV Curing Type Light Release Force HBF Silicone Coated Release Liner UV Curing Type Light Release Force HBF Silicone Coated Release Liner UV Curing Type Light Release Force HBF Silicone Coated Release Liner

Large Image :  UV Curing Type Light Release Force HBF Silicone Coated Release Liner

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: HBF
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 200 Tons/Month

UV Curing Type Light Release Force HBF Silicone Coated Release Liner

Description
Product Name: UV Curing Type Light Release Force HBF Silicone Coated Release Liner Material: Polypropylene (PP)
Thickness: 0.035-0.15mm Width: 100-1500mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Black, Grey, White, Blue, Green, Etc.

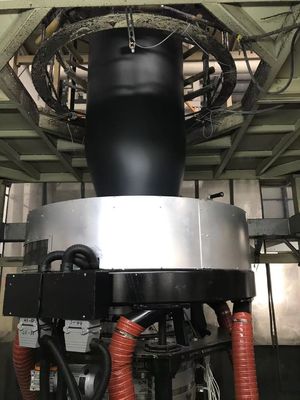

Performance: One Or Two Side Silicone Coated Process: Seven-layers Blowing
Temperature Resistance: 150-180℃ Coating Type: UV Or Thermal Curing
High Light:

HBF Silicone Coated Release Liner

,

UV Curing Silicone Coated Release Liner

,

Waterproofing Silicone Coated Release Liner

     UV Curing Type Light Release Force HBF Silicone Coated Release Liner

Description:

Silicone coated release liner refers to the plastic film or craft/GLASSINE paper which coated

silicon on single or double sides of the surface.



HBF Silicone Coated Release Liner is PP plastic film as carrier, silicon coated on one side or

both side by UV or Thermal curing type depends on the applications.



High Temperature Resistance, can do 150-180℃.





Parameter:



Products Name High Temperature Resistance HBF Silicone Coated Release Liner Spec. 0.04mm*1040
Detection Methed Q/TPXP 1-2013 Date 2021.11.13
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1040±10mm 1041 Qualified
    Thickness 0.04±0.005mm 0.041 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥30 68 Qualified
    MD ≥30 72 Qualified
4

Elongation

(%)

TD

(CD)

≥150 532 Qualified
    MD ≥200 358 Qualified
5 Tensile Strength

TD

(CD)

≥16 23 Qualified
    MD ≥18 36 Qualified
6

Release Force

(N/25mm)

3-5g, 5-10g 8.1 Qualified
7 Subsequent Adhesion
(%)
≥90 93 Qualified



Applications:

♦ Used for self-adhesive waterproof membranes and other self-adhesive products
♦ Used for hot-melt glue tapes/products
♦ Used for butyl adhesive tapes/products

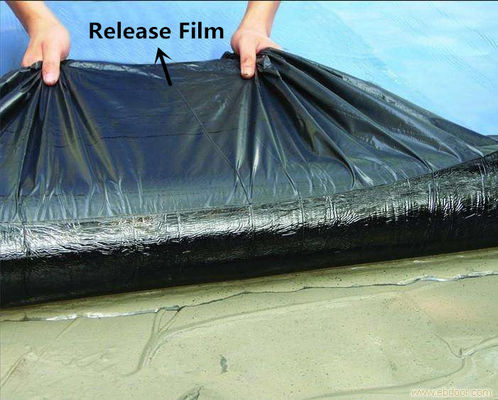

Self-Adhesive Waterproofing Membranes:

UV Curing Type Light Release Force HBF Silicone Coated Release Liner 0

Butyl Tapes:

UV Curing Type Light Release Force HBF Silicone Coated Release Liner 1



Our Parterners:

UV Curing Type Light Release Force HBF Silicone Coated Release Liner 2

Main Brands:

UV Curing Type Light Release Force HBF Silicone Coated Release Liner 3
