High Temperature Resistance HBF Silicone Coated Release Liner

Description
Product Name: High Temperature Resistance HBF Silicone Coated Release Liner Material: Polypropylene (PP)
Thickness: 0.035-0.15mm Width: 100-1500mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Black, Grey, White, Blue, Green, Etc.

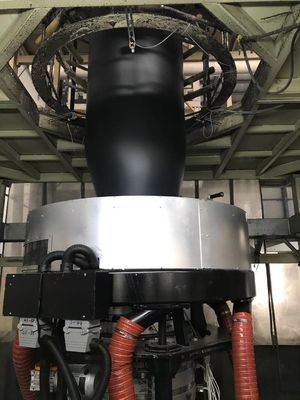

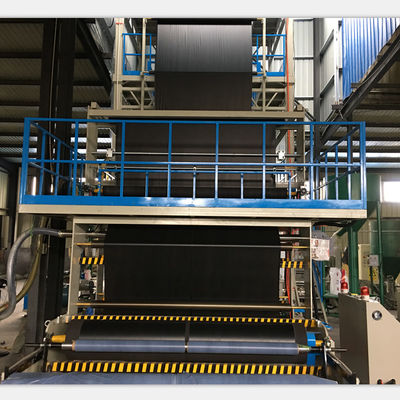

Performance: One Or Two Side Silicone Coated Process: Seven-layers Blowing
Temperature Resistance: 150-180℃ Coating Type: UV Or Thermal Curing
High Light:

HBF Silicone Coated Release Liner

,

1500mm Silicone Coated Release Liner

,

0.15mm Thick Silicone Release Film

     High Temperature Resistance HBF Silicone Coated Release Liner

Description:

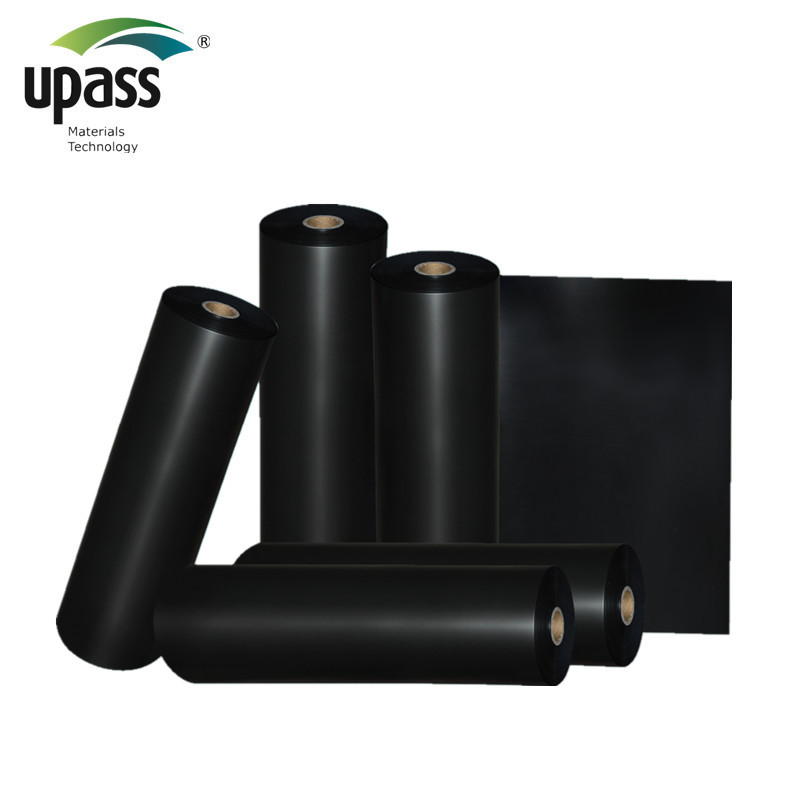

It is PP plastic film as carrier, silicon coated on one side or both side by UV or Thermal

curing type depends on the applications.



High Temperature Resistance, can do 150-180℃.



According to different application , the release force is different, the viscidity of release

product glue is different , to adjust the release force, to make it have the light and stable

release force during peeling. Therefore we have thermal curing and UV curing for silicone

coating due to different release force requirements.



Parameter:



Products Name High Temperature Resistance HBF Silicone Coated Release Liner Spec. 0.04mm*1040
Detection Methed Q/TPXP 1-2013 Date 2021.11.13
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1040±10mm 1041 Qualified
    Thickness 0.04±0.005mm 0.041 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥30 68 Qualified
    MD ≥30 72 Qualified
4

Elongation

(%)

TD

(CD)

≥150 532 Qualified
    MD ≥200 358 Qualified
5 Tensile Strength

TD

(CD)

≥16 23 Qualified
    MD ≥18 36 Qualified
6

Release Force

(N/25mm)

3-5g, 5-10g 8.1 Qualified
7 Subsequent Adhesion
(%)
≥90 93 Qualified



Applications:

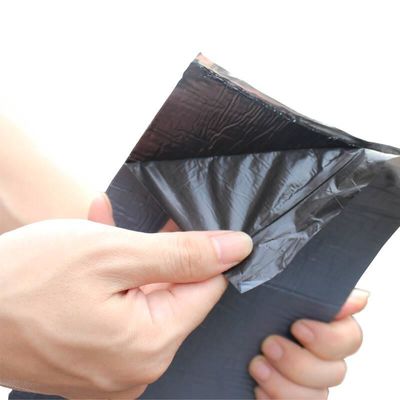

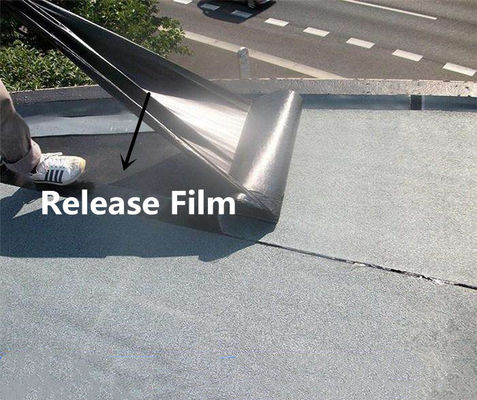

♦ Used for self-adhesive waterproof membranes and other self-adhesive products
♦ Used for hot-melt glue tapes/products
♦ Used for butyl adhesive tapes/products
