UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products

UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products
UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products

Large Image :  UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: HDPE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products

Description
Product Name: UV Curing Type HDPE Silicone Coated Release Liner For Self-adhesive Products Material: HDPE
Thickness: 0.03-0.15mm Width: 100-2000mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Black, Grey, White, Blue, Green, Etc.
Performance: One Or Two Sided Silicone Coated Process: Three-layers Blowing
High Light:

Silicone Coated Hdpe Blown Film

,

UV Curing Hdpe Blown Film

,

Self Adhesive Hdpe Blown Film

UV Curing Type HDPE Silicone Coated Release Liner For Self-adhesive Products

Description:

Silicone coated release liner refers to the film with separative film on the surface.

Silicone coated on either one sided or two sided. The carrier can be PE films, PP films,

PET films and Papers. It will be peeled off when use the self-adhesive products,

such as bitumen waterproof membranes, PVC floor, butyl tapes and other products.



UV Curing Type HDPE Silicone Coated Release Liner For Self-adhesive Products which used plastic

Polyethelene (PE) film as the carrier, make it high tear resistance than PP and PET films.

Use UV curing type for silicon coated, make it high subsequent adhesion(more than 90%)



Parameter:



Products Name PE release film Spec. 0.05mm*530mm
Detection Method Q/TPXP 1-2013 Date 2021.4.21
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 530±10mm 531 Qualified
    Thickness 0.05±0.005mm 0.051 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥30 50 Qualified
    MD ≥30 68 Qualified
4

Elongation

(%)

TD

(CD)

≥150 692 Qualified
    MD ≥200 521 Qualified
5

Release Force

(N/25mm)

3-8g 7 Qualified
6 Subsequent Adhesion
(%)
≥90 94 Qualified
Detection Qualified



Advantages:



1. Easy to construction
2. Low release force, easy peel off when remove the release film
3. High residual adhesiveness rate(≥90%) to prevent the influence of silicon transfer on products
4. Environmental Production technology of solvent and solvent-free products
5. Environmentally Friendly. Can be recycling
6. High tear resistance than PP and PET films

Applications:

♦ Used for self-adhesive waterproof membranes and other waterproof materials, adhesive tapes
♦ Used for cables production, packaging materials
♦ Used for cast materials, electronic applications, ceramic capacitors, window materials. printing, electronic, advertisements

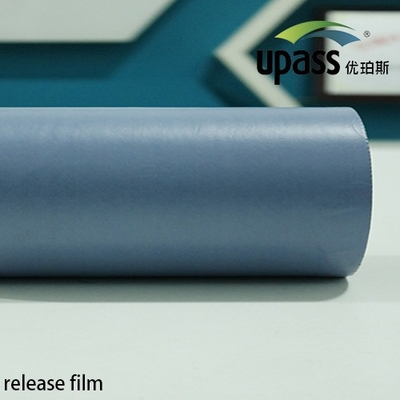

UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products 0

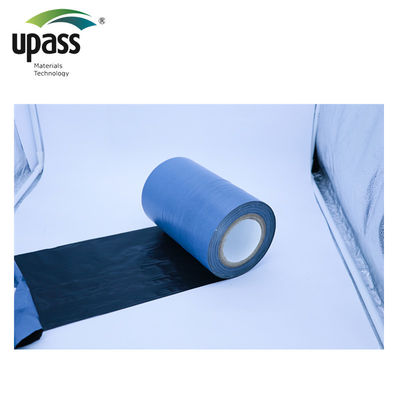

                              UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products 1



Partners:



UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products 2



About Us:



Upass, founded in 2008, now as a governing unit of China Building Waterproof Association,

a vice chairman unit of Professional Committee of China Modified Plastic Association,

an enterprise with Triple A credibility in China Plastic Association, not only assists the

development of the relevant industries, but also upholds the conception of sustainable

development by successive technological innovation. Upass so far has acquired over

100 of intellectual property rights.



Factory Preview:



UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products 3



UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products 4



UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products 5



UV Curing Type HDPE Silicone Coated Release Liner For Self Adhesive Products 6
