UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products

UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products
UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products

Large Image :  UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: PP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

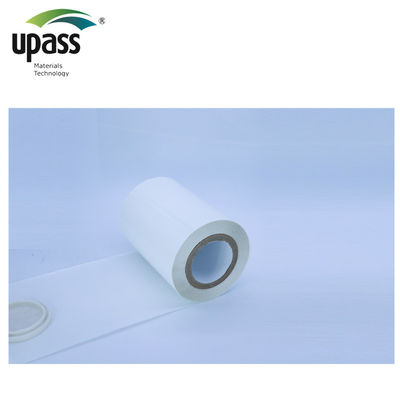

UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products

Description
Product Name: UV Curing Type CPP Silicone Coated Release Liner For Self-adhesive Products Material: Polypropylene (PP)
Thickness: 0.03-0.15mm Width: 100-2000mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Black, Grey, White, Blue, Green, Etc.
Performance: One Or Two Side Silicone Coated Process: Three-layers Blowing
High Light:

CPP Silicone Coated Release Liner

,

UV Curing Silicone Release Liner

,

Three Layers Blowing Hdpe Liner

UV Curing Type CPP Silicone Coated Release Liner For Self-adhesive Products

Description:

Silicone coated release liner refers to the film with separative film on the surface.

Silicone coated on either one sided or two sided. It will be peeled off when use the

self-adhesive products, such as bitumen waterproof membranes, PVC floor, butyl tapes

and other products.



PP UV Silicone Coated Release Liner For Self-adhesive Membrane which used plastic

Polypropylene (PP) film as the carrier, make it high temperature resistance than PE.

Use UV curing type for silicon coated, make it high subsequent adhesion(more than 90%)



Parameter:



Products Name UV Curing PP Silicone Coated Release Liner For Waterproof Membrane Spec. 0.05mm*1040
Detection Methed Q/TPXP 1-2013 Date 2021.3.3
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1040±10mm 1041 Qualified
    Thickness 0.05±0.005mm 0.051 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥30 58 Qualified
    MD ≥30 92 Qualified
4

Elongation

(%)

TD

(CD)

≥150 764 Qualified
    MD ≥200 528 Qualified
5 Tensile Strength

TD

(CD)

≥16 23 Qualified
    MD ≥18 36 Qualified
6

Release Force

(N/25mm)

3-8g, 10-15g 0.06 Qualified
7 Subsequent Adhesion
(%)
≥90 91 Qualified



Advantages:



1. Easy to construction
2. Low release force, easy peel off when remove the release film
3. High residual adhesiveness rate(≥90%) to prevent the influence of silicon transfer on products
4. Environmental Production technology of solvent and solvent-free products
5. Environmentally Friendly. Can be recycling
6. High temperature resistance than PE, can resistance 130-160 degrees

Applications:

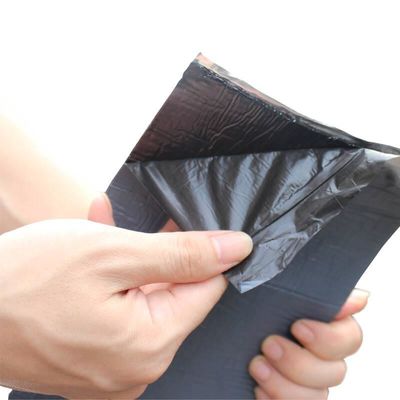

♦ Used for self-adhesive waterproof membranes and other waterproof materials, adhesive tapes
♦ Used for cables production, packaging materials
♦ Used for cast materials, electronic applications, ceramic capacitors, window materials. printing, electronic, advertisements

UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products 0

                              UV Curing Type CPP Silicone Coated Release Liner For Self Adhesive Products 1
