PP UV Silicone Coated Release Liner For Self Adhesive Membrane

PP UV Silicone Coated Release Liner For Self Adhesive Membrane
PP UV Silicone Coated Release Liner For Self Adhesive Membrane

Large Image :  PP UV Silicone Coated Release Liner For Self Adhesive Membrane

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: PP
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

PP UV Silicone Coated Release Liner For Self Adhesive Membrane

Description
Product Name: PP UV Silicone Coated Release Liner For Self-adhesive Membrane Material: Polypropylene (PP)
Thickness: 0.03-0.15mm Width: 100-2000mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Black, Grey, White, Blue, Green, Etc.
Performance: One Or Two Side Silicone Coated Process: Three-layers Blowing
High Light:

PP UV Silicone Coated Release Liner

,

Membrane Silicone Coated Release Liner

,

Polypropylene Silicone Coated Film

     PP UV Silicone Coated Release Liner For Self-adhesive Membrane

Description:

Silicone coated release liner refers to the film with separative film on the surface.

Silicone coated on either one sided or two sided. It will be peeled off when use the

self-adhesive products, such as bitumen waterproof membranes, PVC floor, butyl tapes

and other products.



According to different usage , the release force is different, the viscidity of release

product glue is different , to adjust the release force, to make it have the light and stable

release force during peeling. There are thermal curing and UV curing for silicone coating

due to different release force requirements.



PP UV Silicone Coated Release Liner For Self-adhesive Membrane which used plastic

Polypropylene (PP) film as the carrier, make it high temperature resistance than PE.

Use UV curing type for silicon coated, make it high subsequent adhesion(more than 90%)



Parameter:



Products Name UV Curing PP Silicone Coated Release Liner For Waterproof Membrane Spec. 0.05mm*1040
Detection Methed Q/TPXP 1-2013 Date 2021.3.3
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1040±10mm 1041 Qualified
    Thickness 0.05±0.005mm 0.051 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥30 58 Qualified
    MD ≥30 92 Qualified
4

Elongation

(%)

TD

(CD)

≥150 764 Qualified
    MD ≥200 528 Qualified
5 Tensile Strength

TD

(CD)

≥16 23 Qualified
    MD ≥18 36 Qualified
6

Release Force

(N/25mm)

3-8g, 10-15g 0.06 Qualified
7 Subsequent Adhesion
(%)
≥90 91 Qualified



Applications:

♦ Used for self-adhesive waterproof membranes and other waterproof materials, adhesive tapes
♦ Used for cables production, packaging materials
♦ Used for cast materials, electronic applications, ceramic capacitors, window materials. printing, electronic, advertisements

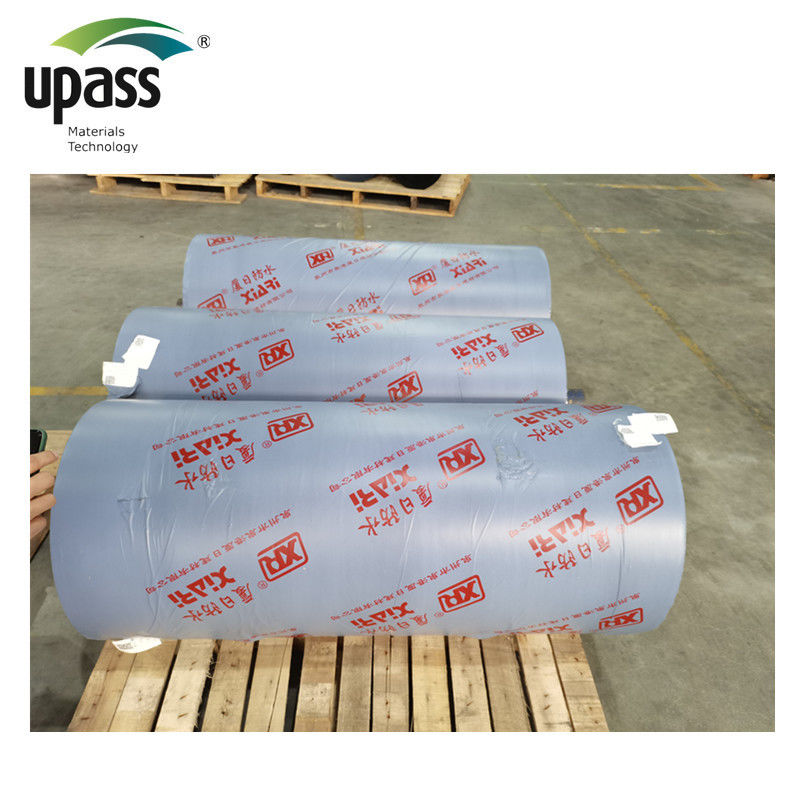

PP UV Silicone Coated Release Liner For Self Adhesive Membrane 0

                              PP UV Silicone Coated Release Liner For Self Adhesive Membrane 1
