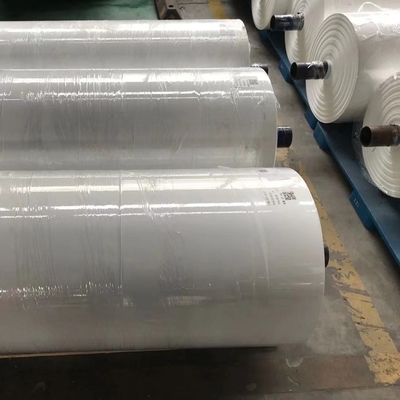

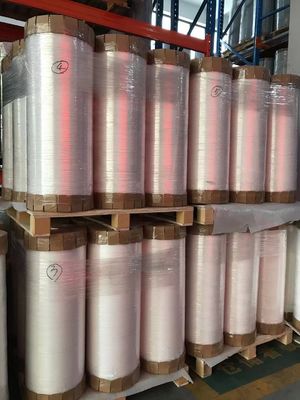

Bitumen Application PP UV Curing Type Silicone Coated Release Liner

Bitumen Application PP UV Curing Type Silicone Coated Release Liner
Bitumen Application PP UV Curing Type Silicone Coated Release Liner Bitumen Application PP UV Curing Type Silicone Coated Release Liner

Large Image :  Bitumen Application PP UV Curing Type Silicone Coated Release Liner

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: Release Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

Bitumen Application PP UV Curing Type Silicone Coated Release Liner

Description
Features: High Temperature Resistance Product Name: Bitumen Application PP UV Curing Type Silicone Coated Release Liner
Material: PP Thickness: 0.03-0.15mm
Width: 100-2000mm Application: Used For Waterproofing Membranes, Adhesive Tapes,etc.
Color: Black, White, Gray, Etc. Performance: Single Or Double Side Silicone Coated
Process: Film Blowing/Casting Soft: Soft
High Light:

Bitumen Silicone Release Film

,

PP UV Curing Silicone Coated Film

,

0.03MM Silicone Coated Release Liner

  Bitumen Application PP UV Curing Type Silicone Coated Release Liner

Description:



It is PP release film, as PP film carrier and coated one side or two side solvent silicon,

use UV curing type, make it easy to peel off from adhesive products when construction.

It is high temperature resistance, 130-160 degrees, higher than PE films.



It is widely use as release material for self-adhesive waterproofing membranes, butyl tapes

and other self-adhesive products. We also can do HDPE, LDPE, PET release film.



It is PP release film, as PP film carrier and coated one side or two side solvent silicon, use UV curing type, make it easy to peel off from adhesive products when construction.

It is high temperature resistance, 130-160 degrees, higher than PE films. It is widely use as release material for self-adhesive waterproofing membranes, butyl tapes and other self-adhesive products.

We also can do HDPE, LDPE, PET release film.



Bitumen Application PP UV Curing Type Silicone Coated Release Liner 0




Parameter:



Products Name UV Curing PP Silicone Coated Release Liner For Waterproof Membrane Spec. 0.05mm*1040
Detection Methed Q/TPXP 1-2013 Date 2021.3.3
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1040±10mm 1041 Qualified
    Thickness 0.05±0.005mm 0.051 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥30 58 Qualified
    MD ≥30 92 Qualified
4

Elongation

(%)

TD

(CD)

≥150 764 Qualified
    MD ≥200 528 Qualified
5 Tensile Strength

TD

(CD)

≥16 23 Qualified
    MD ≥18 36 Qualified
6

Release Force

(N/25mm)

3-8g, 10-15g 0.06 Qualified
7 Subsequent Adhesion
(%)
≥90 91 Qualified



Features:



► High temperature resistance, up to 160℃
► Easy peel off when remove the release film
► High residual adhesiveness rate(≥90%) to prevent the influence of silicon transfer on products
► Make products' surface more flat



Application:



Release Film for Butyl Tapes



Bitumen Application PP UV Curing Type Silicone Coated Release Liner 1



Bitumen Application PP UV Curing Type Silicone Coated Release Liner 2



Release Film For Self-adhesive Waterproof Membranes:



Bitumen Application PP UV Curing Type Silicone Coated Release Liner 3



Bitumen Application PP UV Curing Type Silicone Coated Release Liner 4

About Upass:



Bitumen Application PP UV Curing Type Silicone Coated Release Liner 5



Bitumen Application PP UV Curing Type Silicone Coated Release Liner 6



Upass, founded in 2008, is headquartered in New Materials Industrial Park, Qingpu District, Shanghai, and has two production bases in Taicang, Jiangsu and Chenzhou, Hunan. Now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights.
UPASS will spare no effort in strengthening and improving the production, sales networks, service system to return the trust and support of customers, and look forward to working with you in a win-win future.
