UV Curing PP Silicone Coated Release Liner For Waterproof Membrane

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

UV Curing PP Silicone Coated Release Liner For Waterproof Membrane

UV Curing PP Silicone Coated Release Liner For Waterproof Membrane
UV Curing PP Silicone Coated Release Liner For Waterproof Membrane UV Curing PP Silicone Coated Release Liner For Waterproof Membrane UV Curing PP Silicone Coated Release Liner For Waterproof Membrane UV Curing PP Silicone Coated Release Liner For Waterproof Membrane

Large Image :  UV Curing PP Silicone Coated Release Liner For Waterproof Membrane

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

UV Curing PP Silicone Coated Release Liner For Waterproof Membrane

Description
Product Name: UV Curing PP Silicone Coated Release Liner For Waterproof Membrane Material: Polypropylene (PP)
Thickness: 0.03-0.15mm Width: 100-2000mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Red, Black, Grey, White, Blue, Green, Etc.
Performance: Single Or Double Side Silicone Coated Process: Three-layers Blowing/Casting
High Light:

UV Curing Silicone Coated Release Liner

,

Waterproof Membrane Pet Release Film

,

Adhesive Tapes Embossed Polyethylene Film

     UV Curing PP Silicone Coated Release Liner For Waterproof Membrane

Description:

UV Curing PP Silicone Coated Release Liner For Waterproof Membrane
Material: Polypropylene (PP) (Also can do PE, PET ect.)
Thickness: 0.03-0.15mm(Be customized)
Width: 100-2000(Other can be customized)
Application: Release Liner for Waterproof Membranes and Butyl Tapes, Foam Tapes, and Acrylic Tapes

Silicon type: Solvent Silicon
Curing Type: UV Curing
Release Force: 3-8g, 10-15g or as customized
Subsequent Adhesion: More than 90%

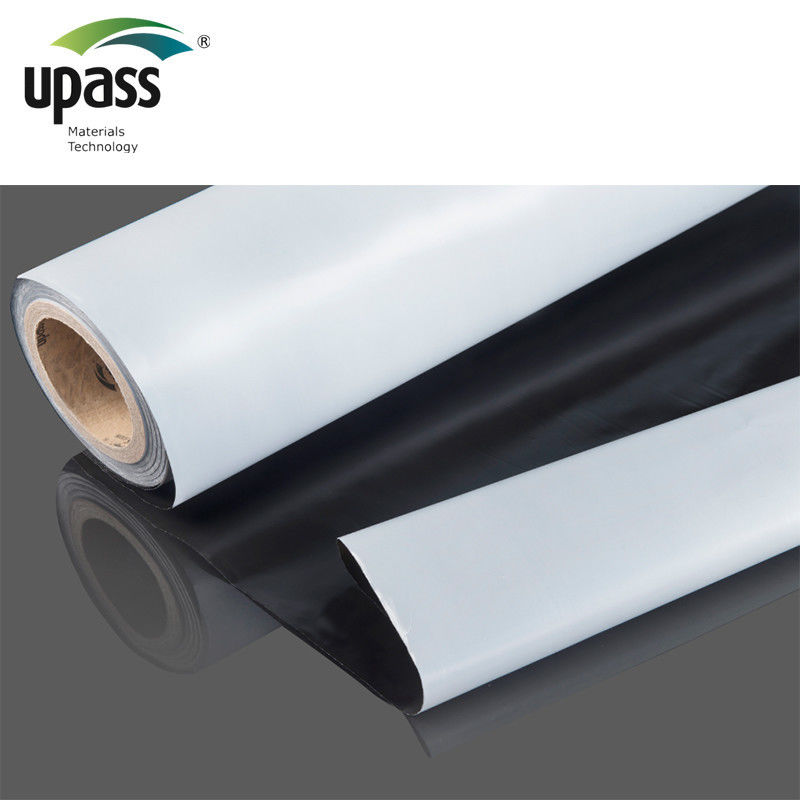

PP release liner is a pleastic release film which made of Polypropylene film(Also called PP) as carrier, silicon coated on either one or two-sided releases options.

Use UV curing type for silicon coated, which made high subsequent adhesion, can make sure the adhesion of customers's self-adhesion products.



UV Curing PP Silicone Coated Release Liner For Waterproof Membrane 0



Parameter:



Products Name UV Curing PP Silicone Coated Release Liner For Waterproof Membrane Spec. 0.05mm*1040
Detection Methed Q/TPXP 1-2013 Date 2021.3.3
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1040±10mm 1041 Qualified
    Thickness 0.05±0.005mm 0.051 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥30 58 Qualified
    MD ≥30 92 Qualified
4

Elongation

(%)

TD

(CD)

≥150 764 Qualified
    MD ≥200 528 Qualified
5 Tensile Strength

TD

(CD)

≥16 23 Qualified
    MD ≥18 36 Qualified
6

Release Force

(N/25mm)

3-8g, 10-15g 0.06 Qualified
7 Subsequent Adhesion
(%)
≥90 91 Qualified



Advantages:



1. Easy to construction
2. Low release force, easy peel off when remove the release film
3. High residual adhesiveness rate(≥90%) to prevent the influence of silicon transfer on    products
4. Environmental Production technology of solvent and solvent-free products
5. Environmentally Friendly. Can be recycling
6. High temperature resistance than PE, can resistance 130-160 degrees




Application:



Release Film for Butyl Tapes



UV Curing PP Silicone Coated Release Liner For Waterproof Membrane 1



                        UV Curing PP Silicone Coated Release Liner For Waterproof Membrane 2

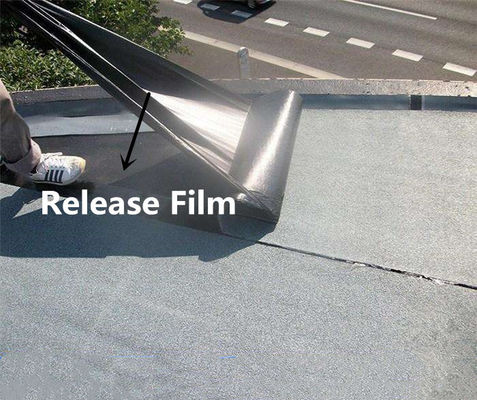

Release Film For Self-adhesive Waterproof Membranes:



UV Curing PP Silicone Coated Release Liner For Waterproof Membrane 3



UV Curing PP Silicone Coated Release Liner For Waterproof Membrane 4



FAQ:



1).Can you offer free samples?

Yes, we provide free samples, but we usually don't pay for freights.



2).Can you support customization?

Sure, OEM&ODM are available.



3).Are you factory or trading company?

We have two work pants in Taicang Jiangsu and Chenzhou Hunan, we also have a selling office in Shanghai.



4).What's your payment terms?

Usually we prefer T/T, 30% deposit and 70% balance before shipmen. Anyway, T/T, L/C, Western Union, Money Gram, are acceptable.
