PP Silicone Coated Release Liner For Waterproof Membrane

PP Silicone Coated Release Liner For Waterproof Membrane
PP Silicone Coated Release Liner For Waterproof Membrane PP Silicone Coated Release Liner For Waterproof Membrane PP Silicone Coated Release Liner For Waterproof Membrane

Large Image :  PP Silicone Coated Release Liner For Waterproof Membrane

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

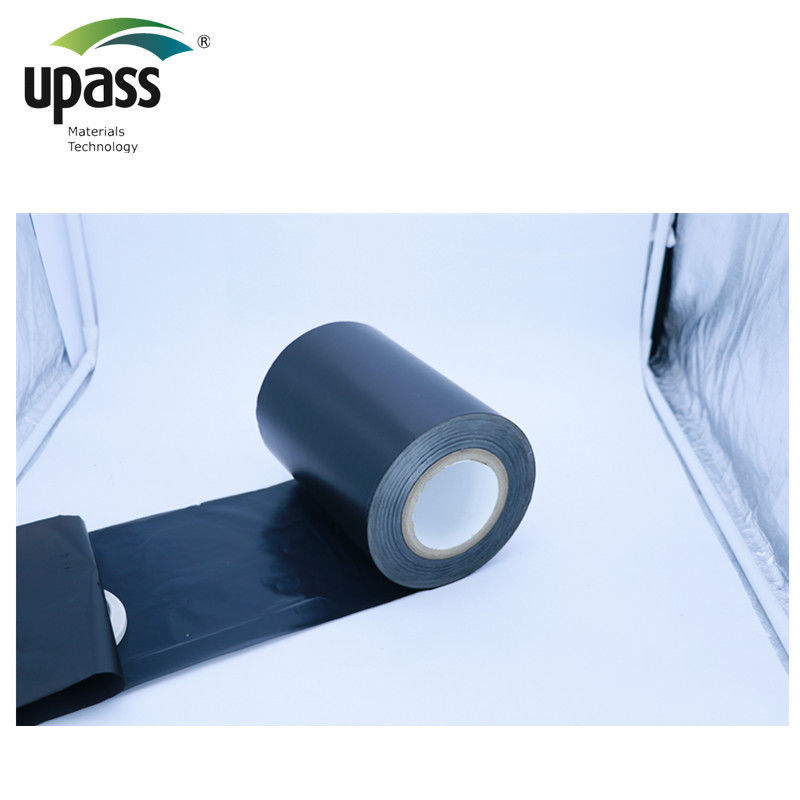

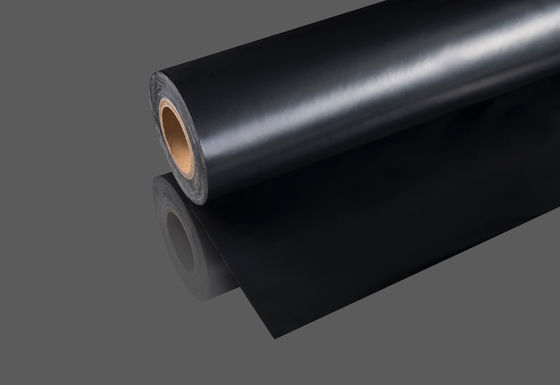

PP Silicone Coated Release Liner For Waterproof Membrane

Description
Product Name: PP Silicone Coated Release Liner For Waterproof Membrane Material: Polypropylene (PP)
Thickness: 0.03-0.15mm Width: 100-2000mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Red, Black, Grey, White, Blue, Green, Etc.
Performance: Single Or Double Side Silicone Coated Process: Three-layers Blowing/Casting
High Light:

Waterproof Silicone Coated Release Liner

,

PP Silicone Coated Release Liner

,

Blowing Silicone Coated Release Liner

              PP Silicone Coated Release Liner For Waterproof Membrane

Description:

PP Silicone Coated Release Liner For Waterproof Membrane
Material: Polypropylene (PP) (Also can do PE, PET ect.)
Thickness: 0.03-0.15mm(Be customized)
Width: 100-2000(Other can be customized)
Application: Release Liner for Waterproof Membranes and Butyl Tapes, Foam Tapes, Acrylic Tapes

Silicon type: Solvent Silicon
Curing Type: Thermal or UV Curing
Release Force: 10-20g
Subsequent Adhesion: More than 80%



PP release liner is a pleastic release film which made of Polypropylene film(Also called PP) as carrier, silicon coated on either one or two-sided releases options.
This highly conformable product bonds well to most surfaces over a wide range of temperatures and release film is heavily used in consumer products worldwide.



PP Silicone Coated Release Liner For Waterproof Membrane 0



Parameter:



Products Name PP Silicone Coated Release Liner For Waterproof Membrane Spec. 0.05mm*1040
Detection Methed Q/TPXP 1-2013 Date 2021.3.3
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1040±10mm 1041 Qualified
    Thickness 0.05±0.005mm 0.051 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥30 58 Qualified
    MD ≥30 92 Qualified
4

Elongation

(%)

TD

(CD)

≥150 764 Qualified
    MD ≥200 528 Qualified
5 Tensile Strength

TD

(CD)

≥16 23 Qualified
    MD ≥18 36 Qualified
6

Release Force

(N/25mm)

10-20g 0.134 Qualified
7 Subsequent Adhesion
(%)
Grey side≥80 82 Qualified



Advantages:



1. Easy to construction
2. Low release force, easy peel off when remove the release film
3. High residual adhesiveness rate(≥80%) to prevent the influence of silicon transfer on    products(We also can do UV curing type, adhesiveness rate can be done more than 90%)
4. Environmental Production technology of solvent and solvent-free products
5. Environmentally Friendly. Can be recycling
6. High temperature resistance than PE, can resistance 130-160 degrees




Application:



Release Film for Butyl Tapes



PP Silicone Coated Release Liner For Waterproof Membrane 1



                        PP Silicone Coated Release Liner For Waterproof Membrane 2

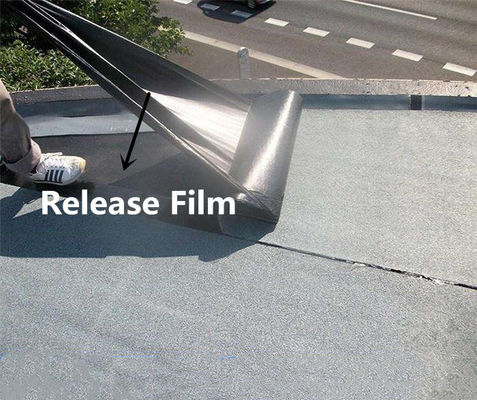

Release Film For Self-adhesive Waterproof Membranes:



PP Silicone Coated Release Liner For Waterproof Membrane 3



PP Silicone Coated Release Liner For Waterproof Membrane 4
