Product Details:
|
Product Name: | UV Curing Red Silicone Coated Release Liner For Foam Tapes | Material: | High Density Polyethylene (HDPE) |
---|---|---|---|
Thickness: | 0.07-0.15mm | Width: | 100-1100mm |
Application: | Used For Foam Tapes, Acrylic Tapes, DS Tapes | Color: | Red, Black, Grey, White, Blue, Green, Etc. |
Performance: | Double Side Silicone Coated(UV Curing) | Process: | Three-layers Blowing |
Highlight: | UV Curing Silicone Coated Release Liner,100mm Silicone Coated Release Liner,ISO Silicone Coated Release Liner |
Material: HDPE
Thickness: 0.07-0.15mm
Width: 110-1100(Other can be customized)
Application: Foam Tapes, Acrylic Tapes
Curing Type: Double sides UV Curing
Release Force: 5-10g/10-20g
Subsequent Adhesion: More than 90%
A release liner is a pleastic release film which made of PE, PP or PET film as carrier,
silicon coated on either one or two-sided releases options.
The film is uniform coated and very smooth and clean without wrinkles/tears/granules/
bubbles/pinholes or other defects.

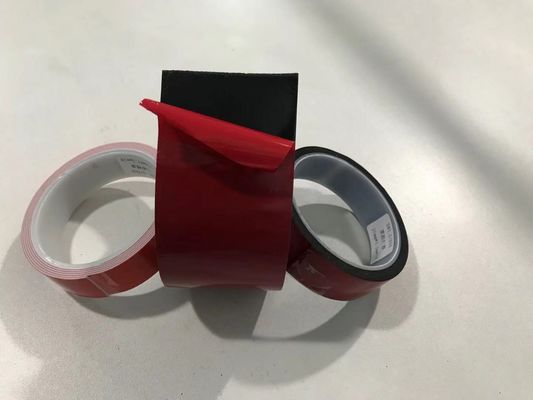

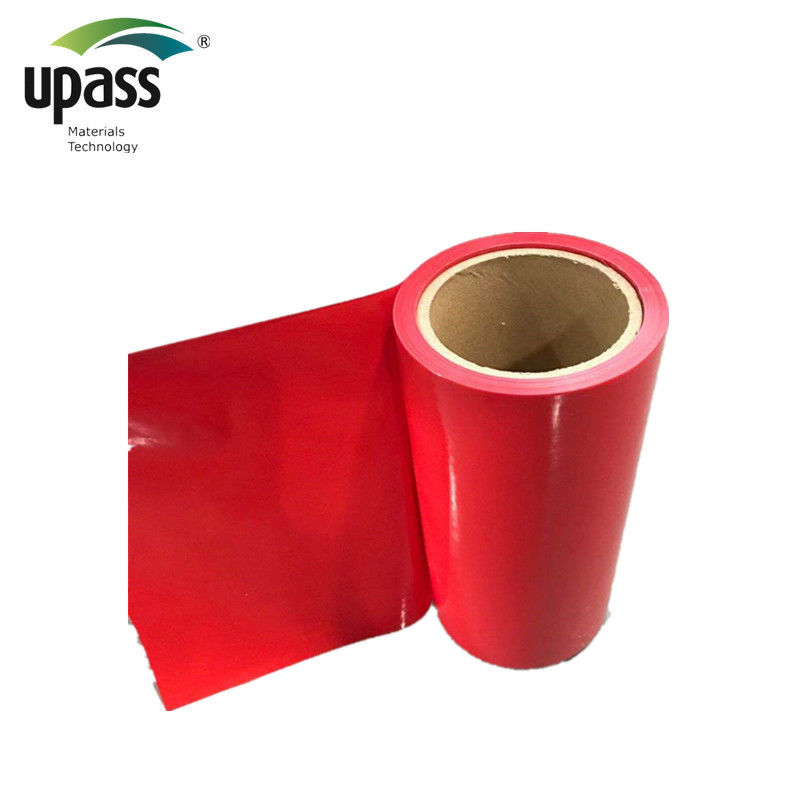

UV Curing Red Silicone Coated Release Liner For Foam Tapes, it is a two-sided release liner,
double sides are UV curing, the subsequent adhesion are more than 90%, it is special design
for HM adhesive or acrylic adhesive double side foam tapes.
Applications:
♦ Used for HM-adhesive tapes |
♦ Used for acrylic foam tapes |
♦ Used for double side tapes |

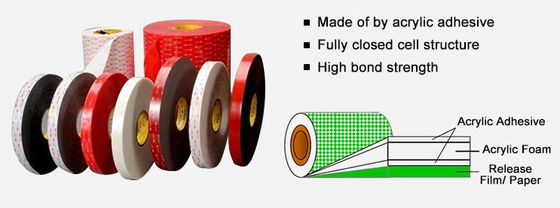

For kinds of DS self-adhesive tapes:
Name | UV Curing Red Silicone Coated Release Liner For Foam | Specification | 0.07mm*1050mm | ||
Testing Method | Q/TPXP 1-2013 | Date | 2020.8.5 | ||
NO. | Testing Item | Factory Requirement | Testing Result | Conclusion | |
1 | Appearance | No bubble , no broken | Qualified | Qualified | |
2 |
Specification (mm) |
Width | 1050±5mm | 1052 | Qualified |
Thickness | 0.07±0.005mm | 0.072 | Qualified | ||
3 |
Max.F (N/50mm) |
TD | ≥30 | 102 | Qualified |
MD | ≥30 | 114 | Qualified | ||
4 |
Elongation@Break (%) |
TD | ≥150 | 864 | Qualified |
MD | ≥200 | 726 | Qualified | ||
5 | Tensile Strength(MPa) | TD | ≥16 | 28 | Qualified |
MD | ≥18 | 32 | Qualified | ||
6 |
Release Force (N/25mm) |
Outer Side: 0.142 | Qualified | ||
Inner Side: 0.062 | |||||
7 | Subsequent Adhesion (%) |
≥90 | 92 | Qualified |
