Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner

Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner
Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner

Large Image :  Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner

Description
Features: High Temperature Resistance Product Name: Die Cut Application PET Silicone Coated Release Liner
Material: PET Thickness: 0.012-0.15mm
Width: 100-2000mm Application: Used For Waterproofing Membranes, Adhesive Tapes,etc.
Color: Transparent, White, Gray, Etc. Performance: Single Or Double Side Silicone Coated
Process: Extrusion Casting Soft: Hard Than HDPE Film
High Light:

0.012mm Silicone Coated Release Liner

,

12 Micron Silicone Coated Release Liner

,

0.012mm silicone coated film

              Die Cut Application PET Silicone Coated Release Liner

Description:



Product Name
Die Cut Application PET Silicone Coated Release Liner
Color
Transparent, Milky White or as your request
Thickness(um)
12/25/30/36/50/75/100/125/188/250 or As Your Request.
Release Force
5g-8g or As Your Request
Residual Rate
More than 90%
Usage
Tape and Die-cutting,Lable and Printing,Carbon Material Application,Medical Sanitary,Optics Application.
QC
Strict quality control under ISO9001. Our QC department strictly carries on a precise process to ensure best quality.
Certificates
ROHS; CQC; SGS; ISO9001:2015;
Sample
Free samples & Freight Charges will be returned after deal.
Package
Roll is packed with air bubble film , on fumigation wooden pallet.
Payment
T/T, L/C
Others
Special size,color can be made according to customer's requirement.

PET release film is also called PET silicone oil film. A layer of silicone oil is applied on the

surface of the PET film to reduce the adhesion of the PET film surface and achieve the release effect.

Can be divided into single-sided release film and double-sided release film.

According to the release force, it can be divided into a light release film, a medium release film, and a heavy release film.

Our company is equipped with a quick slitting machine that can be divided and sliced according to customer specifications.

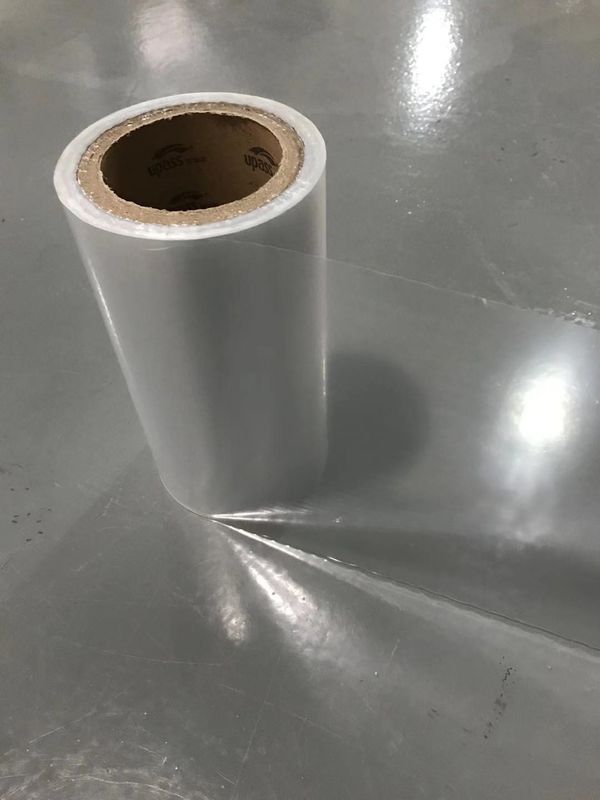

Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner 0



Features:



► High temperature resistance, up to 180℃
► Easy peel off when remove the release film
► High residual adhesiveness rate(≥90%) to prevent the influence of silicon transfer on products
► Make products' surface more flat



Applications:



♦ Used for self-adhesive waterproof membranes and other waterproof materials, adhesive tapes
♦ Used for cables production, packaging materials
♦ Used for cast materials, electronic applications, ceramic capacitors, window materials. printing, electronic, advertisements



Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner 1





Phameter:



Products Name PET release film Spec. 0.023mm*1000mm
Detection Methed Q/TPXP 1-2013 Date 2020.9.26
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1000±5mm 1001 Qualified
    Thickness 0.023±0.005mm 0.023 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥150 192 Qualified
    MD ≥150 156 Qualified
4

Elongation

(%)

TD

(CD)

≥40 87 Qualified
    MD ≥40 56 Qualified
5 Tensile Strength(Mpa)

TD

(CD)

≥30 124 Qualified
    MD ≥30 108 Qualified
6 Subsequent Adhesion % ≥90 92 Qualified
Detection Qualified



FAQ:



1.What's the payment terms and trade terms for new customers?
Payment terms:30% T/T desposit payment in advance, balance 70% before shipment or against copy of B/L. L/C are acceptable.

2. Are you factory or trading company?
We are a manufacturers with two production plants in Jiangsu and Hunan.

3. What about the lead time?
Within 2 weeks, if the order quantity is large, the time will be more than 20 days.

4.May I get some free sample for trial?
As our company policy, we are able to provide free samples for trial and the freight paid by receiver.Just inform us the spec you need and your courier account , we'll make arrangement in soon.



Quanlity Control


1)Before the order can be confirmed finally,we would strictly check the material ,color,

    dimension of the sample step by step.


2)We salesman ,also as a order follower,would trace every phase of production from the

    beginning.

3)We have a QC team ,every product would be checked by them before packed.

4)We would try our best to help clients solve problems when they occurred.




After Sales Service:


Any small problem happening in our products, will be solved at the most prompt time.

We always offer relative technical support. Quick response, all your inquire will be replied

within 24 hours.

If you want to know more about our
Die Cut Application PET Silicone Coated Release Liner,

welcome to contact us and visit our factory and showroom.

Cherry at your service in 24 hours ^_^


give you a best price


To order more the price will be low


save your Precious time for Purchase



Exhibition:



Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner 2

Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner 3



Packaging And Shipment:



Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner 4

Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner 5

Die Cut PET 0.012mm 12 Micron Silicone Coated Release Liner 6
