150 Micron 0.15mm Single Silicone Coated Release Liner

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

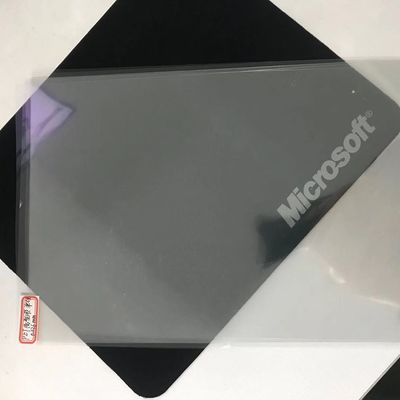

150 Micron 0.15mm Single Silicone Coated Release Liner

150 Micron 0.15mm Single Silicone Coated Release Liner
150 Micron 0.15mm Single Silicone Coated Release Liner

Large Image :  150 Micron 0.15mm Single Silicone Coated Release Liner

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

150 Micron 0.15mm Single Silicone Coated Release Liner

Description
Product Name: Single Silicone Coated PET Release Liner Material: PET
Thickness: 0.012-0.15mm Width: 100-2000mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Transparent, White, Gray, Etc.
Performance: Single Or Double Side Silicone Coated Process: Extrusion Casting
High Light:

upass Silicone Coated Release Liner

,

Single Silicone Coated Release Liner

,

0.012mm silicone release liner

                       Single Silicone Coated PET Release Liner

Description:

PET release film is also called PET silicone oil film. A layer of silicone oil is applied on the

surface of the PET film to reduce the adhesion of the PET film surface and achieve the release effect.

Can be divided into single-sided release film and double-sided release film.

According to the release force, it can be divided into a light release film, a medium release film, and a heavy release film.

Our company is equipped with a quick slitting machine that can be divided and sliced according to customer specifications.

150 Micron 0.15mm Single Silicone Coated Release Liner 0

150 Micron 0.15mm Single Silicone Coated Release Liner 1



Features:



► High temperature resistance, up to 180℃
► Easy peel off when remove the release film
► High residual adhesiveness rate(≥90%) to prevent the influence of silicon transfer on

     products
► Make products' surface more flat



Applications:



♦ Used for self-adhesive waterproof membranes and other waterproof materials, adhesive tapes
♦ Used for cables production, packaging materials
♦ Used for cast materials, electronic applications, ceramic capacitors, window materials. printing, electronic, advertisements

150 Micron 0.15mm Single Silicone Coated Release Liner 2



Phameter:



Products Name PET release film Spec. 0.023mm*1000mm
Detection Methed Q/TPXP 1-2013 Date 2020.9.26
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1000±5mm 1001 Qualified
    Thickness 0.023±0.005mm 0.023 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥150 192 Qualified
    MD ≥150 156 Qualified
4

Elongation

(%)

TD

(CD)

≥40 87 Qualified
    MD ≥40 56 Qualified
5 Tensile Strength(Mpa)

TD

(CD)

≥30 124 Qualified
    MD ≥30 108 Qualified
6 Subsequent Adhesion % ≥90 92 Qualified
Detection Qualified



FAQ:



150 Micron 0.15mm Single Silicone Coated Release Liner 3



About Upass:



Upass, founded in 2008, is headquartered in New Materials Industrial Park, Qingpu District, Shanghai, and has two production bases in Taicang, Jiangsu and Chenzhou, Hunan. Now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights.
UPASS will spare no effort in strengthening and improving the production, sales networks, service system to return the trust and support of customers, and look forward to working with you in a win-win future.

150 Micron 0.15mm Single Silicone Coated Release Liner 4



150 Micron 0.15mm Single Silicone Coated Release Liner 5



Company History:



150 Micron 0.15mm Single Silicone Coated Release Liner 6
