ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film

ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film
ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film

Large Image :  ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film

Description
Product Name: Transparent PET Silicone Coated Release Liner Material: PET
Thickness: 0.012-0.15mm Width: 100-2000mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Transparent, White, Gray, Etc.
Performance: Single Or Double Side Silicone Coated Process: Extrusion Casting
High Light:

0.012mm Silicone Coated PET Release Film

,

0.15mm Silicone Coated PET Release Film

,

0.012mm hdpe liner

                 Transparent PET Silicone Coated Release Liner

Description:

PET release film is also called PET silicone oil film. A layer of silicone oil is applied on

the surface of the PET film to reduce the adhesion of the PET film surface and achieve

the release effect.

Can be divided into single-sided release film and double-sided release film.

According to the release force, it can be divided into a light release film, a medium release

film, and a heavy release film.

Our company is equipped with a quick slitting machine that can be divided and sliced

according to customer specifications.

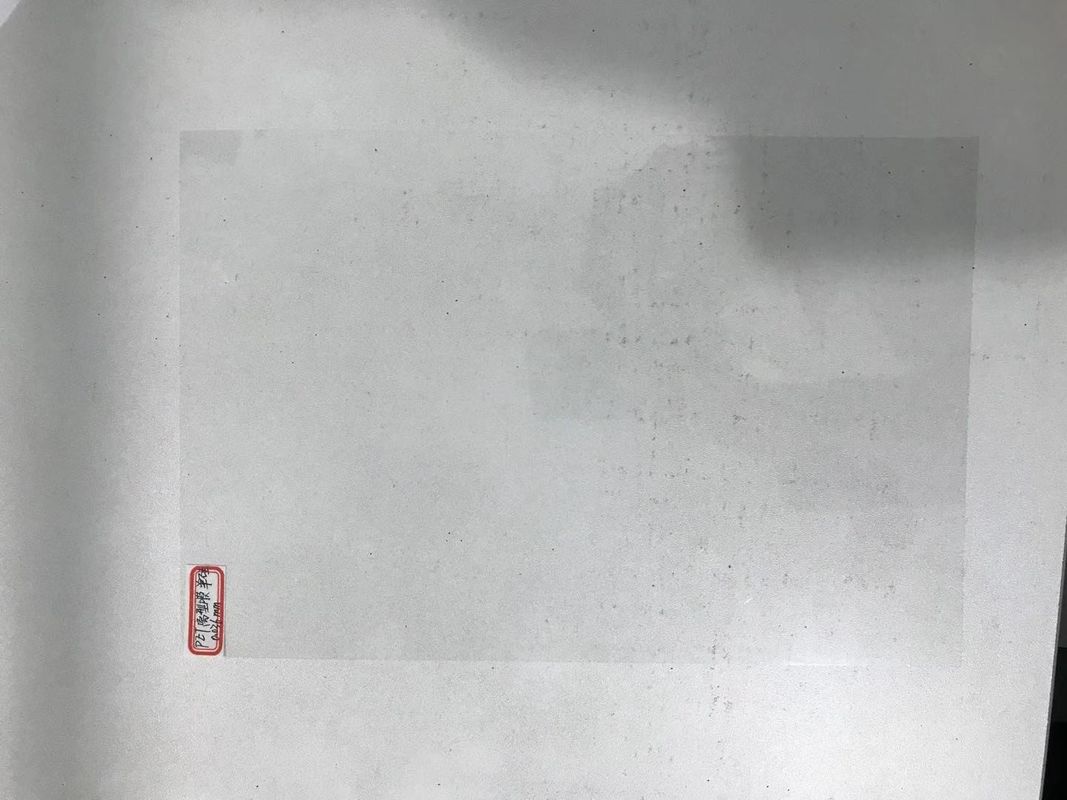

ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film 0





Features:



► High temperature resistance, up to 180℃
► Easy peel off when remove the release film
► High residual adhesiveness rate(≥90%) to prevent the influence of

     silicon transfer on products
► Make products' surface more flat



Applications:



♦ Used for self-adhesive waterproof membranes and other waterproof materials,

   adhesive tapes
♦ Used for cables production, packaging materials
♦ Used for cast materials, electronic applications, ceramic capacitors, window materials.

   printing, electronic, advertisements



ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film 1



Phameter:



Products Name PET release film Spec. 0.023mm*1000mm
Detection Methed Q/TPXP 1-2013 Date 2020.9.26
NO. Item Factory Requirement Detection Value Individual Determination
1 Appearance No bubbles, no stains, no damage, no impurities Qualified Qualified
2 Spec. Width 1000±5mm 1001 Qualified
    Thickness 0.023±0.005mm 0.023 Qualified
3

Max.F

(N/50mm)

TD

(CD)

≥150 192 Qualified
    MD ≥150 156 Qualified
4

Elongation

(%)

TD

(CD)

≥40 87 Qualified
    MD ≥40 56 Qualified
5 Tensile Strength(Mpa)

TD

(CD)

≥30 124 Qualified
    MD ≥30 108 Qualified
6 Subsequent Adhesion % ≥90 92 Qualified
Detection Qualified



About Upass:



Upass, founded in 2008, now as a governing unit of China Building Waterproof Association,

a vice chairman unit of Professional Committee of China Modified Plastic Association,

an enterprise with Triple A credibility in China Plastic Association, not only assists the

development of the relevant industries, but also upholds the conception of sustainable

development by successive technological innovation. Upass so far has acquired over

100 of intellectual property rights.



1. Taicang Production Plant:



ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film 2



2. Chenzhou Production Plant:



ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film 3



Certificates:



ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film 4



ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film 5



ISO9001 0.012mm 12 Micron Silicone Coated PET Release Film 6
