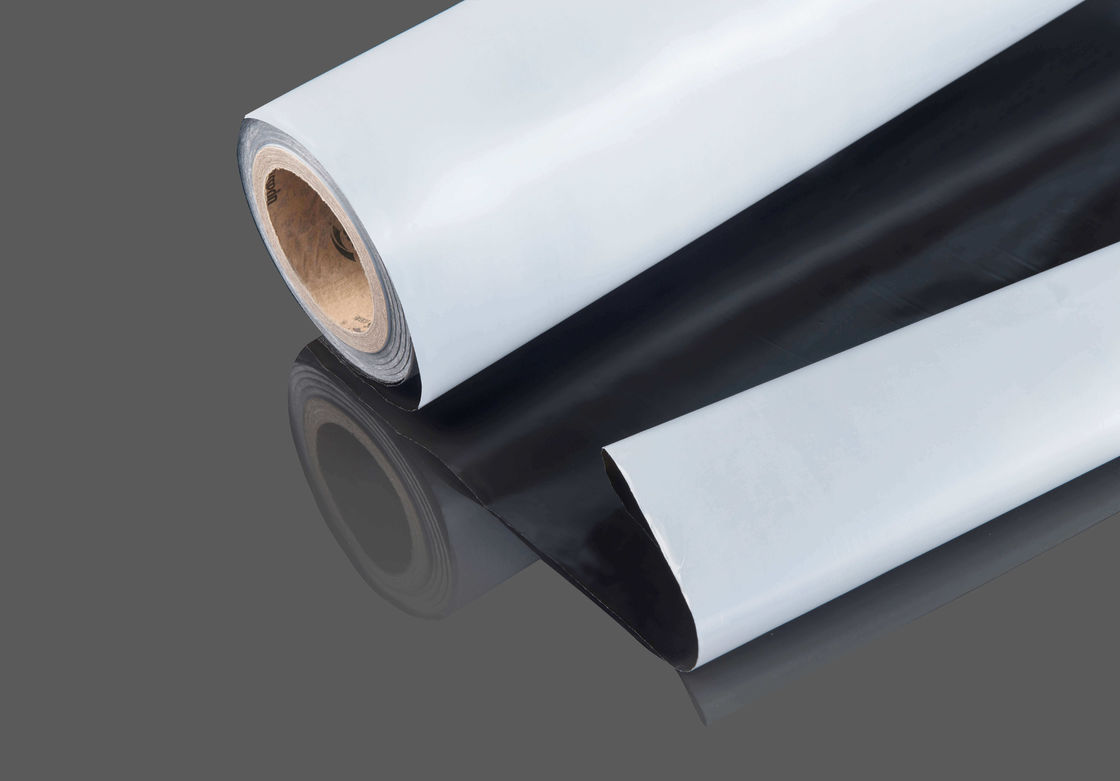

Two Side HDPE 150 Micron Silicone Coated Release Liner

Two Side HDPE 150 Micron Silicone Coated Release Liner
Two Side HDPE 150 Micron Silicone Coated Release Liner

Large Image :  Two Side HDPE 150 Micron Silicone Coated Release Liner

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: VEM.V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

Two Side HDPE 150 Micron Silicone Coated Release Liner

Description
Product Name: High Density Polyethylene Silicone Coated Release Liner Material: High Density Polyethylene (HDPE)
Thickness: 0.03-0.15mm Width: 100-2000mm
Application: Used For Waterproofing Membranes, Adhesive Tapes,etc. Color: Black, Grey, White, Blue, Green, Etc.
Performance: One Or Two Side Silicone Coated Process: Three-layers Blowing
High Light:

0.15mm Silicone Coated Release Liner

,

150 Micron Silicone Coated Release Liner

,

0.15mm silicone release liner

             High Density Polyethylene Silicone Coated release liner

Description:

Silicone coated release liner refers to the film with separative film on the surface.

It does not have viscidity or slight viscidity contact with specific material under the limited conditions. Normally in order to increase the release force of the film, it does corona treatment to the film and coated with silicone, to make it act out the light and stable release force to different organic pressure glue. According to different release film , the release force is different, the viscidity of release product glue is different , to adjust the release force, to make it have the light and stable release force during peeling. There are thermal curing and UV curing for silicone coating due to different release force requirements.



How to producing High Density Polyethylene Silicone Coated release liner:



1. Carrier Film Blowing---3 layers film blowing machine:



Two Side HDPE 150 Micron Silicone Coated Release Liner 0



2. Silicone Coating:



Two Side HDPE 150 Micron Silicone Coated Release Liner 1

Applications:

♦ Used for self-adhesive waterproof membranes and other waterproof materials, adhesive tapes
Used for cables production, packaging materials
♦ Used for cast materials, electronic applications, ceramic capacitors, window materials. printing, electronic, advertisements

Phameter:

1 Surface is flat, no wrinkles, and the winding is neat
2 Thickness mm 0.03-0.15
3 Width mm 100-2000
4 Max.Fd N/50mm ≥30
5 Elongation at break % ≥200
6 Release Force g/inch 10-25
7 Subsequent Adhesion % ≥75

Packaging:

Packed on export wooden pallet and wraped by strench film, covered by wooden plate and fixed by nylon strips.

Two Side HDPE 150 Micron Silicone Coated Release Liner 2
