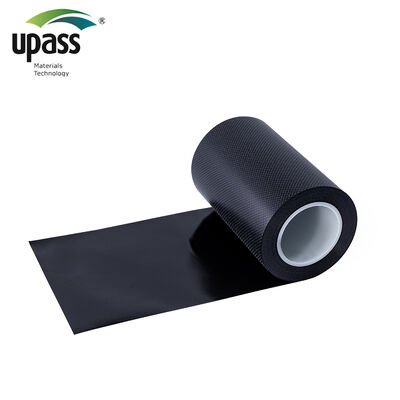

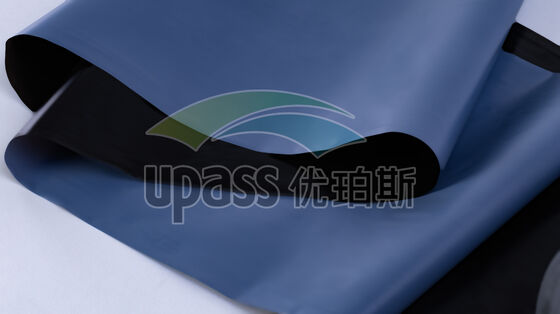

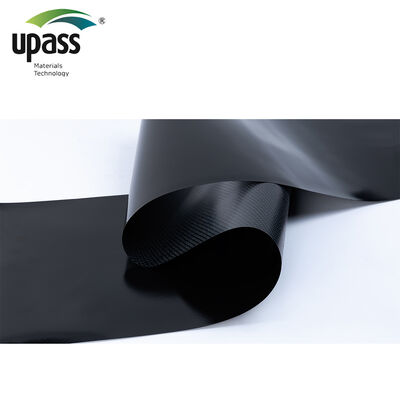

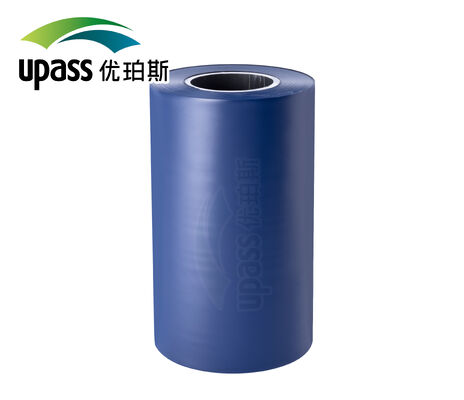

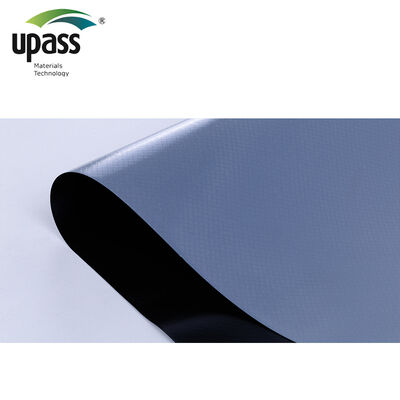

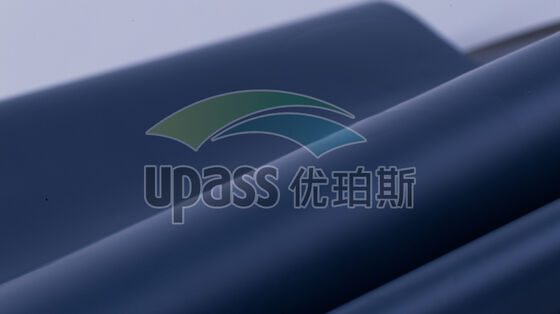

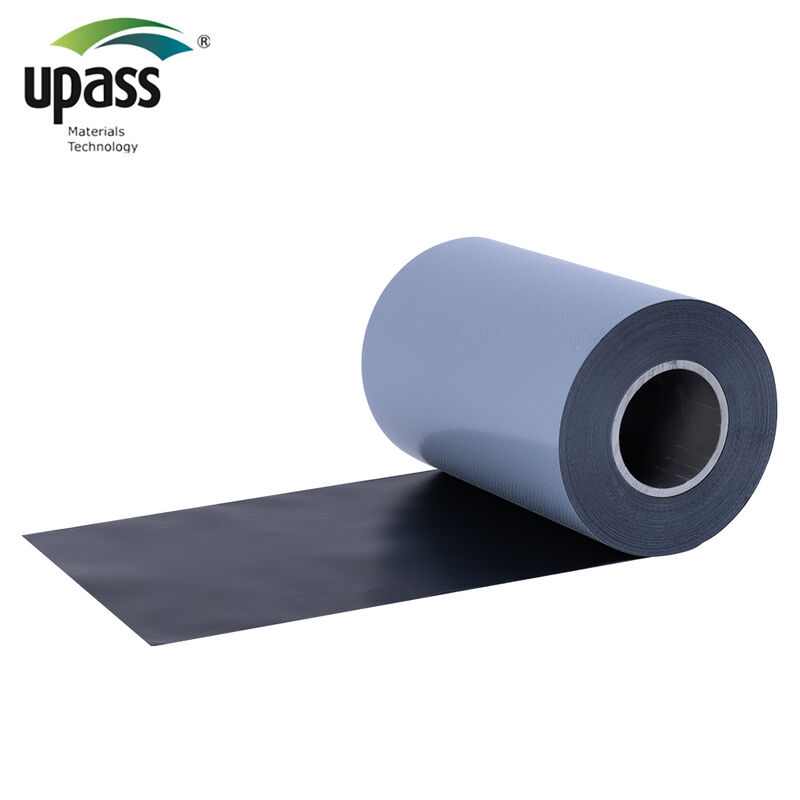

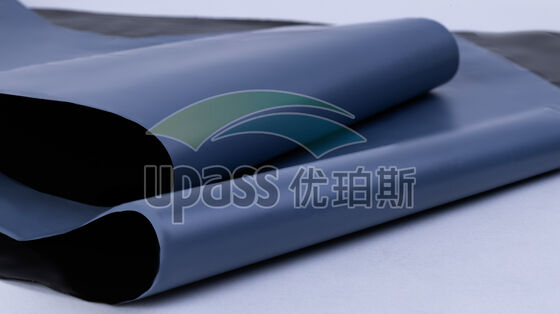

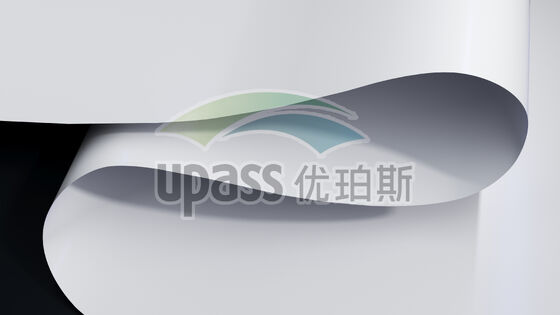

Cross Laminated Film
HDPE cross laminated film manufactured for high strength, tear resistance and dimensional stability in waterproof membranes, roofing underlayment, tape and other reinforced film applications.
UPASS offers 60B, 60C and 60F cross laminated film grades, allowing manufacturers to select the appropriate film according to mechanical performance, elongation and surface requirements.
1. What Is Cross Laminated Film?
Cross Laminated Film for Reinforced Film Applications
Cross laminated film is a reinforced polyethylene film structure produced by orienting film layers in different directions and laminating them together.
This cross-oriented structure helps distribute mechanical stress across both the machine direction (MD) and cross direction (CD), providing a combination of tensile strength, tear resistance, elongation, making the film thinner yet stronger in performance.
Compared with a conventional single-direction oriented film, cross laminated film can provide more balanced mechanical performance in applications where the film may experience stress from different directions.
UPASS manufactures HDPE cross laminated film for downstream manufacturers that use the material in waterproofing, roofing and other industrial film structures.
2. Cross Laminated Film Series
UPASS currently offers three grades:
60B — High-Strength Grade
Designed for applications where higher maximum tension and strong mechanical performance are important.
60C — High-Elongation Grade
Designed for applications where higher elongation at maximum tension is required while maintaining high tensile strength.
60F — Anti-Slip Grade
Designed with an anti-skid surface treatment for roofing membrane applications, particularly where improved traction is required on sloped surfaces.
60B / 60C / 60F Comparison
| Specification |
60B |
60C |
60F Anti-Slip |
| Main Focus |
High Strength |
High Elongation |
Anti-Slip Surface |
| Thickness |
90–265 μm |
90–265 μm |
75–200 μm |
| Width |
900–1200 mm |
900–1200 mm |
200–1060 mm |
| Sleeve ID |
76 mm |
76 mm |
— |
| Tensile Strength |
≥50 MPa |
≥50 MPa |
— |
| Maximum Tension |
≥300 N/50 mm |
≥250 N/50 mm |
— |
| Elongation at Maximum Tension |
≥200% |
≥250% |
— |
| Elongation at Break |
≥250% |
≥250% |
— |
| Nail Rod Tear Strength |
≥60 N |
≥60 N |
— |
| Dimensional Stability at 90°C |
≤1.5% |
≤1.5% |
— |
| Tear Strength |
≥25 N |
≥25 N |
— |
| Low Temperature Flexibility |
-30°C |
-30°C |
— |
| Tensile Retention Rate |
≥80% |
≥90% |
— |
| Anti-Slip Layer |
— |
— |
5–10 g/m² |
| Anti-Slip Layer Thickness |
— |
— |
30–50 μm |
| Available Colors |
— |
— |
Black, Gray, White, Blue, Green |
| Typical Application |
Waterproofing / Reinforcement |
Waterproofing / Flexible Structures |
Roofing / Steep-Slope Roofing |
3. 60B / 60C / 60F — Which Grade Should You Choose?
Choose 60B When
You need a cross laminated film with a higher specified maximum tension and strong mechanical performance.
Key focus:
- Tensile strength
- Maximum tension
- Tear resistance
- Dimensional stability
Choose 60C When
Your application requires higher specified elongation while maintaining a tensile strength of ≥50 MPa.Performance of 60C: Resistant to yellowing; the waterproofing membrane has a better appearance than that made with 60B.
Key focus:
- Higher elongation
- Flexibility-related performance
- Tensile strength
- Aging performance
Choose 60F When
Your roofing membrane requires an anti-slip surface for installation on sloped roofing surfaces.
Key focus:
- Anti-slip surface
- Roofing applications
- Wet and dry working conditions
- MD/CD physical strength
4. Cross Laminated Film for Waterproof Membranes
Cross laminated film is used by waterproofing membrane manufacturers as a reinforced film or substrate within different membrane constructions.
The film can provide mechanical reinforcement and support the membrane's requirements for tensile strength, tear resistance and elongation.
UPASS cross laminated film grades can be evaluated for applications including:
- Asphalt-based waterproofing membranes
- Synthetic roofing membranes
- Roof underlayment
- Reinforced waterproofing structures
For waterproofing membrane manufacturers, film selection should consider the membrane construction, production process, bonding system, thickness and required mechanical performance.
5. Anti-Slip Cross Laminated Film
For roofing applications where workers need to operate on sloped surfaces, UPASS 60F provides a specially treated anti-slip surface.
The textured surface is designed to improve traction under wet and dry conditions while maintaining the reinforcement characteristics of cross laminated film.
60F is available in 75–200 μm basis thickness and 200–1060 mm width, with an anti-slip layer of 5–10 g/m².
6. Applications
Cross Laminated Film Applications
UPASS cross laminated film is supplied as a polymer film material for downstream converting and membrane manufacturers.
Waterproofing Membranes
Used as a reinforcement or substrate film in selected waterproofing membrane constructions.
Roofing Underlayment
Cross laminated structures can be used in roofing underlayment applications where mechanical strength and tear resistance are required.
Tapes
Other Reinforced Film Applications
Depending on the required mechanical properties and processing conditions, cross laminated film can also be evaluated for other industrial applications.
7. Why Choose UPASS as Your Cross Laminated Film Supplier?
Cross Laminated Film Manufacturer and Supplier
Product Series
UPASS supplies multiple cross laminated film grades, including 60B, 60C and 60F, allowing customers to select a film according to their application requirements.

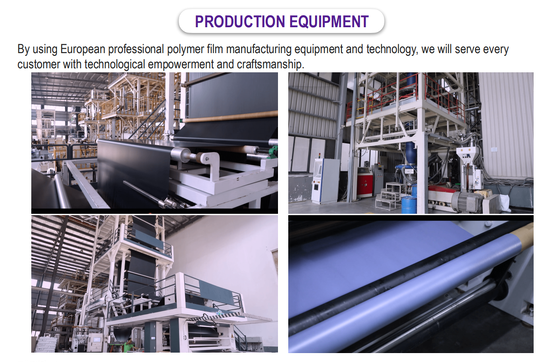

HDPE Film Manufacturing
The cross laminated film series is based on polyethylene film technology and is developed for applications requiring reinforced film performance.
Application-Oriented Selection
Instead of offering one standard film for every application, UPASS provides different grades for different mechanical and surface requirements.
Technical Support
Customers can provide their required thickness, width, application, membrane construction and performance requirements for technical evaluation.
Film Material Supplier
UPASS supplies polymer film materials to downstream manufacturers, including manufacturers of waterproofing and roofing products.
9. How to Choose Cross Laminated Film
Consider 1: Required Thickness
Determine the required film thickness based on the final product construction and manufacturing process.
Consider 2: Mechanical Performance
Compare tensile strength, maximum tension, elongation and tear resistance according to the requirements of the finished product.
Consider 3: Surface Requirement
For conventional reinforced film applications, 60B or 60C may be considered.
For roofing applications requiring an anti-slip surface, 60F is the appropriate grade to evaluate.
Consider 4: Processing Compatibility
The selected film should be evaluated with the customer's actual production equipment, adhesive or asphalt system and processing conditions.
Consider 5: Finished Product Application
The appropriate grade depends not only on film properties but also on the final application.
10. FAQ
Cross laminated film is a reinforced polymer film made by laminating film layers oriented in different directions to provide mechanical performance across both MD and CD.
What is HDPE cross laminated film used for?
HDPE cross laminated film is used in applications including waterproofing membranes, roofing underlayment, roofing membranes and other reinforced film structures.
What is the difference between 60B and 60C?
60B has a higher specified maximum tension of ≥300 N/50 mm, while 60C has a higher specified elongation at maximum tension of ≥250%. Both have a specified tensile strength of ≥50 MPa.The 60C grade exhibits good yellowing resistance, and the synthetic waterproofing membranes produced from it have a better appearance than those made from 60B.
What is 60F anti-slip cross laminated film?
60F is a cross laminated film with a specially treated anti-slip surface designed for roofing membrane applications, particularly on sloped roofing surfaces.
Which cross laminated film is suitable for waterproof membranes?
60B and 60C can be evaluated for waterproofing membrane applications, depending on the required mechanical and elongation performance. 60F can be considered when an anti-slip surface is required.
Can UPASS customize cross laminated film?
UPASS can evaluate customized requirements according to the customer's application, thickness, width, processing conditions and required performance.
11. RFQ
Looking for the Right Cross Laminated Film?
Tell us your:
- Required thickness
- Film width
- Final application
- Membrane construction
- Required tensile / elongation performance
- Production process
Our team can help you evaluate the appropriate 60B, 60C or 60F cross laminated film for your application.
