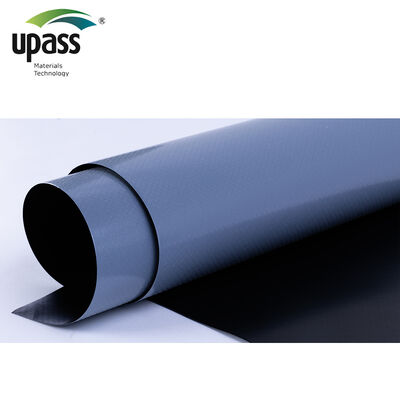

100 Micron High Strength HDPE Cross Laminated Film for Self-Adhesive Waterproof Membrane Surface Layer

HDPE Cross Laminated Film is a high-performance polyethylene reinforced film specially developed for Self-Adhesive Waterproof Membrane applications. As an important surface layer material, the film provides excellent tensile strength, tear resistance, dimensional stability, and weather resistance for modern waterproofing systems.

Unlike temporary protective films, HDPE Cross Laminated Film is permanently laminated with the waterproof membrane during manufacturing and remains on the membrane surface after installation. It works as a functional reinforcement layer to improve the overall durability and reliability of self-adhesive waterproof membranes.

Self-Adhesive Waterproof Membranes are widely used in roofing, basement waterproofing, tunnels, and civil engineering projects. During production and installation, the surface film needs to withstand:

• High-temperature processing
• Mechanical stress
• Outdoor UV exposure
• Temperature changes

The performance requirements of Self-Adhesive Waterproof Membranes continue to increase as construction standards become more demanding. The surface film is no longer only a protective layer—it directly affects the production efficiency, installation performance, and service life of the final waterproofing product.

During the manufacturing process of Self-Adhesive Waterproof Membranes, the polyethylene cross laminated film needs to withstand high-temperature bonding processes. Some traditional cross laminated films experience large dimensional changes after heat treatment, which may cause:

• Film shrinkage
• Membrane deformation
• Surface unevenness

After Self-Adhesive Waterproof Membrane installation, the finished membrane may remain exposed before the protective layer or additional construction layer is completed. During this period, the surface film is directly affected by:

• UV radiation
• Sunlight exposure
• Rain
• Temperature cycling

Although polyethylene cross laminated film technology has developed significantly, some products still have limitations. Common issues include:

• Low tensile strength
• Poor impact resistance
• Limited elongation performance
• Unstable production quality

UPASS HDPE Cross Laminated Film is designed to solve the performance challenges of traditional surface films. Through optimized material formulation, stretching technology, and cross lamination process, the film provides improved mechanical and thermal performance.

The cross-oriented structure helps control thermal deformation during high-temperature processing. Compared with conventional PE films, UPASS cross laminated film provides:

• Lower dimensional change
• Better heat stability
• Improved processing compatibility

For outdoor waterproofing applications, UV resistance is a critical requirement. UPASS HDPE Cross Laminated Film can be customized with UV-resistant and anti-aging formulations to provide improved protection against:

• UV radiation
• Long-term sunlight exposure
• Weather aging

The multi-layer cross laminated structure improves stress distribution. Compared with ordinary polyethylene films, the product provides:

• Higher tensile strength
• Better tear resistance
• Improved impact resistance
• Stable mechanical performance

HDPE Cross Laminated Film is mainly used as a surface reinforcement film for Self-Adhesive Waterproof Membrane systems. It provides mechanical protection, better dimensional stability, and improved outdoor durability. The film remains permanently bonded with the membrane structure and does not need to be removed after installation.

For roofing applications, Self-Adhesive Waterproof Membranes require surface materials with excellent resistance against sunlight, temperature variation, and mechanical stress. HDPE Cross Laminated Film helps improve long-term reliability.

In underground waterproofing applications, the membrane may experience construction stress and mechanical impact. The high tear resistance of cross laminated film helps protect the waterproofing layer.

Large infrastructure projects require waterproof membranes with stable long-term performance. Cross laminated film provides reliable reinforcement for demanding environments.

The performance advantage of HDPE Cross Laminated Film comes from its unique molecular orientation and layered structure:

HDPE resin is processed through extrusion equipment to form high-quality polyethylene film.

The film is stretched to improve molecular orientation and increase mechanical strength.

Multiple oriented layers are laminated at optimized angles. This creates a reinforced structure with balanced properties in both machine direction and transverse direction.

The result is higher strength, better tear resistance, lower deformation, and improved dimensional stability.

Different waterproof membrane structures require different film properties. Consider asphalt temperature, adhesive system, and application environment.

Common thickness options include 90 micron, 100 micron, and 110 micron. Thicker films provide higher protection, while thinner films offer better cost efficiency.

For exposed applications, select UV-resistant film, anti-aging film, and weather-resistant formulation.

For demanding projects, focus on tensile strength, tear resistance, impact resistance, and dimensional stability.

UPASS provides customized HDPE Cross Laminated Film solutions according to membrane structure, production process, and performance requirements.

HDPE Cross Laminated Film is used as a permanent surface reinforcement layer for Self-Adhesive Waterproof Membrane. It improves tensile strength, tear resistance, dimensional stability, and outdoor durability.

No. Unlike temporary protective films, cross laminated film is permanently laminated with the Self-Adhesive Waterproof Membrane and remains as a functional surface layer.

Cross laminated film provides better strength balance, tear resistance, heat stability, and weather resistance compared with conventional PE films.

Yes. UV-resistant and anti-aging formulations can be added to improve long-term outdoor performance.

Typical thickness ranges from 90 to 110 microns, and customized thickness is available according to customer requirements.

HDPE Cross Laminated Film provides a high-performance surface solution for Self-Adhesive Waterproof Membrane manufacturers. With excellent strength, dimensional stability, heat resistance, and weather durability, it helps improve waterproof membrane quality and long-term reliability.

UPASS offers customized HDPE Cross Laminated Film solutions with advanced manufacturing technology and stable production capability.
