0.03-0.15mm Thickness Silicone Coated Embossed Polypropylene PP Release Liner Film for Waterproof Membranes

Large Image : 0.03-0.15mm Thickness Silicone Coated Embossed Polypropylene PP Release Liner Film for Waterproof Membranes

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	upasschina
Model Number:	PP Release Film

Payment & Shipping Terms:

Price:	$0.07-0.18/rolls

Contact Now

0.03-0.15mm Thickness Silicone Coated Embossed Polypropylene PP Release Liner Film for Waterproof Membranes

Description

Processing Service:	Cutting	Plastic Modling Type:	Blow Molding
Product Name:	PP Embossed Film	MOQ:	1 T
Type Science And Technology:	Casting/Blow Molding	Size:	50MIC*1050cm/roll
Color:	Light Gray Black	Application:	Construction,Tape
Thickness:	0.03-0.15mm	Width:	100-2000mm
Highlight:	Embossed Polypropylene Silicone Coated Release Liner , Tape Thickness Silicone Coated Release Liner , PP Silicone Coated Release Liner

Embossed Polypropylene Silicone Coated Release Liner

Embossed Polypropylene (PP) film combines excellent material properties with the physical advantages of embossed structure, making it an ideal surface material for high-performance waterproof membranes.

Key Advantages

High flexibility - creped surface easily conforms to curved and irregular shapes
Mechanical durability - textured surface enhances tensile strength
Silicone coating - enables easy release from adhesives
Chemical resistance - effective against oils, greases, tar, and water
Dimensional stability - remains flat and does not wrinkle during application
Customization options - available in various widths and colors to match production needs

Technical Specifications

Item	Test Standard	Performance Index
Thickness	ASTM D3767	±0.005mm \| 0.035
g/sqm	ASTM D638	35g/m² \| 32
Max. Force	ASTM D882	MD ≥600N/m \| 760 TD≥600N/m \| 730
Elongation @ Break	ASTM D882	MD≥200% \| 656 TD≥200% \| 732
Peeling Force	FTM10	≤20g \| 15
Subsequent Adhesion Rate	Q/320585 UPA 01-2019	≥80% \| 87

Applications

Industrial Tape Manufacturing
Primary use in technical tapes including butyl tape release film for roof and façade sealing, insulating and transfer tapes for construction applications, ridge tapes for ventilation and chimney flashing, and polyurethane/bitumen-based tapes for waterproofing systems. The embossed film serves as protective liner, shielding adhesive layers from contamination and moisture while allowing smooth peeling without stretching or tearing.
Construction and Roofing
Ideal as separating and protective layer in torch-on roofing membranes, bitumen shingles, roofing and sealing tapes, and repair components for roofs and foundations. Performs exceptionally in challenging environments due to resistance to tar, moisture, and weather conditions.
Technical and Automotive Industries
Used as spacer or separator during assembly, protective film for delicate or painted surfaces, and carrier layer for laminates or self-adhesive components in vehicles.

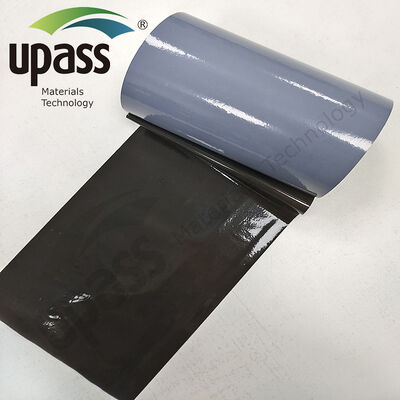

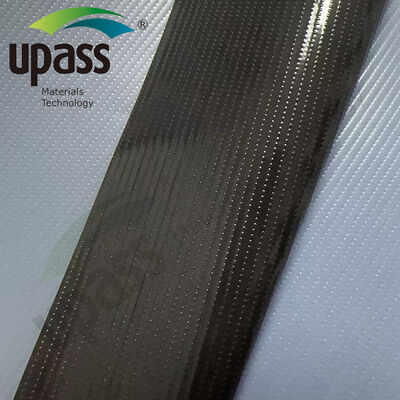

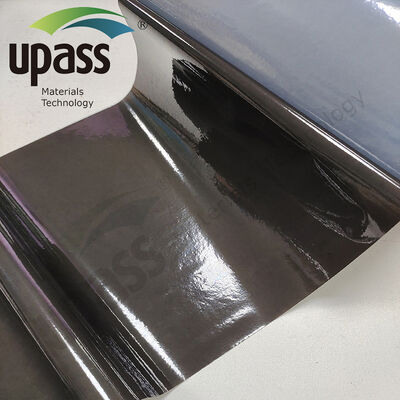

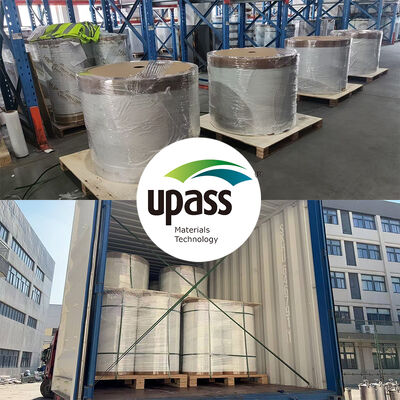

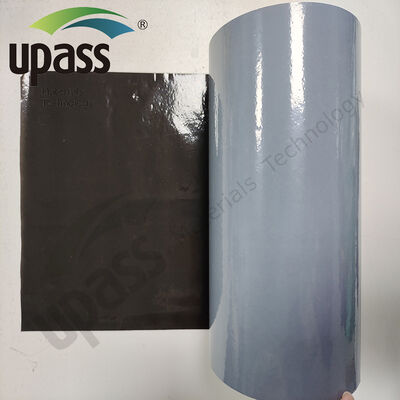

Product Images
