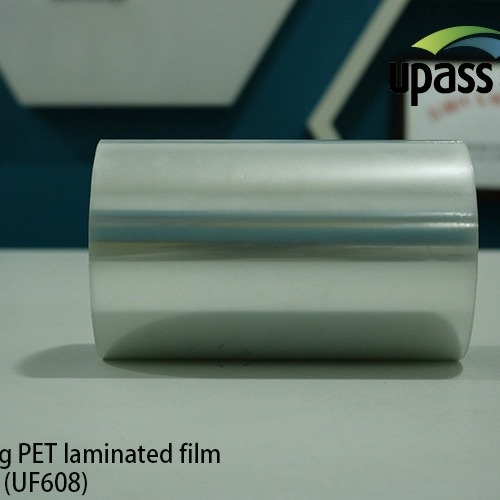

Anti Aging PET Laminated Film 608 Packaging Film

Anti Aging PET Laminated Film 608 Packaging Film
Anti Aging PET Laminated Film 608 Packaging Film Anti Aging PET Laminated Film 608 Packaging Film

Large Image :  Anti Aging PET Laminated Film 608 Packaging Film

Product Details:
Place of Origin: CHINA
Brand Name: UF
Model Number: 608
Payment & Shipping Terms:
Minimum Order Quantity: 10000SQM
Packaging Details: Bubble or Film Wrap
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T
Supply Ability: 20 Tons/Month

Anti Aging PET Laminated Film 608 Packaging Film

Description
Product Name: Anti-aging PET Laminated Film Application: It Is Used For The Market Of Waterproofing, Adhesive Tapes,etc.
Main Feature: Anti-aging Thickness: 0.045/0.075mm
Material: Anti-aging PET Color: Silver
High Light:

Anti Aging PET Laminated Film

,

Adhesive Tapes PET Laminated Film

,

Waterproofing Pet Laminated Film

Anti-aging PET laminated film 608 Packaging film



Description:



It is a composite of modified anti-aging material and aluminum foil, used for the surface of exposed waterproofing membrane, without efflorescence and layering defect, has good anti-aging, UV resistance and weather resistance as well. It prevents the asphalt from sun exposure due to reflectivity of over 90%.



Application:



It is used for the market of waterproofing, adhesive tapes,etc.



Main feature: Anti-aging



Color: Silver



Performance index:



Test item Test method Value Remark
Thickness 0.045 GB/T6672-2001 0.046
0.07 GB/T6672-2001 0.072
Width GB/T6673-2001 1000 as per the requirement
Sleeve I.D.   350 as per the requirement
Period of anti-aging 0.045 / / 5~10 years
0.07 / / over 20years
Max.Tensile strength 0.045 GB/T 328.9-2007

MD:388N

TD:354N

Rectangle Specimen-Width: 25mm, Stretching speed: 100mm/min., Fixture gauge length: 100mm
0.07

MD:456N

TD:428N

Elongation @ Max. tension 0.045

MD:85%

TD:78%

0.07

MD:102%

TD:93%

Peeling force 0.045 GB/T 529-2008

MD:20.4N

TD:18.6N

Stretching speed: 250mm/min
0.07

MD:23.9N

TD:21.5N

Dimensional stability 0.045/0.07 GB/T 35467-2017

MD:0%

TD:0%

90℃&24h
Aging test PCT96 /





Yellowing index △b≤2.0,



Temperature:121℃,

Humidity: 100%,

Atmosphere pressure: 2atm,Time: 48h

UV300KWh IEC61215

Temperature on the sample: 60±5℃,

Total exposure dose: 120KWh•m2,UVB factor: 3%-10%.





About Upass:



Anti Aging PET Laminated Film 608 Packaging Film 0



Anti Aging PET Laminated Film 608 Packaging Film 1



Upass was founded in 2008, headquartered in the cluster of New Material Industrial Park, Qingpu District, Shanghai. Upass industry is affiliated to the field of new innovative material among top10 Made in China 2025. Upass production bases are respectively located in Taicang, Jiangsu Province ( the 1st stage of project was in to production in Jun.2014, covering over 36,600 Sqm., which was one of the major municipal investment programs in Taicang city in 2012.The 2nd stage of project will be in to production within 2020), and Chenzhou city, Hunan province.
Upass was introduced integrated hi-tech manufacturing equipment from European countries. As an environment oriented company, Upass particularly focuses on technological innovation, and spares no efforts in continuously strengthening the abilities in R&D. Upass self-established national standard laboratory. Through the cooperation with Sinopec Group and excellent national universities, Upass has jointly developed SDM strong cross film, PE release film with multi-characters (of wrinkle, hydrophilic, non-slippy, tear line, anti-aging, etc.), PET release film (various peeling forces), SBS super soluble film, the new national standardized laminated film,etc. The series of products especially have been acknowledged by top ten companies in the relevant downstream industries in China. Upass has so far acquired more than 100 patents of intellectual properties.
