Flame Resistant HDPE Cross Laminated Film 100mm Width

Flame Resistant HDPE Cross Laminated Film 100mm Width
Flame Resistant HDPE Cross Laminated Film 100mm Width Flame Resistant HDPE Cross Laminated Film 100mm Width Flame Resistant HDPE Cross Laminated Film 100mm Width

Large Image :  Flame Resistant HDPE Cross Laminated Film 100mm Width

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Cross Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

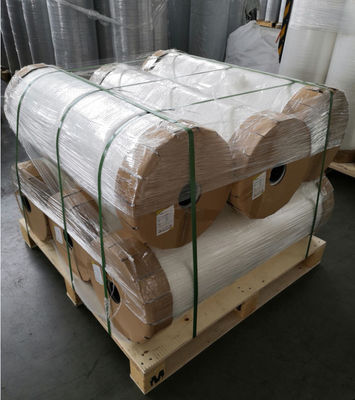

Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

Flame Resistant HDPE Cross Laminated Film 100mm Width

Description
Product Name: AirBag Label Application Flame Resistance Cross Laminated Film Material: HDPE
Production Process: Cross Laminated Performance: Flame Resistance
Thickness: 0.09-0.26 Width: 100-1100mm
Color: White Application: Tags, Labels, Printing Media
Printing: Can Be Customizable Sample: Available
High Light:

Flame Resistant Cross Laminated Film

,

100mm Width Cross Laminated Film

,

HDPE Printing Cross Laminated Film

 AirBag Label Application Flame Resistance Cross Laminated Film



Description:



Cross Laminated Film is an extremely versatile, high-performance product line that resists

tearing, puncturing, and weathering. Our proprietary, cross-lamination manufacturing

process provides considerably tighter gauge control than competitive spun bonded,

smoother printing surfaces, and ease in converting.



It is so strong that it will not tear, even when nicked, and withstands cold temperature.

UV stabilized, standard grades hold up well during outdoor exposure and provides

superior moisture and chemical resistance making it ideal for engine tags as well as

cruise and freight tags.



Parameter:



NO. Item Performance
    SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
    MaxF/(N/50mm) ≥ 200 300
    Elongation as MaxF/% ≥ 200
    Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination

7 Thermal Ageing Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 80
    Elongation at MaxF/% ≥ 200
    Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 70
    Elongation at MaxF/% ≥ 180
    Elongation at break/% ≥ 180



Advantages:



► Corona treated
► Outdoor Durability:
► Good ink adhesion
► Chemical and Oil Resistance
► Pre-printed or print-on-demand
► Excellent Staple Pullout Resistance

► Flame Resistance





Application:



Flame Resistant HDPE Cross Laminated Film 100mm Width 0
