Product Details:
|
| Product Name: | Flame Retardant Airbag Application Cross Laminated Film | Material: | HDPE |
|---|---|---|---|
| Production Process: | Cross Laminated | Performance: | Flame Retardant |
| Thickness: | 0.15-0.26mm | Width: | 100-1100mm |
| Color: | White | Application: | Label Printing, Tags, Airbag Label |
| Printing: | Can Be Customizable | Sample: | Available |
| High Light: | Airbag Cross Laminated Film,Flame Retardant Cross Laminated Film,Label Printing Cross Laminated Film |
||

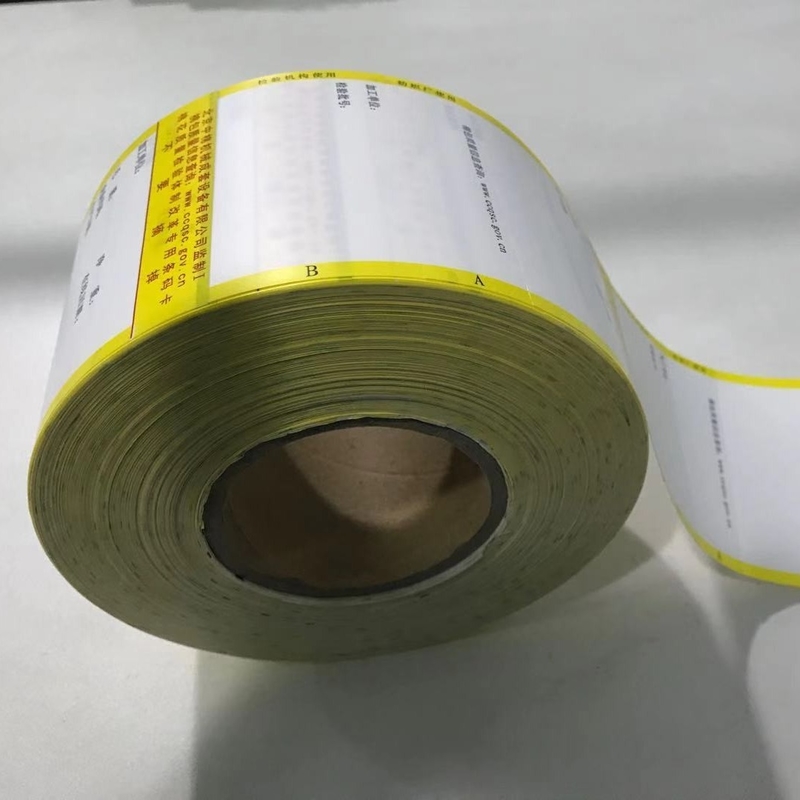

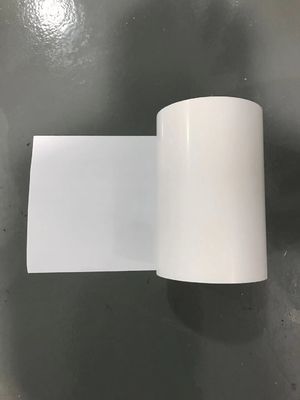

Flame Retardant Airbag Application Cross Laminated Film
Description:
It is a high-strength multi-layer composite film, made of HDPE film as the carrier,
after strengthen and rotary cutting, then finally laminated by imported laminational
machine(From Italy). Due to its cross-stacking structure is different from ordinary
single-layer or multi-layer film, it has the thermal stability, dimensional stability,
two-way tear resistance, two-way uniform tension and high elongation which are
not available in traditional films.
It is the ideal material for label printing and special packaing, such as Hanging IV Labels,
Air Bag Covers, EKG Labels (electrocardiogram), RFID (radio frequency identification),
Law Labels,Strength Tape and so on.
Parameter:
| NO. | Item | Performance | ||
| SDM-30 | SDM-60 | |||
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| MaxF/(N/50mm) ≥ | 200 | 300 | ||
| Elongation as MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 250 | |||
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 | ||
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 | ||
| 4 | Angle Tear Strength/N ≥ | 25 | ||
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation | ||
| 6 | Cryogenic Flexibility ℃ |
-35℃, No fissure, No delamination |
||
| 7 | Thermal Ageing | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 80 | |||
| Elongation at MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 200 | |||
| 8 | Artificial Weathering | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 70 | |||
| Elongation at MaxF/% ≥ | 180 | |||
| Elongation at break/% ≥ | 180 | |||
Advantages:
|
1. CROSS LAMINATED |
| 2. ULTRAVIOLET RESISTANCE |
| 3. TEAR RESISTANCE |
| 4. CHEMICAL RESISTANCE |
| 5. PUNCTURE RESISTANCE |
| 6. WEATHER RESISTANCE |
| 7. TEAR PROPAGATION RESISTANCE |
| 8. FLAME RESISTANCE |
Application:
1. Hanging IV Labels
2. Air Bag LABELS
3. EKG Labels (electrocardiogram)
4. RFID (radio frequency identification)
5. Law Labels
6. Strength Tape
