Bitumen Waterproof Membranes Application Cross Laminated Film

Bitumen Waterproof Membranes Application Cross Laminated Film
Bitumen Waterproof Membranes Application Cross Laminated Film Bitumen Waterproof Membranes Application Cross Laminated Film Bitumen Waterproof Membranes Application Cross Laminated Film Bitumen Waterproof Membranes Application Cross Laminated Film

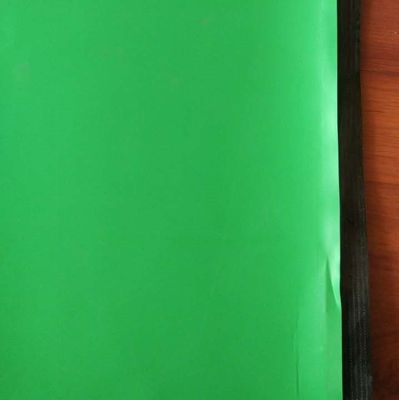

Large Image :  Bitumen Waterproof Membranes Application Cross Laminated Film

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Cross Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

Bitumen Waterproof Membranes Application Cross Laminated Film

Description
Product Name: Bitumen Waterproof Membranes Application Cross Laminated Film Material: HDPE
Production Process: Cross Laminated Performance: Thermal Dimensional Stability
Thickness: 0.09-0.26 Width: 100-1250mm
Color: Black, Grey, Blue, Green, Etc. Application: Underlayment, Waterproofing Membrane
Printing: Can Be Customizable Sample: Available
High Light:

Waterproof Membranes Cross Laminated Film

,

Bitumen Cross Laminated Film

,

HDPE Cross Laminated Film

        Bitumen Waterproof Membranes Application Cross Laminated Film

Description:



Bitumen Waterproof Membranes Application Cross Laminated FilmIt is a 100 micron cross laminated polyethylene film.

Conferring puncture and weather resistant, thermal dimensional stability and cold temperature resistance. Our cross-laminated process provides unbeaten mechanical performance and properties.

Our proprietary manufacturing process is composed of 3 steps: Original HDPE Film Blowing, Spiral Cutting, and Cross Lamination. We’ve refined this multi-step process by use imported film blowing machine can laminated machine to ensure the highest quality film for our customers.




Parameter:


NO. Item Performance
    SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 60
    MaxF/(N/50mm) ≥ 200 300
    Elongation as MaxF/% ≥ 200
    Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination

7 Thermal Ageing Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 80
    Elongation at MaxF/% ≥ 250
    Elongation at break/% ≥ 250
8 Artificial Weathering Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 70
    Elongation at MaxF/% ≥ 200
    Elongation at break/% ≥ 200



Note: If you have special requirements, we can customized as your standard.




Application:

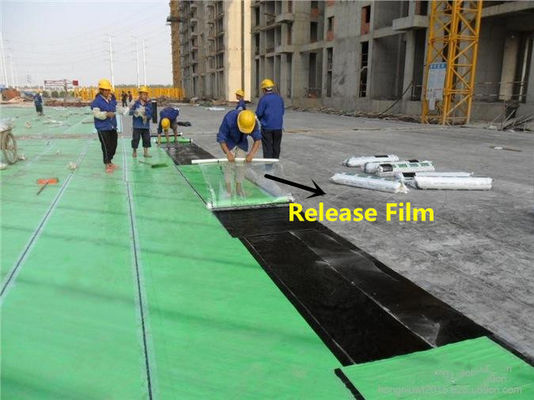

► Surface/base material for CONSTRUCTION WATERPROOFING

Bitumen Waterproof Membranes Application Cross Laminated Film 0


► Material film for PERFORMANCE PACKAGING

Bitumen Waterproof Membranes Application Cross Laminated Film 1


► Carrier Material for PRINT MEDIA

Bitumen Waterproof Membranes Application Cross Laminated Film 2


► Custom Lamination



FAQ:



Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.



Q2: Do you provide samples ? is it free or extra ?

A2: Yes, we could offer A4 sample for free charge but if you need in roll,

we can offer 100-200m/roll for free, but shipping cost need you to paid.



Q3: How long is your delivery time?

A3: Depends on your quantity. Generally it is 15-20 days for 20GP container.



Q4: What's your payment?

A4: By L/C, by T/T (30% deposit before production, 70% balance before loading).



Q5: What's the usage of this film?

A5: It is special for the surface material when you producing SBS or APP bitumen

waterproofing membranes.



Q6: What's the thickness you can do?

A6: We can do as thin as 7 microns, but usually do 10 microns.



Q7: What's your production capacity?

A7: We have total 10 sets of machines, the production is about 1000 tons per month.





Why Upass:



Upass, founded in 2008, now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights.



1. Taicang Production Plant:



Bitumen Waterproof Membranes Application Cross Laminated Film 3



2. Chenzhou Production Plant:

Bitumen Waterproof Membranes Application Cross Laminated Film 4



Factory Perviews:



Bitumen Waterproof Membranes Application Cross Laminated Film 5





Bitumen Waterproof Membranes Application Cross Laminated Film 6





Bitumen Waterproof Membranes Application Cross Laminated Film 7



Bitumen Waterproof Membranes Application Cross Laminated Film 8
