Product Details:
|
| Product Name: | HDPE NORMAL FILM PLAIN FILM For Waterproof Membranes | Material: | High Density Polyethylene (HDPE) |
|---|---|---|---|
| Thickness: | 0.03-0.15mm | Width: | 100-2000mm |
| Application: | Used For Waterproofing Membranes, Adhesive Tapes,etc. | Color: | Black, Grey, White, Blue, Green, Etc. |
| Performance: | One Side Silicone Coated | Process: | Three-layers Blowing |
| Highlight: | Membranes High Density Polyethylene Film,Blowing High Density Polyethylene Film,Adhesive Tapes High Density Polyethylene Film |
||

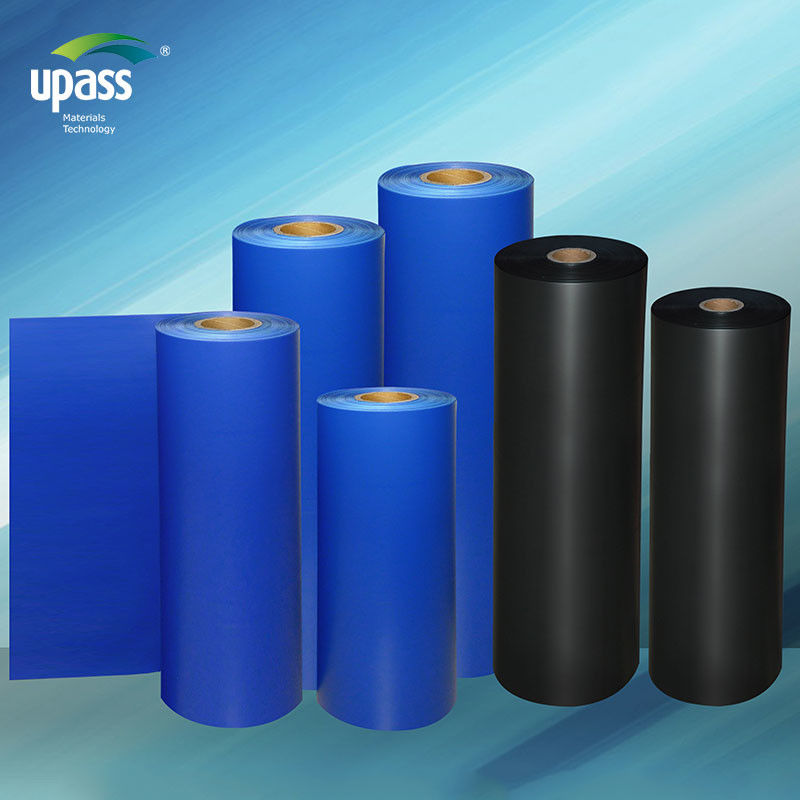

HDPE NORMAL FILM PLAIN FILM For Waterproof Membranes, it is original HDPE Film.
It is made of 3 layers film bolwing, no strength, make the film is flat.
It is the ideal material for surface of waterproof membranes.
Phameter:
| Products Name | HDPE film | Spec. | 0.15mm*970mm | ||
| Detection Methed | Q/TPXP 1-2013 | Date | 2020.9.23 | ||
| NO. | Item | Factory Requirement | Detection Value | Detection | |
| 1 | Appearance | No bubbles, no stains, no damage, no impurities | Qualified | Qualified | |
| 2 | Spec. | Width | 970±10mm | 972 | Qualified |
| Thickness | 0.15±0.005mm | 0.153 | Qualified | ||
| 3 |
Max.F (N/50mm) |
TD (CD) |
≥150 | 192 | Qualified |
| MD | ≥150 | 238 | Qualified | ||
| 4 |
Elongation (%) |
TD (CD) |
≥200 | 1155 | Qualified |
| MD | ≥200 | 967 | Qualified | ||
| 5 | Tensile Strength |
TD (CD) |
≥18 | 25 | Qualified |
| MD | ≥22 | 31 | Qualified | ||
| Detection | Qualified | ||||
Production Process:
1. 3 layers film blowing:
![]()
2. Film Rolling Process:
![]()
1. Surface material for waterproofing membarnes:
![]()
