Product Details:
|
Product Name: | Surface Film Application PE Laminated Film For Waterproof Membranes | Material: | HDPE |
---|---|---|---|
Production Process: | Cross Laminated | Performance: | Thermal Dimensional Stability |
Thickness: | 0.09-0.26 | Width: | 100-1250mm |
Color: | Black, Grey, Blue, Green, Etc. | Application: | Underlayment, Waterproofing Membrane |
Printing: | Can Be Customizable | Sample: | Available |
Highlight: | 0.26 Thick Cross Laminated Film,Underlayment Cross Laminated Film,30Mpa Cross Laminated Film |

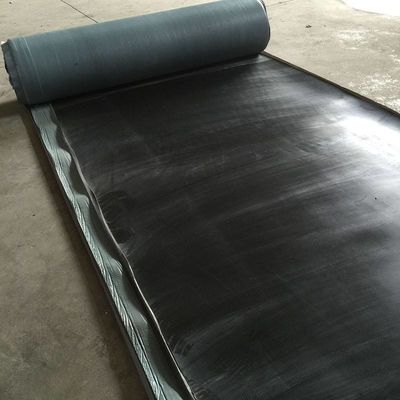

Surface Film Application PE Laminated Film For Waterproof Membranes
Description:
It is a multi-layer composite film,made of HDPE as the base material,
Through multi-layer co-extrusion blow molding into embryos, and then by multiple pull
Stretching, then rotary cutting into a film substrate with a horizontal and vertical
distribution of 45 °, and finally through cross-laminated with an extruder with their
orientation directions crossed at 90 degrees.
Parameter:
NO. | Item | Performance | ||
SDM-30 | SDM-60 | |||
1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
MaxF/(N/50mm) ≥ | 200 | 300 | ||
Elongation as MaxF/% ≥ | 200 | |||
Elongation at break/% ≥ | 250 | |||
2 | Sample number of no broken tested by free-falling dart method ≥ | 8 | ||
3 | Tear Strength(Nail Shank)/N ≥ | 60 | ||
4 | Angle Tear Strength/N ≥ | 25 | ||
5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation | ||
6 | Cryogenic Flexibility ℃ |
-35℃, No fissure, No delamination |
||
7 | Thermal Ageing | Appearance | No bulb, No deformation | |
Subsequent MaxF/% ≥ | 80 | |||
Elongation at MaxF/% ≥ | 200 | |||
Elongation at break/% ≥ | 200 | |||
8 | Artificial Weathering | Appearance | No bulb, No deformation | |
Subsequent MaxF/% ≥ | 70 | |||
Elongation at MaxF/% ≥ | 180 | |||
Elongation at break/% ≥ | 180 |
Advantages:
1. Puncture Resistance: less accidental damage |
2. Thermal Dimensional Stability: No fish-mouthing or controlled shrinkage |
3. Cold temperature resistant down to -30°C/-20°C |
4. Cross laminated film allows waterproofing membranes to bridge gaps in sheathing and is resistant to damage from incidental movement and settling of the roof |
5. UV Stability for typical job site exposure |
