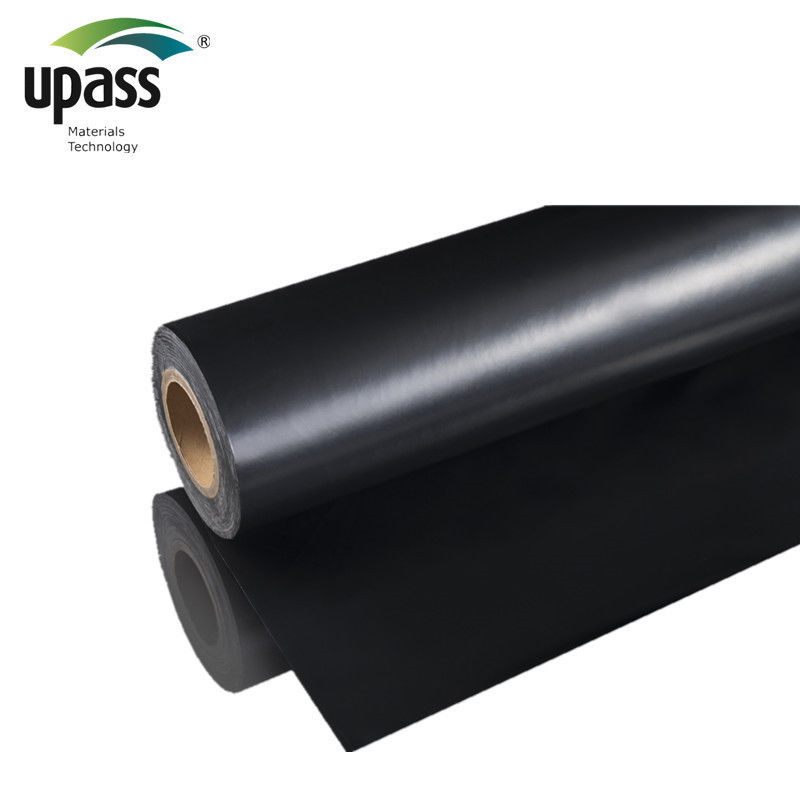

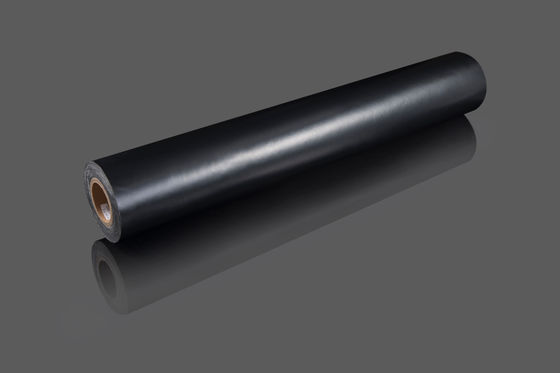

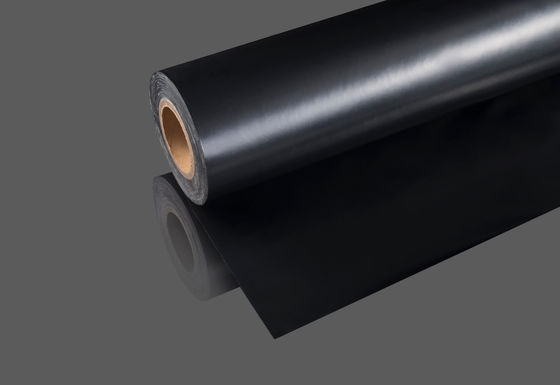

Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes

Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes
Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes

Large Image :  Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Cross Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡
Contact Now

Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes

Description
Product Name: Thermal Dimensional Stability Cross Laminated Multi Layer HDPE Film For Waterproofing Membranes Material: HDPE
Production Process: Cross Laminated Performance: Thermal Dimensional Stability
Thickness: 0.09-0.26 Width: 100-1250mm
Color: Black, Grey, Blue, Green, Etc. Application: Underlayment, Waterproofing Membrane
Printing: Can Be Customizable Sample: Available
Highlight:

Multi Layer HDPE Cross Laminated Film

,

1250mm Cross Laminated Film

,

Underlayment Cross Laminated Film

Thermal Dimensional Stability Cross Laminated Multi Layer HDPE Film For Waterproofing Membranes

Description:

Thermal Dimensional Stability Cross Laminated Multi Layer HDPE Film For Waterproofing Membranes, it is a high-strength multi-layer composite film,It is made of HDPE as the base material, by multiple pull stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-laminated.


Our proprietary manufacturing process is composed of 3 steps: Step 1: HDPE Film Extrusion, Step 2: Spiral Cutting, Step 3: Cross Lamination. We’ve refined this multi-step process by use imported film blowing machine and laminated machine to ensure the highest quality film for our customers.

It is high strength, tear resistance, UV resistance, Thermal Dimensional Stability, special design for surface material of self-adhesive waterproofing membranes, labels&tags, construction and packaging.



Parameter:


NO. Item Performance
    SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
    MaxF/(N/50mm) ≥ 200 300
    Elongation as MaxF/% ≥ 200
    Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination
7 Thermal Ageing Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 80
    Elongation at MaxF/% ≥ 200
    Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 70
    Elongation at MaxF/% ≥ 180
    Elongation at break/% ≥ 180



Advantages:

Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes 0

Application:

► Surface/base material for CONSTRUCTION WATERPROOFING
► Material film for PERFORMANCE PACKAGING
► Carrier Material for PRINT MEDIA
► Custom Lamination

Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes 1

Structure of bitumen membranes:

Multi Layer HDPE Cross Laminated Film For Waterproofing Membranes 2
