Product Details:
|
| Product Name: | 90 Micron Thermal Dimensional Stability Cross Laminated Film | Material: | HDPE |
|---|---|---|---|
| Production Process: | Cross Laminated | Performance: | Thermal Dimensional Stability |
| Thickness: | 0.09-0.26 | Width: | 100-1250mm |
| Color: | Black, Grey, Blue, Green, Etc. | Application: | Underlayment, Waterproofing Membrane |
| Printing: | Can Be Customizable | Sample: | Available |
| High Light: | 90 Micron Cross Laminated Film,0.09mm Cross Laminated Film,0.09mm polyethylene shrink film |
||

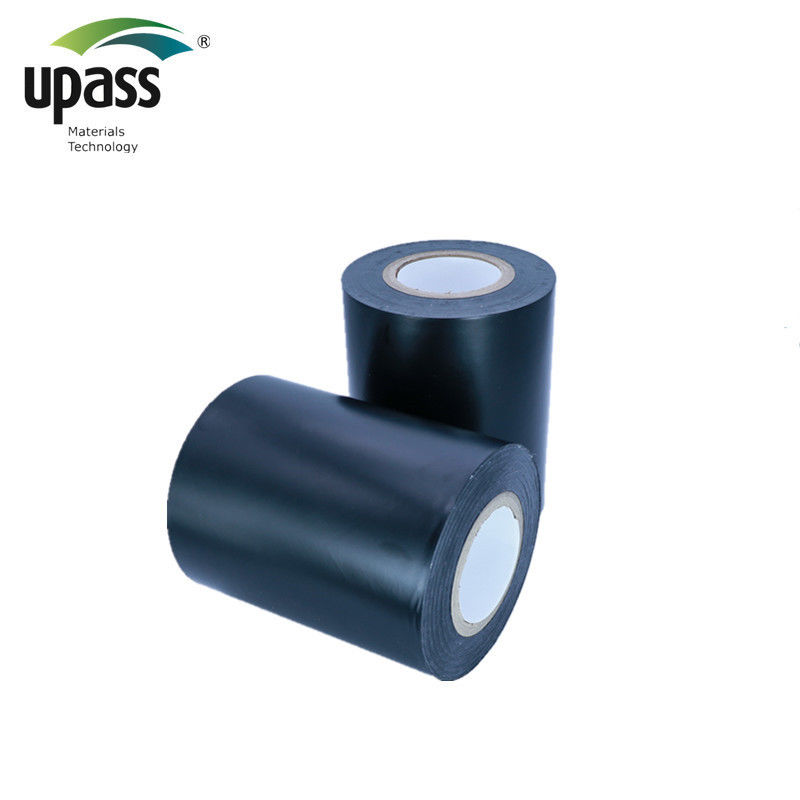

90 Micron Thermal Dimensional Stability Cross Laminated Film
Description:
|
It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-laminated. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films. |
Advantages:
Application:
► Surface/base material for CONSTRUCTION WATERPROOFING
► Material film for PERFORMANCE PACKAGING
► Carrier Material for PRINT MEDIA
► Custom Lamination
Structure of bitumen membranes:
Parameter:
| NO. | Item | Performance | ||
| SDM-30 | SDM-60 | |||
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| MaxF/(N/50mm) ≥ | 200 | 300 | ||
| Elongation as MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 250 | |||
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 | ||
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 | ||
| 4 | Angle Tear Strength/N ≥ | 25 | ||
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation | ||
| 6 | Cryogenic Flexibility ℃ |
-35℃, No fissure, No delamination |
||
| 7 | Thermal Ageing | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 80 | |||
| Elongation at MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 200 | |||
| 8 | Artificial Weathering | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 70 | |||
| Elongation at MaxF/% ≥ | 180 | |||
| Elongation at break/% ≥ | 180 | |||
About Upass:
| Upass, founded in 2008, is headquartered in New Materials Industrial Park, Qingpu District, Shanghai, and has two production bases in Taicang, Jiangsu and Chenzhou, Hunan. Now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights. |
| UPASS will spare no effort in strengthening and improving the production, sales networks, service system to return the trust and support of customers, and look forward to working with you in a win-win future. |
Company History:
Main Fields:
|
As a new material field, functional films are also one of the top ten key fields of Made in China 2025, and the awareness in the market is increasing. Nowadays, functional films are not only used in the construction field, special packaging, tape, label, automobile, electronics and other industries, but also in the fields of film filtration, air permeable film, graphene heating film, insulation film, Anti-UV film, biodegradable materials etc.. |
|
UPASS, as a leading domestic deep cultivator of polymer functional films, has also entered a stage of rapid development. We believe that UPASS will enter more application fields of polymer films innear future. |
