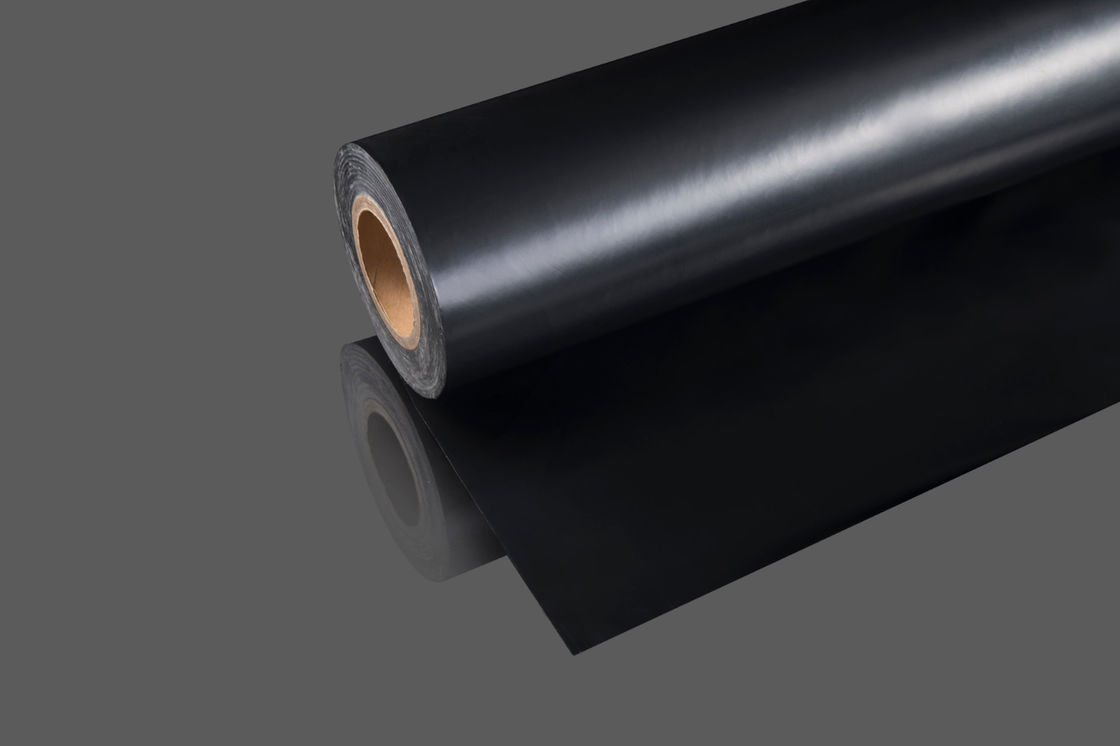

90 Micron Black Stability 0.09mm HDPE Film Roll

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

90 Micron Black Stability 0.09mm HDPE Film Roll

90 Micron Black Stability 0.09mm HDPE Film Roll
90 Micron Black Stability 0.09mm HDPE Film Roll

Large Image :  90 Micron Black Stability 0.09mm HDPE Film Roll

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Cross Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

90 Micron Black Stability 0.09mm HDPE Film Roll

Description
Product Name: 90 Micron Thermal Dimensional Stability Cross Laminated Film Material: HDPE
Production Process: Cross Laminated Performance: Thermal Dimensional Stability
Thickness: 0.09-0.26 Width: 100-1250mm
Color: Black, Grey, Blue, Green, Etc. Application: Underlayment, Waterproofing Membrane
Printing: Can Be Customizable Sample: Available
High Light:

0.09mm HDPE Film Roll

,

90um HDPE Film Roll

,

0.09mm hdpe plastic film

    90 Micron Thermal Dimensional Stability Cross Laminated Film

Description:


It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-laminated. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films.
Our proprietary manufacturing process is composed of 3 steps: HDPE Film Extrusion, Spiral Cutting, and Cross Lamination. We’ve refined this multi-step process by use imported film blowing machine can laminated machine to ensure the highest quality film for our customers.



Parameter:


NO.ItemPerformance
  SDM-30SDM-60
1Tensile PropertyTensile Strength/Mpa ≥3050
  MaxF/(N/50mm) ≥200300
  Elongation as MaxF/% ≥200
  Elongation at break/% ≥250
2Sample number of no broken tested by free-falling dart method ≥8
3Tear Strength(Nail Shank)/N ≥60
4Angle Tear Strength/N ≥25
5Thermal Stability120 ℃,10min, No bulb, No deformation
6Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination

7Thermal AgeingAppearanceNo bulb, No deformation
  Subsequent MaxF/% ≥80
  Elongation at MaxF/% ≥200
  Elongation at break/% ≥200
8Artificial WeatheringAppearanceNo bulb, No deformation
  Subsequent MaxF/% ≥70
  Elongation at MaxF/% ≥180
  Elongation at break/% ≥180



Advantages:

90 Micron Black Stability 0.09mm HDPE Film Roll 0

Application:

► Surface/base material for CONSTRUCTION WATERPROOFING
► Material film for PERFORMANCE PACKAGING
► Carrier Material for PRINT MEDIA
► Custom Lamination

90 Micron Black Stability 0.09mm HDPE Film Roll 1

Structure of bitumen membranes:

90 Micron Black Stability 0.09mm HDPE Film Roll 2
