Product Details:
|
| Product Name: | Bitumen Waterproof Membrane Application Cross Laminated Film | Material: | HDPE |
|---|---|---|---|
| Production Process: | Cross Laminated | Performance: | Anti-slip |
| Thickness: | 0.09-0.12 | Width: | 100-1250mm |
| Color: | Black, Grey, Blue, Green, Etc. | Application: | Underlayment, Waterproofing Membrane |
| Printing: | Can Be Customizable | Sample: | Available |
| High Light: | 0.12mm Cross Laminated Film,120 Micron Cross Laminated Film,0.12mm heat shrink polythene |
||

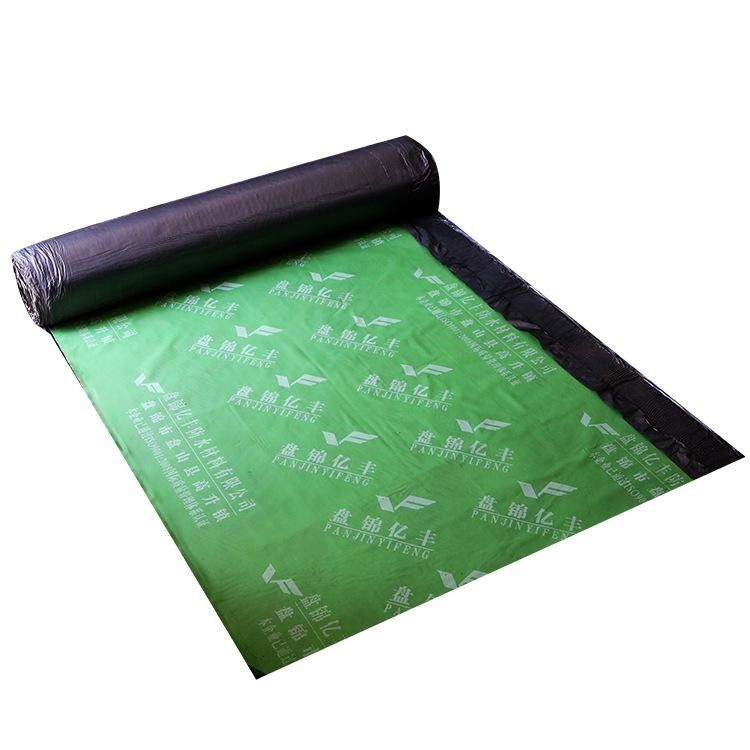

Bitumen Waterproof Membrane Application Cross Laminated Film
What is cross laminated strength film?
It is a high-strength multi-layer composite film,It is made of HDPE as the base material,
adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other
additives through multi-layer co-extrusion blow molding into embryos, and then by multiple
pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution
of 45 °, and finally through cross-compositing. Due to its cross-stacking structure is different
from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability,
two-way tear resistance, two-way uniform tension and high elongation which are not available
in traditional films.
Type of waterproofing membranes:
Advantages:
|
► Excellent dimensional stability. It can fix its own size without deformation
► Two-way tear resistance. The vertical and horizontal mesh structure effectively solves the phenomenon of easy wrinkling and drumming after construction
► Performance against UV radiation. The use of outdoor high temperature conditions is guaranteed
► High strength and high elongation performance. Excellent resistance to high and low temperature
► Unique puncture resistance, self-healing and continuous tear resistance and excellent nail water tightness. |
Application:
Parameter:
| NO. | Item | Performance | ||
| SDM-30 | SDM-60 | |||
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| MaxF/(N/50mm) ≥ | 200 | 300 | ||
| Elongation as MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 250 | |||
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 | ||
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 | ||
| 4 | Angle Tear Strength/N ≥ | 25 | ||
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation | ||
| 6 | Cryogenic Flexibility ℃ |
-35℃, No fissure, No delamination |
||
| 7 | Thermal Ageing | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 80 | |||
| Elongation at MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 200 | |||
| 8 | Artificial Weathering | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 70 | |||
| Elongation at MaxF/% ≥ | 180 | |||
| Elongation at break/% ≥ | 180 | |||
