Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: Youguang
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

Advertising 5000 Micron Electric Frosted Window Film

Description
Thickness: 2mm-5mm Width: 600-2000mm Can Be Customized
Total Light Transmittance: Power Off >67% Directional Light Transmittance: Power Off <4%
Haze: Power Off >96% Application: Used For The Building Of Decorating, Remodeling, Advertising
Product Name: Frosted Glass Technique Switchable Transparent Film Material: ITO
High Light:

5000 Micron Electric Frosted Window Film

,

2000 micron Electric Frosted Window Film

,

5mm smart tint window film

              Frosted Glass Technique Switchable Transparent Film

Product Description:

STF (Switchable Transparent Film) is also known as PDLC (Polymer Dispersed Liquid Crystal) film,

electronic dimming film, electronic curtain, etc.

It is based on film technology. The rod-shaped polymer liquid crystalls mixing with prepolymer stick

to transparent conductive base material, so that it simultaneously possesses charateristics of liquild

and crystal. When powering off, polymer comes to the atomization of disorder.

With polymer powering on, it is orderly arranged along with the direction of the electric field,

which enables the film to have transmittance of the light.

By controling the electric switch, It can be converted between transparent and opaque state.



Available color options:

Advertising 5000 Micron Electric Frosted Window Film 0



Principle:

Advertising 5000 Micron Electric Frosted Window Film 1



 Parameters:



Item Performance / Unit Testing Method and Standard
Rated Voltage ON 36/48/60(AC50HZ) Multimeter
Power Consumption ON 4-6w/(SQM) Multi-parameter Electrical Measuring Instruments
Total Light Transmittance ON >83% GB/T 2410-2008GB/Spectrophotometer
  OFF >67%
Directional Light Transmittance ON >80% GB5137.2-2002
  OFF <4%
Haze ON <4% GB/T 2410-2008GB/Spectrophotomete
  OFF >96%
Response Time ON <40(MS) Liquid Cystal Mutl-prareter. Measuring Instrument
  OFF <210(MS)
Operating Temperature / -30~70℃ Constant Temperature and Humidly Testing Machine
Lifetime ON >100000(H) GB18910.5- 2008

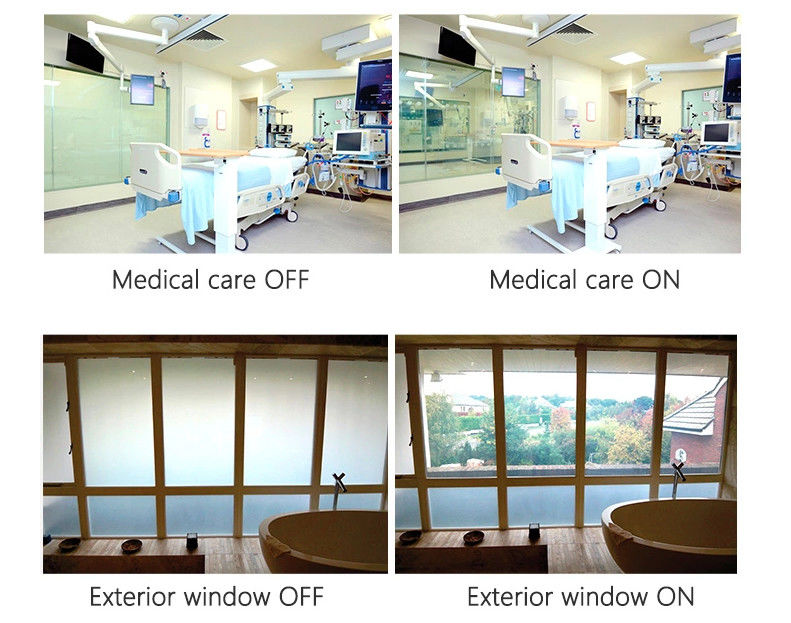

Application:



Advertising 5000 Micron Electric Frosted Window Film 2





FAQ:



1. How does Smart Film work?
In “Off State” when no electrical power is applied on the smart film the light is absorbed

or scattered and the film looks dark gray or white.

In “On State” the light is transmitted and the film looks transparent.

2. What is the product lead time?
Lead time for PDLC Film Products is 5-7 days after received payment.

3. What is the size of your package?

1 roll / 60 square meter 1* box L146*W38*H38CM
4. What are your shipment terms?
We deliver it by air/express transportation.
Customer clear custom, release and deliver to final destination.
5. Is there a MOQ (Minimum of Quantity)?
1 square meter
6. What is the expected life of your products?
Life expectancy is approximately 8-10 years or switch >2000000times.
