Product Details:
|
| Thickness: | 2mm-5mm | Width: | 600-2000mm Can Be Customized |
|---|---|---|---|
| Total Light Transmittance: | Power Off ＞67% | Directional Light Transmittance: | Power Off ＜4% |
| Haze: | Power Off ＞96% | Application: | Used For The Building Of Decorating, Remodeling, Advertising |
| Product Name: | Electronic Window Film Switchable Transparent Film | Material: | ITO |
| High Light: | Window Switchable Transparent Film,ISO9001 Switchable Transparent Film,5000 micron switchable film for windows |
||
STF (Switchable Transparent Film) is also known as PDLC (Polymer Dispersed Liquid Crystal) film,
electronic dimming film, electronic curtain, etc.
It is based on film technology. The rod-shaped polymer liquid crystalls mixing with prepolymer stick
to transparent conductive base material, so that it simultaneously possesses charateristics of liquild
and crystal. When powering off, polymer comes to the atomization of disorder.
With polymer powering on, it is orderly arranged along with the direction of the electric field,
which enables the film to have transmittance of the light.

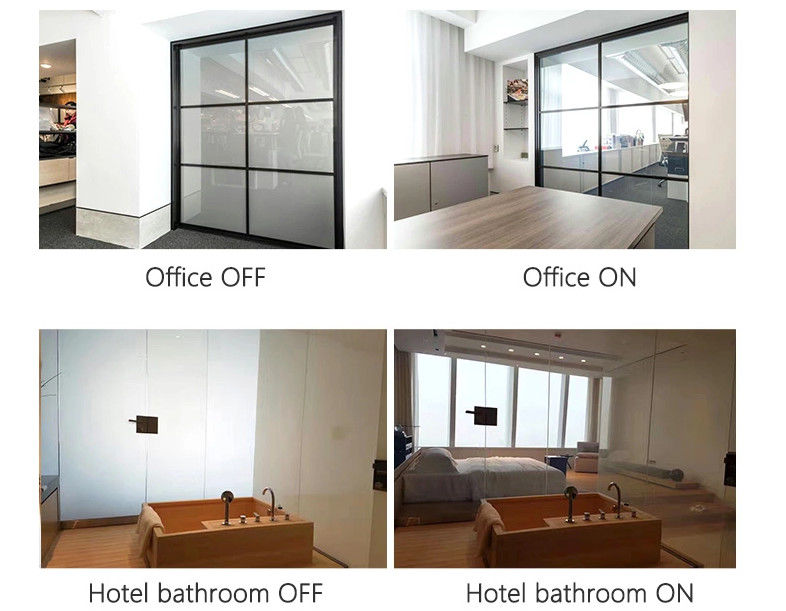

By controling the electric switch, It can be converted between transparent and opaque state.
Parameters:
| Item | Performance / Unit | Testing Method and Standard | |
| Rated Voltage | ON | 36/48/60(AC50HZ) | Multimeter |
| Power Consumption | ON | 4-6w/(SQM) | Multi-parameter Electrical Measuring Instruments |
| Total Light Transmittance | ON | ＞83% | GB/T 2410-2008GB/Spectrophotometer |
| OFF | ＞67% | ||
| Directional Light Transmittance | ON | ＞80% | GB5137.2-2002 |
| OFF | ＜4% | ||
| Haze | ON | ＜4% | GB/T 2410-2008GB/Spectrophotomete |
| OFF | ＞96% | ||
| Response Time | ON | ＜40(MS) | Liquid Cystal Mutl-prareter. Measuring Instrument |
| OFF | ＜210(MS) | ||
| Operating Temperature | / | -30~70℃ | Constant Temperature and Humidly Testing Machine |
| Lifetime | ON | ＞100000(H) | GB18910.5- 2008 |
Function:
