Product Details:
|
| Product Name: | Tags And Labels Application High Strength Cross Laminated Packaging Film | Material: | HDPE |
|---|---|---|---|
| Production Process: | Cross Laminated | Performance: | Thermal Dimensional Stability |
| Thickness: | 0.09-0.26 | Width: | 100-1250mm |
| Color: | White | Application: | Label Material, Packing Film |
| Printing: | Can Be Customizable | Sample: | Available |
| High Light: | 0.26mm Polyethylene Plastic Film,260um Polyethylene Plastic Film,0.26mm packing plastic roll |
||

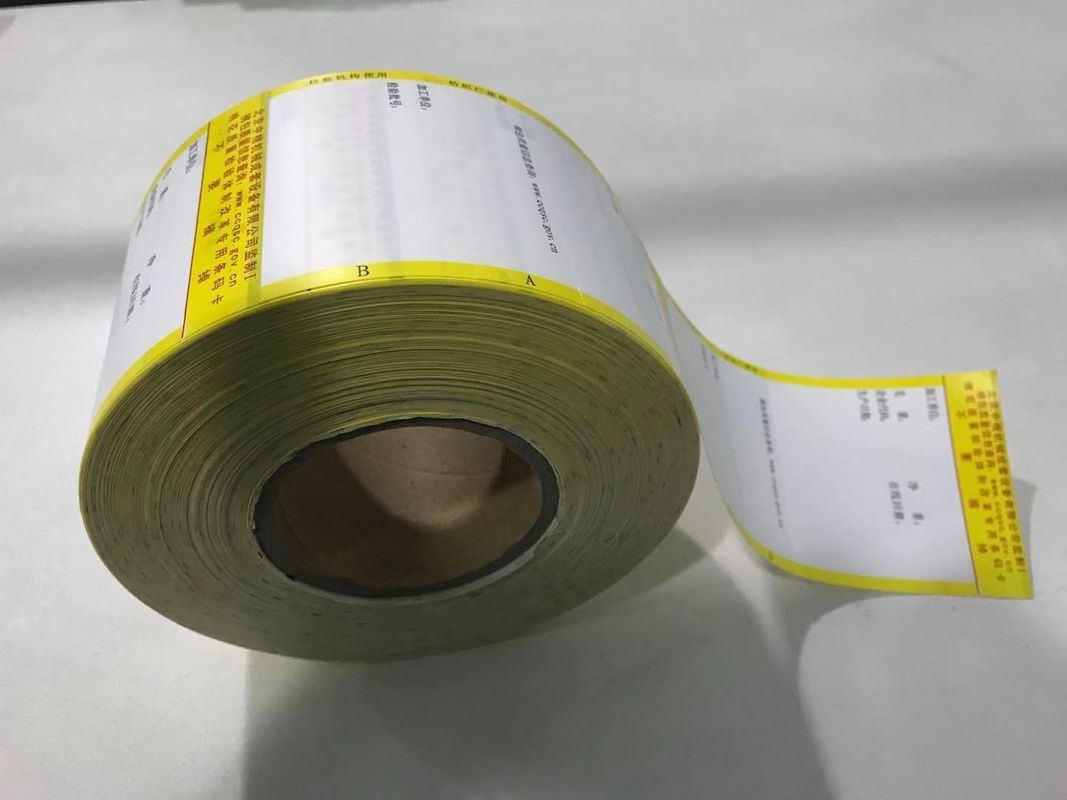

Tags And Labels Application High Strength Cross Laminated Packaging Film
Description:
| It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-compositing. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films. |
| Laminated film is an extremely versatile, high-performance product line that resists tearing, puncturing, and weathering. Our proprietary, cross-lamination manufacturing process provides considerably tighter gauge control than competitive spun bonded, smoother printing surfaces, and ease in converting. It is so strong that it will not tear, even when nicked, and withstands cold temperature. UV stabilized, the grades hold up well during outdoor exposure and provides superior moisture and chemical resistance making it ideal for engine tags as well as cruise and freight tags. |
Advantages:
Application:
| 1. Hanging and Labels |
| 2. Air Bag Covers |
| 3. EKG Labels (electrocardiogram) |
| 4. RFID (radio frequency identification) |
| 5. Law Labels |
| 6. Strength Tape |
Phameter:
| NO. | Item | Performance | ||
| SDM-30 | SDM-60 | |||
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| MaxF/(N/50mm) ≥ | 200 | 300 | ||
| Elongation as MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 250 | |||
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 | ||
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 | ||
| 4 | Angle Tear Strength/N ≥ | 25 | ||
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation | ||
| 6 | Cryogenic Flexibility ℃ |
-35℃, No fissure, No delamination |
||
| 7 | Thermal Ageing | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 80 | |||
| Elongation at MaxF/% ≥ | 200 | |||
| Elongation at break/% ≥ | 200 | |||
| 8 | Artificial Weathering | Appearance | No bulb, No deformation | |
| Subsequent MaxF/% ≥ | 70 | |||
| Elongation at MaxF/% ≥ | 180 | |||
| Elongation at break/% ≥ | 180 | |||
FAQ:
Question1: Are you trading company or manufacturer ?
Anwser1: We are manufacturer.
Question2: Do you provide samples ? is it free or extra ?
Anwser2: Yes, we could offer A4 sample for free charge but if you need in roll,
we can offer 100-200m/roll for free, but shipping cost need you to paid.
Question3: How long is your delivery time?
Anwser3: Depends on your quantity. Generally it is about 30 days for 20GP container.
Question4: How to pay for your goods?
Anwser4: By L/C, by T/T (30% deposit before production, 70% balance before loading).
