Product Details:
|
| Product Name: | 150 Micron High Density Polyethylene Film For Waterproofing Application | Material: | High Density Polyethylene (HDPE) |
|---|---|---|---|
| Production Process: | Film Blowing | Performance: | Thermal Dimensional Stability |
| Thickness: | 0.09-0.26 | Width: | 100-1250mm |
| Color: | Black, Grey, Blue, Green, Etc. | Application: | Underlayment, Waterproofing Membrane |
| Printing: | Can Be Customizable | Sample: | Available |
| High Light: | 0.15mm HDPE Plastic Sheet Roll,150um HDPE Plastic Sheet Roll,0.15mm polyethylene plastic film |
||

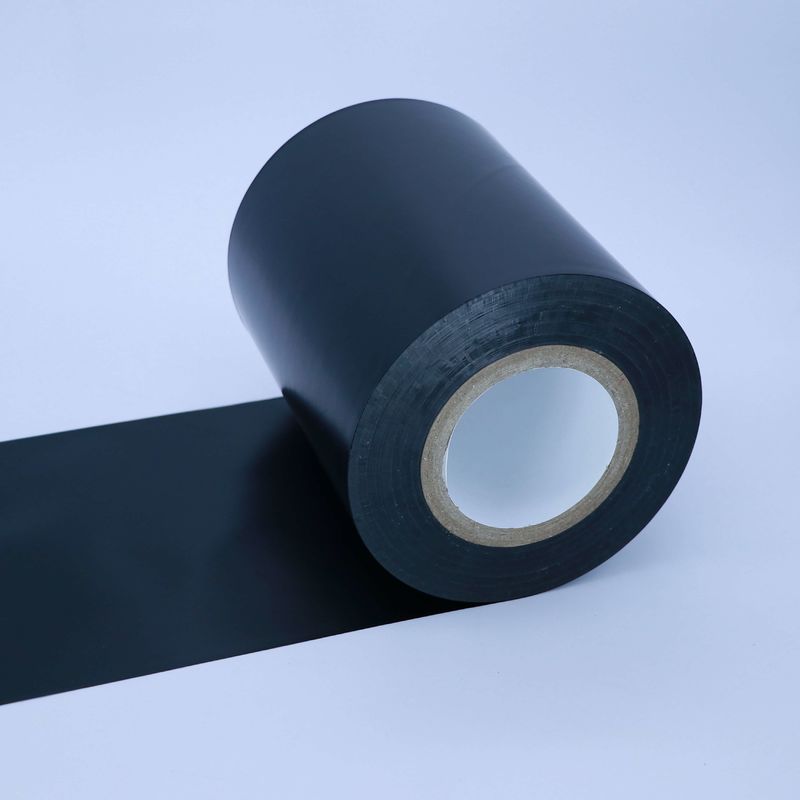

150 Micron High Density Polyethylene Film For Waterproofing Application
Description:
Properties of HDPE film:
| Films made of HDPE are noted for their characteristic rustle and milky colouring and they are odourless. By adding colour concentrates a lot of colour variants can be achieved and by means of additives films with the desired properties can be produced. Unlike LDPE films, their structure is duller, their strength is higher, they are hazier, and they are not shrinkable. The thermal endurance of HDPE films is from −50 °C up to +110 °C. Under everyday conditions of use HDPE films are resistant to most chemical substances, they do not cause corrosion of the products packed in them, and they can be welded. They have minimum permeability of water vapours and smells, and they transmit oxygen, fats, and aromatic substances in a very limited amount. Generally, HDPE films are more chemically resistant, which is given by their structure. In the natural variant, HDPE films are suitable for direct contact with foodstuffs, the colour variants only if the pigment content is within the concentration defined by the producer. HDPE films are environmentally unobjectionable and recyclable, and they can be disposed of in landfill or by combustion in which no substances harmful to the environment are released. |
Use of HDPE film:
► waterproofing membranes
► packaging of a wide range of products
► separating layer of bitumen boards
► carriers of release liner
► films for the manufacture of boil-in bags
► semi-products for the manufacture of bags, T-shirt bags, and sheets
► semi-product for the manufacture of advertising carrier bags
► semi-product for printing
Application for waterproofing membarnes
Phameter:
| Products Name | HDPE film | Spec. | 0.1mm*920mm | ||
| Detection Methed | Q/TPXP 1-2013 | Date | 2020.7.2 | ||
| NO. | Item | Factory Requirement | Detection Value | Detection | |
| 1 | Appearance | No bubbles, no stains, no damage, no impurities | Qualified | Qualified | |
| 2 | Spec. | Width | 920±10mm | 922 | Qualified |
| Thickness | 0.1±0.005mm | 0.102 | Qualified | ||
| 3 |
Max.F (N/50mm) |
TD (CD) |
≥150 | 204 | Qualified |
| MD | ≥150 | 212 | Qualified | ||
| 4 |
Elongation (%) |
TD (CD) |
≥200 | 1155 | Qualified |
| MD | ≥200 | 968 | Qualified | ||
| 5 | Tensile Strength |
TD (CD) |
≥18 | 21 | Qualified |
| MD | ≥22 | 25 | Qualified | ||
About US:
| Upass, founded in 2008, now as a governing unit of China Building Waterproof Association, a vice chairman unit of Professional Committee of China Modified Plastic Association, an enterprise with Triple A credibility in China Plastic Association, not only assists the development of the relevant industries, but also upholds the conception of sustainable development by successive technological innovation. Upass so far has acquired over 100 of intellectual property rights. |
