100 Microns 0.26mm Bitumen Cross Laminated Film

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

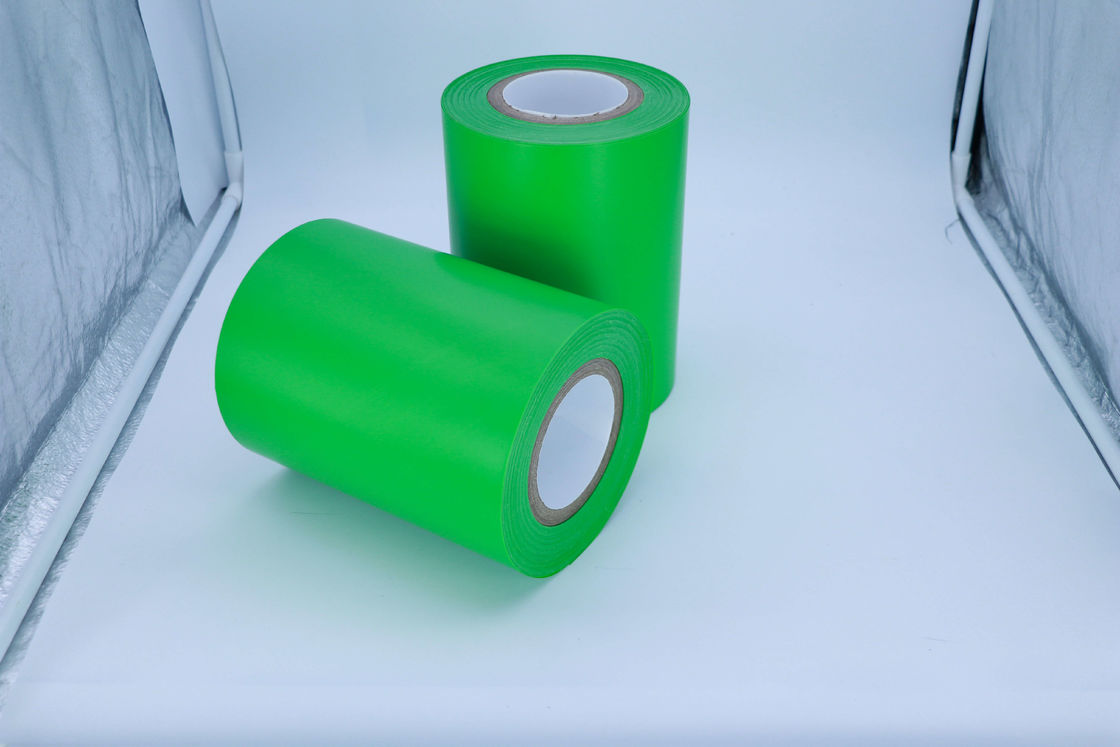

100 Microns 0.26mm Bitumen Cross Laminated Film

100 Microns 0.26mm Bitumen Cross Laminated Film
100 Microns 0.26mm Bitumen Cross Laminated Film

Large Image :  100 Microns 0.26mm Bitumen Cross Laminated Film

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Cross Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

100 Microns 0.26mm Bitumen Cross Laminated Film

Description
Product Name: 100 Micron Bitumen Membrane Application Cross Laminated HDPE Film Material: HDPE
Production Process: Cross Laminated Performance: Thermal Dimensional Stability
Thickness: 0.09-0.26 Width: 100-1250mm
Color: Black, Grey, Blue, Green, Etc. Application: Underlayment, Waterproofing Membrane
Printing: Can Be Customizable Sample: Available
High Light:

100 Microns Cross Laminated Film

,

260 Microns Cross Laminated Film

,

0.26mm polythene shrink film

100 Micron Bitumen Membrane Application Cross Laminated HDPE Film



Description:



It is a high-strength multi-layer composite film,made of HDPE as the base material,

Through multi-layer co-extrusion blow molding into embryos, and then by multiple pull

Stretching, then rotary cutting into a film substrate with a horizontal and vertical

distribution of 45 °, and finally through cross-laminated with an extruder with their

orientation directions crossed at 90 degrees.



100 Microns 0.26mm Bitumen Cross Laminated Film 0



Why Cross Laminated?

  • Puncture Resistance: less accidental damage
  • Thermal Dimensional Stability: No fish-mouthing or controlled shrinkage
  • Cold temperature resistant down to -30°C/-20°C
  • Cross laminated film allows waterproofing membranes to bridge gaps in sheathing
  • Resistant to damage from incidental movement and settling of the roof
  • UV Stability for typical job site exposure



Application:



100 Microns 0.26mm Bitumen Cross Laminated Film 1



100 Microns 0.26mm Bitumen Cross Laminated Film 2







Parameter:



NO. Item Performance
    SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
    MaxF/(N/50mm) ≥ 200 300
    Elongation as MaxF/% ≥ 200
    Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination

7 Thermal Ageing Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 80
    Elongation at MaxF/% ≥ 200
    Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 70
    Elongation at MaxF/% ≥ 180
    Elongation at break/% ≥ 180



FAQ:



Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.



Q2: Do you provide samples ? is it free or extra ?

A2: Yes, we could offer A4 sample for free charge but if you need in roll,

       we can offer 100-200m/roll for free, but shipping cost need you to paid.



Q3: How long is your delivery time?

A3: Depends on your quantity. Generally it is 15-20 days for 20GP container.



Q4: How to pay for your goods?

A5: By L/C, by T/T (30% deposit before production, 70% balance before loading).
