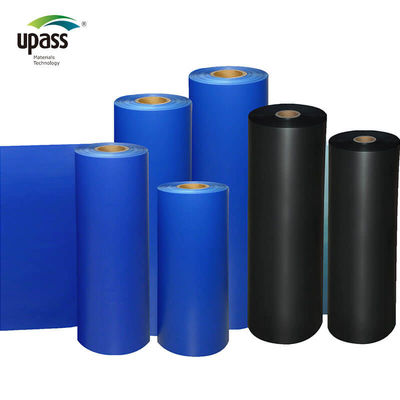

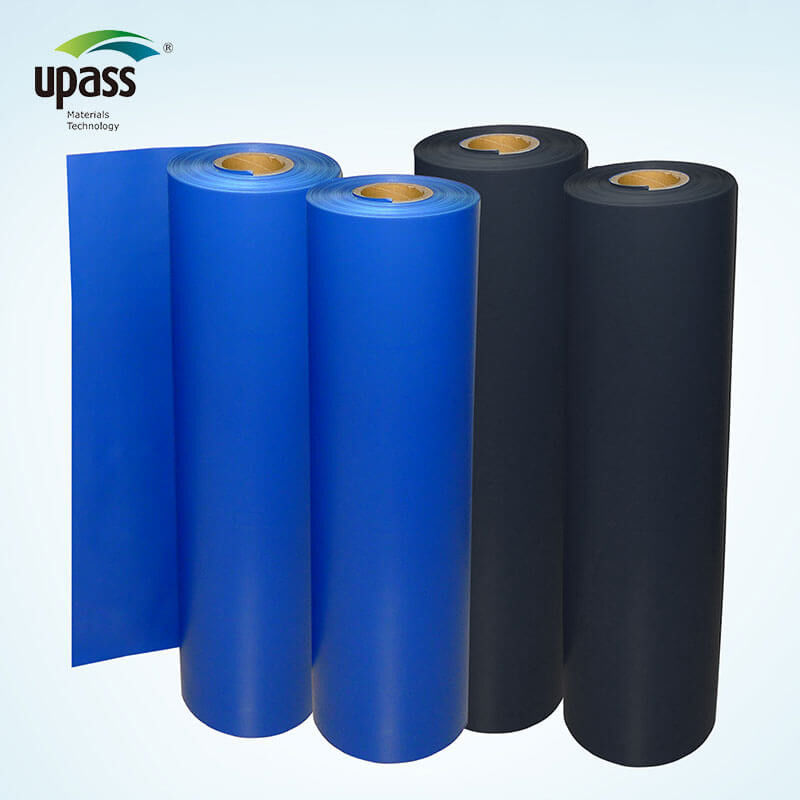

SDM Laminated Packaging Film

SDM Laminated Packaging Film
SDM Laminated Packaging Film SDM Laminated Packaging Film

Large Image :  SDM Laminated Packaging Film

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month
Contact Now

SDM Laminated Packaging Film

Description
Material: HDPE Color: Blue, Black, Grey, White, Green,etc.
Thickness: Blue, Black, Grey, White, Green,etc. Width: 900-1200
Application: Used For Construction Waterproofing, Special Packaging, Label,etc.
Highlight:

SDM Laminated Packaging Film

,

ISO9001 Laminated Packaging Film

,

ISO9001 Cross Laminated Film

                      SDM-30 & 60 Cross Laminated Packing Film

Product introduction:

It is multi-layers laminated film with high strength property, made via three layers co-extrusion blown film process and special stretching technology.

The inner crossed structure differs from conventional films with one layer or many layers, possesses both thermal stability and dimensional stability, good biaxial tearing-resistance & high tensile-strength, as well as high biaxial-elongation.





Characteristics:

The property is stable in general, with multi-characteristics of high strength, high elongation,

high & low temperature-resistance, unique punture-resistance, self-healing property and enduralble tearing-resistance,etc.





Performance index:



Item Unit Index
SDM-30 SDM-60
Thickness mm 0.09-0.265
Width mm 900-1200
Sleeve I.D. mm 76 76
Tensile property Tensile strength Mpa ≥30 ≥50
Max. Tensile strength (N/50mm) ≥200 ≥300
Elongation @ Max tension % ≥200
Elongation @ break % ≥250
Tearing-strength (Nail shank) N ≥60
Tearing-force N ≥25
Heat-resistance ℃ 120℃, 10min, No bubble & layering defects
Cryogenic Flexibility ℃ ℃ -30℃, 10min, No bubble & layering defects
Thermal-aging Appearance   No bubble, No layering defect
Subsequent tensile strength % ≥80
Elongation @ Max.tension % ≥200
Elongation @ break % ≥200



Application:
