Product Details:
|

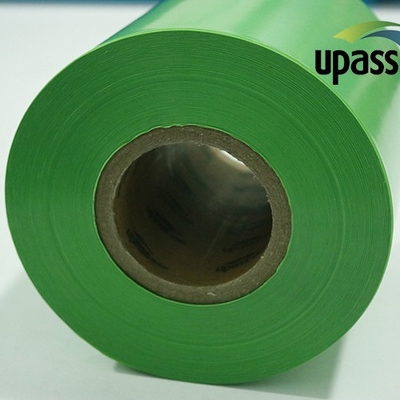

| Product Name: | Tear Resistance HDPE Film High Strength Cross Laminated Film | Material: | HDPE |
|---|---|---|---|
| Performance: | Cross Laminated | Type: | High Strength Surface Film |
| Thickness: | 0.09-0.265mm | Width: | 100-1200mm |
| Color: | Green, Black, Grey, White, Red, Grey/Black, Ect | Application: | Waterproofing Membranes, Tapes, Labels, Packaging Ect. |
| Highlight: | Waterproofing Cross Laminated Film,0.265mm Cross Laminated Film,Tear Resistance hdpe plastic film |
||
Cross Laminated Film is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45°, and finally through cross-compositing. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films.
Waterproofing Cross Laminated Film Applications:
Cross Laminated Film is widely used in anti-child tear packaging (MediCRREO); explosive packaging; chemical packaging; Blister Guard packaging; export merchandise packaging bags; building waterproof materials, postal tag, car airbag label, aviation tag Bulletproof clothing, etc.
Waterproofing Cross Laminated Film Advantages:
1. Excellent dimensional stability. It can fix its own size without deformation.
2. Two-way tear resistance. The vertical and horizontal mesh structure effectively solves the phenomenon of easy wrinkling and drumming after construction.
3. Performance against UV radiation. The use of outdoor high temperature conditions is guaranteed.
4. High strength and high elongation performance. Excellent resistance to high and low temperature.
5. Unique puncture resistance, self-healing and continuous tear resistance and excellent nail water tightness.
| Products Name | Waterproofing Cross Laminated Film | ||
| Detection Methed | Q/320585-2019 | ||
| NO. | Item | Factory Requirement | |
| 1 | Appearance | No bubbles, no stains, no damage, no impurities | |
| 2 | Spec. | Width | 940±5mm |
| Thickness | 0.1±0.03mm | ||
| 3 |
Max.F (N/50mm) |
TD (CD) |
≥250 |
| MD | ≥250 | ||
| 4 |
Elongation (%) |
TD (CD) |
≥250 |
| MD | ≥250 | ||
| 5 | Tensile Strength |
TD (CD) |
≥50 |
| MD | ≥50 | ||
| 6 | Tear Strength(Nail Shank)/N ≥ | N | ≥110 |
| 7 | Angle Tear Strength/N ≥ | N | ≥30 |
| 8 | Temperature Resistance | ℃ | 130 |
1,The production base is located in Taicang, Jiangsu Province, and Chenzhou, Hunan Province with a total area of 56 acres, professional to do many kinds of plastice films, such as, release film, HDPE film, lamination film, PET film and so on.
1. Free A4 samples;
2. Quick delivery;
3. High quality;
4. Competitive price;
5. Manufacturer
