Product Details:
|
| Product Name: | 25 Years Weather Resistance Time Anti Corrosion Film | Material: | Fluorine Film+ Cross Laminated Film |
|---|---|---|---|
| Production Process: | Laminated | Performance: | Aging Resistance |
| Thickness: | 0.08-0.1mm | Width: | 200-1000mm |
| Color: | White, Green, Black, Etc. | Application: | Tapes, Waterproofing Membranes |
| Printing: | 4 Colors | Sample: | Available |
| Highlight: | Weather Resistance Waterproofing Membranes,Waterproofing Cross Laminated Film,Anti Corrosion Film 0.1mm |
||

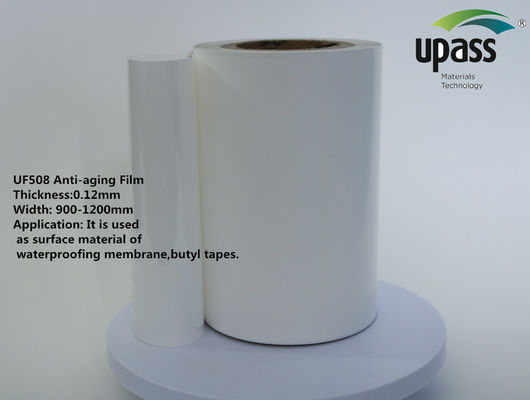

25 Years Weather Resistance Anti Corrosion Film
Description:
It is specially designed for waterproofing industry, which shall substitute conventional
exposed waterproofing material including the film for waterproofing membrane.
It also has cost effectiveness, and lasts over 25years of weather resistance.
Parameter:
| Detection Item | Detection Method | Detection Value | Remark | |
| Thickness | UF508 | GB/T6672-2001 | 0.1mm | / |
| Width | GB/T6673-2001 | / | According to customer needs | |
| Max force | UF508 | GB/T 328.9-2007 | MD:324N | Rectangular spline, spline width 25mm, stretching rate: 100mm / min, fixture gauge distance: 100mm |
| TD:348N | ||||
| Elongation at Break | UF508 | MD:406% | ||
| TD:260% | ||||
| Tensile Strength | UF508 | GB/T 529-2008 | MD:47N | Stretching speed:250mm/min |
| TD:43N | ||||
| Surface Tension | GB/T14216 | ≧42dyn/cm | Dyne Pen Test | |
| Dimensional change rate | UF508 | GB/T 35467-2017 | MD:0.96% | 90℃&24h |
| TD:0.77% | ||||
| Water vapor transmission rate | GB/T 21529 | ≦70 g/m2.24h (20um) | 38℃+100%RH | |
| Electrolytic sensor method | ||||
| Flammability grade | UL94 | VTM-0 | White weathering film | |
| Aging test | PCT96 | / | Yellowing index △b≤2.0, | Temperature 121 ℃, humidity 100%, air pressure 2atm, time 48h |
| UV300KWh | IEC61215 | The temperature of the sample is 60 ± 5 ℃, and the total exposure is 120KWh • m2, of which UVB accounts for 3% -10%. | ||
| DH2000h | IEC61215 | Temperature 85 ℃, humidity 85% R.H., 2000h | ||
| TC400 | IEC61215 | Temperature －40 ℃ ～ 85 ℃, 6h / cycle, 400cycle | ||
Application:
Metal roof renovation: On the old roof metal plate, the F508-butyl waterproofing membrane
is fully adhered to the original old roof metal plate base layer to form a roof system with a
complete waterproof layer.
Photovoltaic roofing: UF508 waterproofing membrane has the same life as photovoltaic
modules and can replace conventional PVC and TPO waterproofing memb
