Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM

Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM
Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM
Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM

Large Image :  Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM

Product Details:
Place of Origin: Shanghai, China
Brand Name: UPASS
Model Number: Aluminum Foil with PP Woven Fabrics Film
Payment & Shipping Terms:
Minimum Order Quantity: 10000
Price: $0.40-0.45
Contact Now

Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM

Description
Thickness: 85/90/custom Gsm Type: Roll
Use: Insulation Material, Liner & Wad Logo Printing: Custom Logo
Treatment: Coated, Composited Color: Blue/Grey/Custom
Width: 1350/1380±5mm,custom Gsm: 85/90/custom
Product Name: Aluminum Foil With PP Woven Fabrics Film Usage: Building Thermal Insulation
Composite Method: Solvent-based/Solvent-free/Coating Flame Retardant: Optional
Highlight:

PP coating aluminum foil insulation cloth

,

flame retardant heat insulation material

,

custom woven cloth insulation roll

PP Coating Composited Aluminum Foil Woven Cloth Insulation Material
This high-performance radiant barrier insulation combines a high-purity aluminum foil reflective layer with strong polypropylene (PP) woven fabric through advanced lamination technology. Designed for industrial and commercial applications, it provides superior radiant heat reflection, exceptional tear resistance, and comprehensive moisture protection.
Key Advantages
  • Energy Efficiency: Reflects radiant heat to reduce cooling costs in summer and retains indoor heat in winter
  • Durability: Exceptionally tough construction resists trampling and damage during installation
  • Dual Barrier Protection: Provides both thermal insulation and vapor/moisture barrier functions
  • Environmental Safety: Meets environmental standards with no fiber shedding
  • Versatile Applications: Suitable for metal roofs, steel structures, concrete walls, and cold storage facilities
Available in 85 GSM, 90 GSM, or Custom Thickness Options
Technical Specifications
Characteristic Value Standard
Width 1350mm +/-5 Supplier specification
Grammage 85g/m² +/-5 Supplier specification
Denier 750D/850D Supplier specification
Mesh 8X6 Supplier specification
Color Silver Grey Supplier specification
UV Resistance 2.5% Supplier specification
Tensile Strength - MD 12.5 N/50mm AS1301.448
Tensile Strength - TD 7.5 N/50mm AS1301.448
Elongation - MD 1.8% Supplier specification
Elongation - TD 1.8% Supplier specification
Winding 5,000 LMT/Roll Supplier specification
Core Size 76mm Supplier specification
Flammability Index Low ≤5 AS 1530.2
Edge Tearing Resistance Min 80 AS/NZS 4200.1
Applications
  • Industrial and commercial buildings: Thermal insulation and moisture-proofing for steel structure factory roofs and walls
  • Civil buildings: Reflective insulation layers for residential attics and under-pitched roofs; external or internal moisture-proof and thermal insulation layers for exterior wall insulation systems
  • Special environments: Moisture-proof, vapor-proof, and thermal insulation layers for cold storage warehouses and storage facilities; external protective layers for pipe insulation
  • Agricultural facilities: Nighttime insulation and summer shading for greenhouses
Product Images
Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM 0

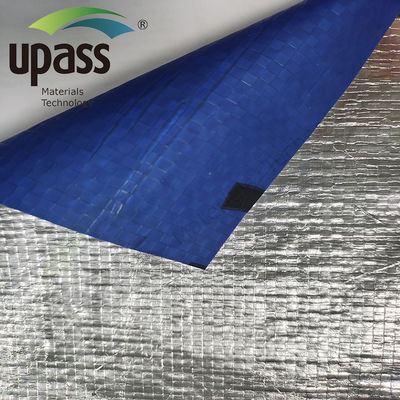

Material Texture & Layers
Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM 1

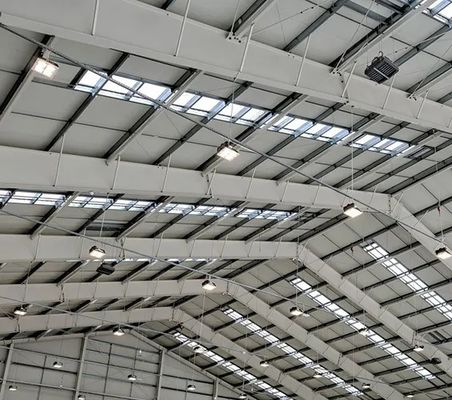

Industrial Installation
Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM 2
Commercial Application
Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM 3

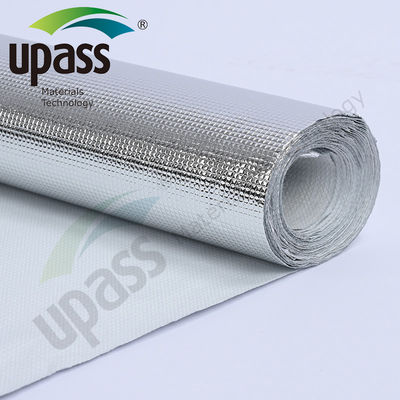

Edge & Core Detail
Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM 4
Packaging & Handling
Flame Retardant PP Coating Composite Aluminum Foil Woven Cloth for Building Thermal Insulation with Custom GSM 5
Large-Scale Project
