Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant

Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant
Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant
Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant

Large Image :  Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant

Product Details:
Place of Origin: Shanghai, China
Brand Name: UPASS
Model Number: Aluminum Foil with PP Woven Fabrics Film
Payment & Shipping Terms:
Minimum Order Quantity: 10000
Price: $0.40-0.45
Contact Now

Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant

Description
Thickness: 85/90/custom Gsm Type: Roll
Use: Insulation Material, Liner & Wad Logo Printing: Custom Logo
Treatment: Coated, Composited Color: Blue/Grey/Custom
Width: 1350/1380±5mm,custom Gsm: 85/90/custom
Product Name: Aluminum Foil With PP Woven Fabrics Film Usage: Building Thermal Insulation
Composite Method: Solvent-based/Solvent-free/Coating Flame Retardant: Optional
Highlight:

aluminum foil radiant barrier insulation

,

reinforced pp woven fabric insulation

,

custom gsm radiant barrier roll

Radiant Barrier Insulation Aluminum Foil Reinforced PP Woven Fabric Roll
Product Overview
This high-performance building insulation material combines a high-purity aluminum foil reflective layer with strong polypropylene (PP) woven fabric through advanced lamination. It provides superior radiant heat reflection, tear resistance, and moisture protection as a complete insulation system for industrial and commercial applications.
Key Advantages
  • Energy Efficiency: Reflects radiant heat to reduce cooling costs in summer and retains indoor heat in winter
  • Durability: Exceptionally tough construction resists trampling and damage during installation
  • Dual Barrier Protection: Provides both thermal insulation and vapor/moisture barrier functions
  • Environmental Safety: Meets environmental standards with no fiber shedding
  • Versatile Applications: Suitable for metal roofs, steel structures, concrete walls, and cold storage facilities
Available in 85 GSM, 90 GSM, or Custom Thickness Options
Technical Specifications
Characteristic Value Standard
Width 1350mm +/-5 Supplier specification
Grammage 85g/m² +/-5 Supplier specification
Denier 750D/850D Supplier specification
Mesh 8X6 Supplier specification
Color Silver Grey Supplier specification
UV Resistance 2.5% Supplier specification
Tensile Strength - MD 12.5 N/50mm AS1301.448
Tensile Strength - TD 7.5 N/50mm AS1301.448
Elongation - MD 1.8% Supplier specification
Elongation - TD 1.8% Supplier specification
Winding 5,000 LMT/Roll Supplier specification
Core Size 76mm Supplier specification
Flammability Index Low ≤5 AS 1530.2
Edge Tearing Resistance Min 80 AS/NZS 4200.1

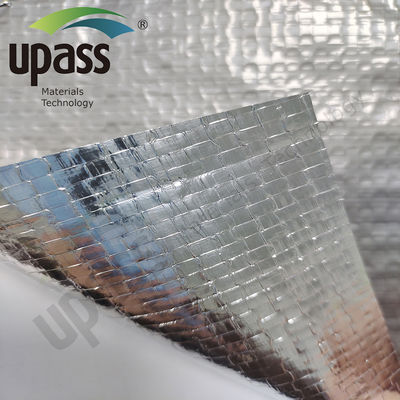

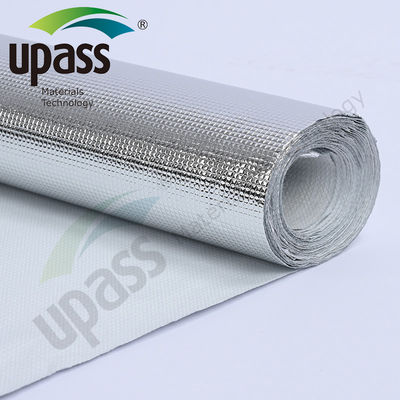

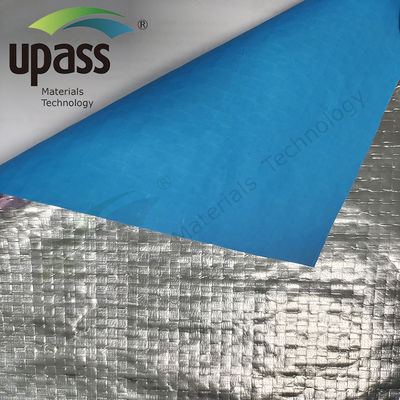

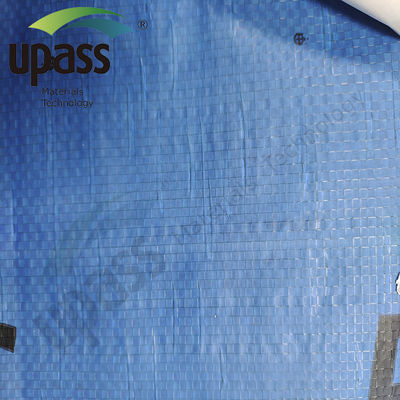

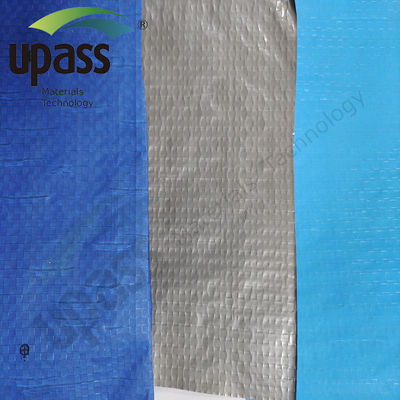

Application&Product Images

Industrial and commercial buildings: Thermal insulation and moisture-proofing for steel structure factory roofs and walls.

Civil buildings: Reflective insulation layers for residential attics and under-pitched roofs; external or internal moisture-proof and thermal insulation layers for exterior wall insulation systems.

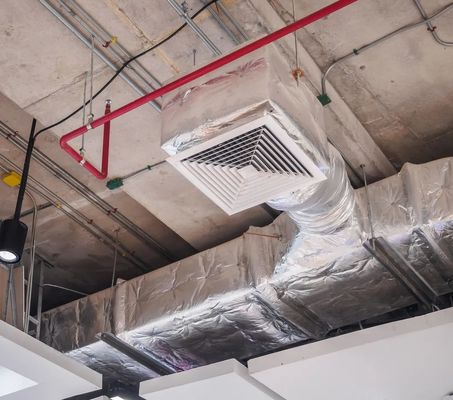

Special environments: Moisture-proof, vapor-proof, and thermal insulation layers for cold storage warehouses and storage facilities; external protective layers for pipe insulation.

Agricultural facilities: Nighttime insulation and summer shading for greenhouses.

Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant 0 Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant 1 Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant 2 Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant 3 Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant 4 Radiant Barrier Insulation Roll with Aluminum Foil Reinforced PP Woven Fabric - 85/90/Custom GSM, Corrosion Resistant, Flame Retardant 5
