Product Details:
|
| Product Name: | Anti-aging PET Laminated Film | Application: | It Is Used For The Market Of Waterproofing, Adhesive Tapes,etc. |
|---|---|---|---|
| Main Feature: | Anti-aging | Color: | Silver |
| Material: | Aluminum Foil+PET Film | Aging Resistance Time: | 5-10 Years |
| High Light: | Aging Resistant PET Laminated Film,UV Resistance PET Laminated Film,Silver Waterproofing PET Laminated Film |
||

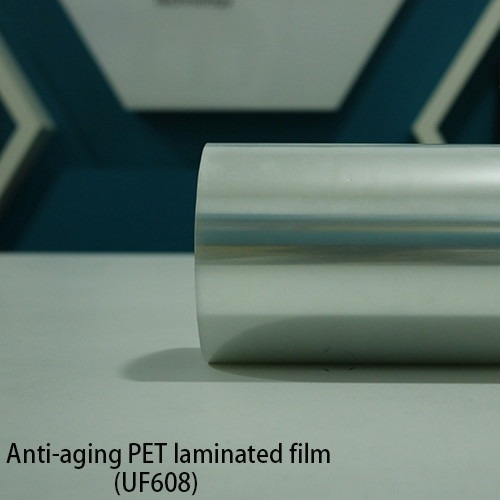

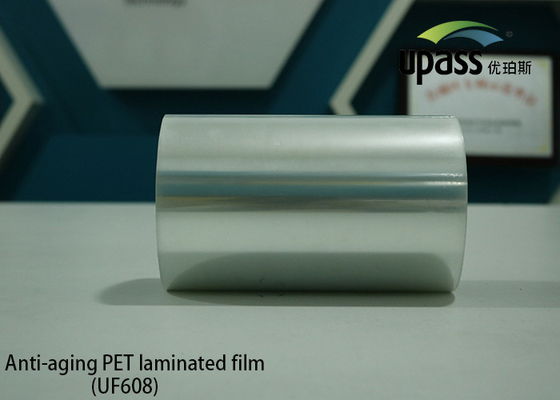

Anti-aging PET laminated film 608 Waterproofing application film
Description:
It is a composite of modified anti-aging material and aluminum foil, used for the surface of exposed waterproofing membrane, without efflorescence and layering defect, has good anti-aging, UV resistance and weather resistance as well. It prevents the asphalt from sun exposure due to reflectivity of over 90%.
Application:
It is used for the market of waterproofing, adhesive tapes,etc.
Main feature: Anti-aging
Color: Silver
Performance index:
| Test item | Test method | Value | Remark | |
| Thickness | 0.045 | GB/T6672-2001 | 0.046 | |
| 0.07 | GB/T6672-2001 | 0.072 | ||
| Width | GB/T6673-2001 | 1000 | as per the requirement | |
| Sleeve I.D. | 350 | as per the requirement | ||
| Period of anti-aging | 0.045 | / | / | 5~10 years |
| 0.07 | / | / | over 20years | |
| Max.Tensile strength | 0.045 | GB/T 328.9-2007 |
MD:388N TD:354N |
Rectangle Specimen-Width: 25mm, Stretching speed: 100mm/min., Fixture gauge length: 100mm |
| 0.07 |
MD:456N TD:428N |
|||
| Elongation @ Max. tension | 0.045 |
MD:85% TD:78% |
||
| 0.07 |
MD:102% TD:93% |
|||
| Peeling force | 0.045 | GB/T 529-2008 |
MD:20.4N TD:18.6N |
Stretching speed: 250mm/min |
| 0.07 |
MD:23.9N TD:21.5N |
|||
| Dimensional stability | 0.045/0.07 | GB/T 35467-2017 |
MD:0% TD:0% |
90℃&24h |
| Aging test | PCT96 | / |
Yellowing index △b≤2.0,
|
Temperature:121℃, Humidity: 100％, Atmosphere pressure: 2atm,Time: 48h |
| UV300KWh | IEC61215 |
Temperature on the sample: 60±5℃, Total exposure dose: 120KWh•m2,UVB factor: 3%-10%. |
||
