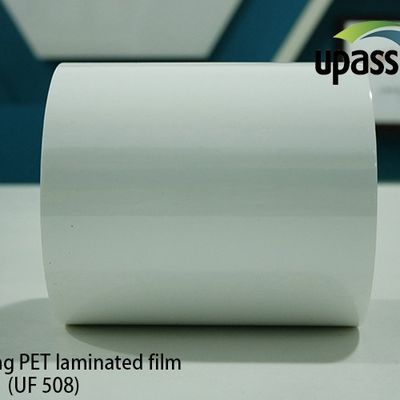

Anti Aging PET Laminated Film Waterproofing Application Film

Description
Product Name: Anti-aging PET Laminated Film Material: PET
Feature: Aging Resistance Aging Resistance Time: 5-10 Years
Thickness: 0.036/0.045mm Application: Surface Material Of Tapes, Waterproofing Membranes
High Light:

Waterproof PET Laminated Film

,

Aging Resistance PET Laminated Film

,

Waterproofing Tapes PET Laminated Film

Anti-aging PET laminated film Waterproofing application film





Description:

It is specially designed for waterproofing industry, which shall substitute conventional exposed waterproofing material including the film for waterproofing membrane. It also has cost effectiveness , and lasts over 25years of weather resistance.

Application: It is used as surface material of waterproofing membrane.

Main features: Excellent properties of anti-aging, UV resistance, weather resistance and chemical corrosion resistance. Resistance to high temperature,heat,humidity and extreme cold. Reflectivity of over 85%.

Color: White



Performance index:



Test item Test method Value Remark
Thickness UF508 GB/T6672-2001 / 0.12mm
Width GB/T6673-2001 / As per requirements
Sleeve I.D.   76mm
Max. Tensile strength UF508 GB/T 328.9-2007

MD:770N

TD:762N

Rectangle Specimen-Width: 25mm, Stretching speed: 100mm/min., Fixture gauge length: 100mm
Elongation @ Max.tension UF508

MD:79%

TD:99%

Peeling force UF508 GB/T 529-2008

MD:23N

TD:21N

Stretching speed:250mm/min
Surface tension GB/T14216 ≧42dyn/cm Dyne pen test
Rate of dimensional changes UF508 GB/T 35467-2017

MD:0%

TD:0%

90℃&24h

MVTR



GB/T 21529 ≦70 g/m2.24h (20um)

38℃+100%RH

Electroanalysis sensor

Flame retardant rating UL94 VTM-0

Weather resistance film

(White)

Aging test PCT96 /



Yellowing index △b≤2.0,



Temperature:121℃,

Humidity: 100%,

Atmosphere pressure: 2atm,Time: 48h

UV300KWh IEC61215 The sample temperature is 60±5℃, and the total irradiation amount is 120KWh•m2, of which UVB accounts for 3%-10%.
DH2000h IEC61215 Temperature 85℃, humidity 85%R.H., 2000h
TC400 IEC61215 Temperature -40℃~85℃, 6h/cycle, 400 cycles




About Upass:



Anti Aging PET Laminated Film Waterproofing Application Film 0



Anti Aging PET Laminated Film Waterproofing Application Film 1



Upass was founded in 2008, headquartered in the cluster of New Material Industrial Park, Qingpu District, Shanghai. Upass industry is affiliated to the field of new innovative material among top10 Made in China 2025. Upass production bases are respectively located in Taicang, Jiangsu Province ( the 1st stage of project was in to production in Jun.2014, covering over 36,600 Sqm., which was one of the major municipal investment programs in Taicang city in 2012.The 2nd stage of project will be in to production within 2020), and Chenzhou city, Hunan province.
Upass was introduced integrated hi-tech manufacturing equipment from European countries. As an environment oriented company, Upass particularly focuses on technological innovation, and spares no efforts in continuously strengthening the abilities in R&D. Upass self-established national standard laboratory. Through the cooperation with Sinopec Group and excellent national universities, Upass has jointly developed SDM strong cross film, PE release film with multi-characters (of wrinkle, hydrophilic, non-slippy, tear line, anti-aging, etc.), PET release film (various peeling forces), SBS super soluble film, the new national standardized laminated film,etc. The series of products especially have been acknowledged by top ten companies in the relevant downstream industries in China. Upass has so far acquired more than 100 patents of intellectual properties.
