White Color Adhesive Electronic Switchable Smart Film

White Color Adhesive Electronic Switchable Smart Film
White Color Adhesive Electronic Switchable Smart Film White Color Adhesive Electronic Switchable Smart Film White Color Adhesive Electronic Switchable Smart Film White Color Adhesive Electronic Switchable Smart Film

Large Image :  White Color Adhesive Electronic Switchable Smart Film

Product Details:
Place of Origin: China
Brand Name: Youguang
Certification: ISO9001
Model Number: Youguang
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

White Color Adhesive Electronic Switchable Smart Film

Description
Thickness: 2mm-5mm Width: 600-2000mm Can Be Customized
Total Light Transmittance: Power Off >67% Directional Light Transmittance: Power Off <4%
Haze: Power Off >96% Application: Used For The Building Of Decorating, Remodeling, Advertising
Product Name: High Transparent Electric Switchable PDLC Smart Film Material: ITO
High Light:

Switchable PDLC Smart Film

,

Adhesive Switchable Smart Film

,

Electronic Switchable Smart Film

          White Color Adhesive Electronic Switchable Smart Film

Product Description:



White Color Adhesive Electronic Switchable Smart Film is also known as
PDLC film (Polymer Dispersed Liquid Crystal), electrically controlled smart film,
electronic curtain, smart film, intelligent film, dimming film, magic film, switchable film, etc.
It's enabling glass to be instantly transformed from a clear state to an opaque state,
by the flicking of a switch, providing immediate privacy and security, when required.
It is based on digital shading technology that allows the color of the film to go from
non-transparent to transparent when you apply a current through it. PDLC Samrt Film
will will give you the option for privacy on demand by adjusting the amount of light
traveling through your window.


Technical Parameters:


Item Performance / Unit Testing Method and Standard
Rated Voltage ON 36/48/60(AC50HZ) Multimeter
Power Consumption ON 4-6w/(SQM) Multi-parameter Electrical Measuring Instruments
Total Light Transmittance ON >81% GB/T 2410-2008GB/Spectrophotometer
  OFF >67%
Directional Light Transmittance ON >80% GB5137.2-2002
  OFF <4%
Haze ON <4% GB/T 2410-2008GB/Spectrophotomete
  OFF >96%
Response Time ON <40(MS) Liquid Cystal Mutl-prareter. Measuring Instrument
  OFF <210(MS)
Operating Temperature / -30~70℃ Constant Temperature and Humidly Testing Machine
Lifetime ON >100000(H) GB18910.5- 2008


Structure:

White Color Adhesive Electronic Switchable Smart Film 0



Application:

Glass wall / partition

Bath Room / Shower Enclosure

Glass window/ door

Projection screen

Hotel/office/shop windowss

House insulations

Hospital/library/theater glass windows


White Color Adhesive Electronic Switchable Smart Film 1


White Color Adhesive Electronic Switchable Smart Film 2




FAQ:

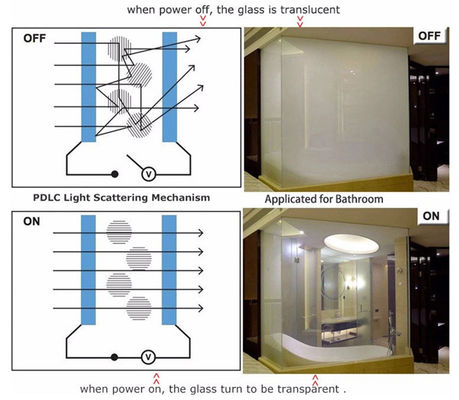

1. How does Smart Film work?
In “Off State” when no electrical power is applied on the smart film the light is absorbed

or scattered and the film looks dark gray or white.
In “On State” the light is transmitted and the film looks transparent.
2. What is the product lead time?
Lead time for PDLC Film Products is 5-7 days after received payment.
3. What is the size of your package?

1 roll / 60 square meter 1* box L146*W38*H38CM
4. What are your shipment terms?
We deliver it by air/express transportation.
Customer clear custom, release and deliver to final destination.
5. Is there a MOQ (Minimum of Quantity)?
1 square meter
6. What is the expected life of your products?
Life expectancy is approximately 8-10 years or switch >2000000times.
