Waterproof Membranes PE Laminated Film 0.045mm Thickness

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

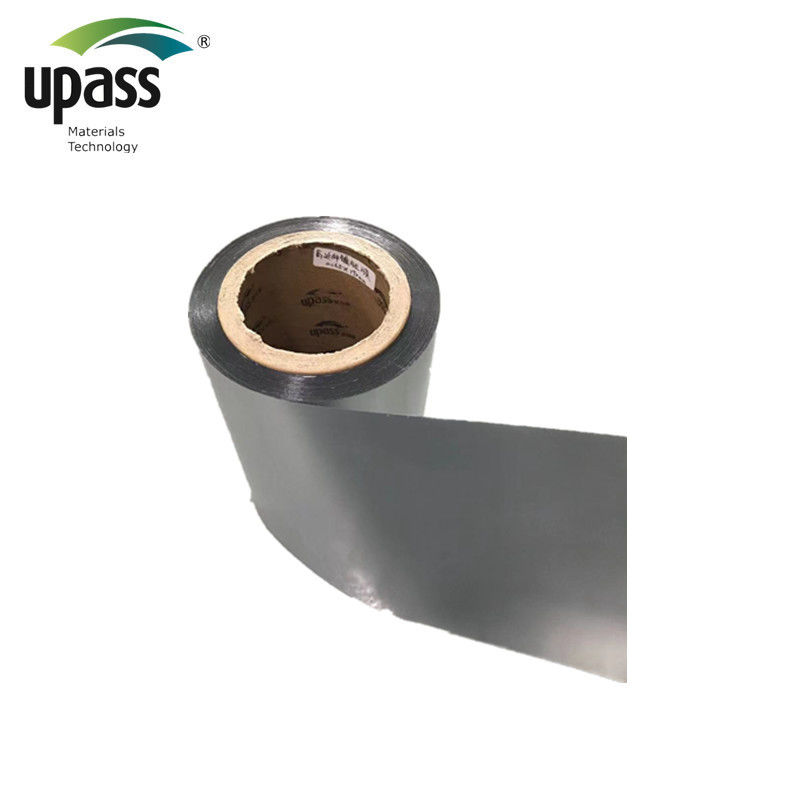

Waterproof Membranes PE Laminated Film 0.045mm Thickness

Waterproof Membranes PE Laminated Film 0.045mm Thickness
Waterproof Membranes PE Laminated Film 0.045mm Thickness

Large Image :  Waterproof Membranes PE Laminated Film 0.045mm Thickness

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

Waterproof Membranes PE Laminated Film 0.045mm Thickness

Description
Product Name: PE Laminated Film For Tape Surface Material Material: Aluminum Foil+PET Film
Production Process: Laminated Performance: Thermal Dimensional Stability
Thickness: 0.045-0.085mm Width: 100-1250mm
Color: Silver Application: Surface Material Of Tapes, Waterproofing Membranes
Printing: Can Be Customizable Sample: Available
High Light:

Waterproof Membranes PE Laminated Film

,

0.045mm PE Laminated Film

,

100mm Width PE Laminated Film

               PE Laminated Film For Tape Surface Material



Description:


It is a laminated film which composite of aluminum foil and transparent PET

(Polyester terephthalate)film, make the film silver color on both sides, the surface

is like a mirror, has good mirror effect with 95% reflectivity.



It is combine the advantages of aluminum foil and PET film. Make it tear resistance,

high strengthen, high temperature resistance and strong barrier property.



It is used for surface material on waterproofing membrane, base material for

adhesive tapes, shielding material for electric wires and cables, including

exhausting pipe of air-conditioner, etc.



Parameter:



NO. Item Unit Factory parameter
1 Appearance / No bubbles, no leakage plating, no delamination
2 Thickness mm 0.065-0.085
3 Width mm 100-1250
4 Max.Fd N/50mm ≥200
5 Elongation at break % ≥30
6 90° right angle tear N ≥20
7

Thermal stability

150℃ No Shrinkaging



Advantage:



► Good weather resistance
► Strong barrier property
► High reflective effect





Waterproof Membranes PE Laminated Film 0.045mm Thickness 0



Waterproof Membranes PE Laminated Film 0.045mm Thickness 1



Main Fields:

As a new material field, functional films are also one of the top ten key fields of Made in China 2025,
and the awareness in the market is increasing. Nowadays, functional films are not only used in the
construction field, special packaging, tape, label, automobile, electronics and other industries,
but also in the fields of film filtration, air permeable film, graphene heating film, insulation film,
Anti-UV film, biodegradable materials etc..
UPASS, as a leading domestic deep cultivator of polymer functional films, has also entered a stage
of rapid development. We believe that UPASS will enter more application fields of polymer films in
near future.

Waterproof Membranes PE Laminated Film 0.045mm Thickness 2

FAQ:



Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.



Q2: Do you provide samples ? is it free or extra ?

A2: Yes, we could offer A4 sample for free charge but if you need in roll, we can offer 100-200m/roll for free, but shipping cost need you to paid.



Q3: How long is your delivery time?

A3: Depends on your quantity. Generally it is 15-20 days for 20GP container.



Q4: What's your payment?

A4: By L/C, by T/T (30% deposit before production, 70% balance before loading).



Q5: What's the usage of this film?

A5: It is special for the surface/base material when you producing SBS or APP bitumen

and self-adhesive waterproofing membranes.



Q6: What's the thickness you can do?

A6: We can do as thin as 90 microns, but usually do 100-120 microns.



Q7: What's your production capacity?

A7: 500 tons per month.
