Aluminum Tapes PE Laminated Film 1250mm Width Tear Resistance

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

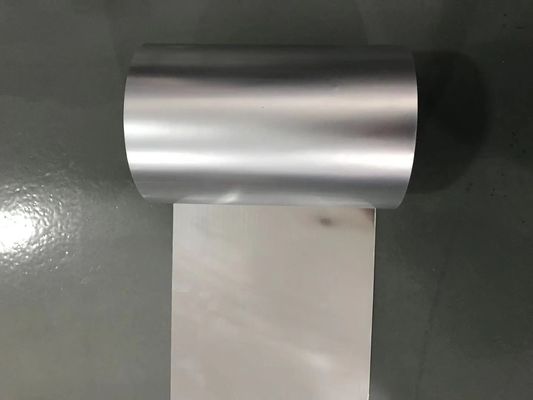

Aluminum Tapes PE Laminated Film 1250mm Width Tear Resistance

Aluminum Tapes PE Laminated Film 1250mm Width Tear Resistance
Aluminum Tapes PE Laminated Film 1250mm Width Tear Resistance

Large Image :  Aluminum Tapes PE Laminated Film 1250mm Width Tear Resistance

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

Aluminum Tapes PE Laminated Film 1250mm Width Tear Resistance

Description
Product Name: PE Laminated Film For Tape Surface Material Material: Aluminum Foil+PET Film
Production Process: Laminated Performance: Thermal Dimensional Stability
Thickness: 0.045-0.085mm Width: 100-1250mm
Color: Silver Application: Surface Material Of Tapes, Waterproofing Membranes
Printing: Can Be Customizable Sample: Available
High Light:

Aluminum Tapes PE Laminated Film

,

1250mm PE Laminated Film

,

Tear Resistance PE Laminated Film

               PE Laminated Film For Tape Surface Material



Description:


It is a laminated film which composite of aluminum foil and transparent PET(Polyester

terephthalate)film.

It is combine the advantages of aluminum foil and PET film. Make it tear resistance,

high temperature resistance and reflection of sunlight.

It is a surface material for self-adhesive, SBS waterproofing membranes and

aluminum tapes.



Parameter:



NO. Item Unit Factory parameter
1 Appearance / No bubbles, no leakage plating, no delamination
2 Thickness mm 0.065-0.085
3 Width mm 100-1250
4 Max.Fd N/50mm ≥300
5 Elongation at break % ≥50
6 90° right angle tear N ≥20



Advantage:



► The surface gloss is good and has a strong reflective effect;
► Protects the aluminum-plated aluminum layer from exposure to air aging;
► High strength, high temperature resistance.





Aluminum Tapes PE Laminated Film 1250mm Width Tear Resistance 0



Aluminum Tapes PE Laminated Film 1250mm Width Tear Resistance 1
