High Density Polyethylene 0.09mm UV Resistant Laminating Film

Certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
China Upass Material Technology (Shanghai) Co.,Ltd. certification
I'm Online Chat Now

High Density Polyethylene 0.09mm UV Resistant Laminating Film

High Density Polyethylene 0.09mm UV Resistant Laminating Film
High Density Polyethylene 0.09mm UV Resistant Laminating Film

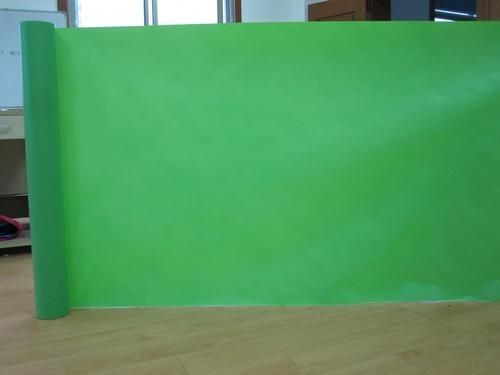

Large Image :  High Density Polyethylene 0.09mm UV Resistant Laminating Film

Product Details:
Place of Origin: China
Brand Name: Upass
Certification: CE, ROHS
Model Number: Cross Laminated Film
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Bubble Wrap & Wooden Pallet
Delivery Time: 15days
Payment Terms: T/T,L/C
Supply Ability: 200,000㎡~300,000㎡

High Density Polyethylene 0.09mm UV Resistant Laminating Film

Description
Product Name: High Density Polyethylene Packaging Film Material: HDPE
Production Process: Cross Laminated Performance: High Strength Tear Resistance Thermal Dimensional Stability
Thickness: 0.09-0.26 Width: 100-1250mm
Color: Black, Grey, Blue, Green, Etc. Application: Label Material, Packing Film
Printing: Can Be Customizable Sample: Available
High Light:

0.09mm UV Resistant Laminating Film

,

0.26mm UV Resistant Laminating Film

,

0.09mm composite film

                   High Density Polyethylene Packaging Film​



Product Description:



It is a high-strength multi-layer composite film,It is made of HDPE as the base material, adding plasticizer, plasticizer, stabilizer, antioxidant, UV absorber, toughener and other additives through multi-layer co-extrusion blow molding into embryos, and then by multiple pull Stretching, then rotary cutting into a film substrate with a horizontal and vertical distribution of 45 °, and finally through cross-compositing. Due to its cross-stacking structure is different from ordinary single-layer or multi-layer film, it has the thermal stability, dimensional stability, two-way tear resistance, two-way uniform tension and high elongation which are not available in traditional films.
It is an extremely versatile, high-performance product line that resists tearing, puncturing,
and weathering. Our proprietary, cross-lamination manufacturing process provides
considerably tighter gauge control than competitive spun bonded, smoother printing
surfaces, and ease in converting. It is so strong that it will not tear, even when nicked,
and withstands cold temperature. UV stabilized, the grades hold up well during outdoor
exposure and provides superior moisture and chemical resistance making it ideal for
cotton packaing.



Advantages:



Excellent dimensional stability
Two-way tear resistance
Performance against UV radiation
High strength
High elongation
Excellent resistance to high and low temperature
Unique puncture resistance
self-healing
Continuous tear resistance
Excellent nail water tightness
Chemical and Oil Resistance



Phameter:



NO. Item Performance
    SDM-30 SDM-60
1 Tensile Property Tensile Strength/Mpa ≥ 30 50
    MaxF/(N/50mm) ≥ 200 300
    Elongation as MaxF/% ≥ 200
    Elongation at break/% ≥ 250
2 Sample number of no broken tested by free-falling dart method ≥ 8
3 Tear Strength(Nail Shank)/N ≥ 60
4 Angle Tear Strength/N ≥ 25
5 Thermal Stability 120 ℃,10min, No bulb, No deformation
6 Cryogenic Flexibility ℃

-35℃,

No fissure, No delamination

7 Thermal Ageing Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 80
    Elongation at MaxF/% ≥ 200
    Elongation at break/% ≥ 200
8 Artificial Weathering Appearance No bulb, No deformation
    Subsequent MaxF/% ≥ 70
    Elongation at MaxF/% ≥ 180
    Elongation at break/% ≥ 180



Main Fields:



As a new material field, functional films are also one of the top ten key fields of Made in China 2025, and the awareness in the market is increasing. Nowadays, functional films are not only used in the construction field, special packaging, tape, label, automobile, electronics and other industries, but also in the fields of film filtration, air permeable film, graphene heating film, insulation film, Anti-UV film, biodegradable materials etc..

UPASS, as a leading domestic deep cultivator of polymer functional films, has also entered a stage of rapid development. We believe that UPASS will enter more application fields of polymer films in near future.
