Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film

Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film
Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film

Large Image :  Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film

Product Details:
Place of Origin: China
Brand Name: UPASS
Certification: ISO9001
Model Number: Youguang
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Pallet
Delivery Time: Negotiable
Payment Terms: TT/LC
Supply Ability: 600 Tons/Month

Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film

Description
Thickness: 2mm-5mm Width: 600-2000mm Can Be Customized
Total Light Transmittance: Power Off >67% Directional Light Transmittance: Power Off <4%
Haze: Power Off >96% Application: Used For The Building Of Decorating, Remodeling, Advertising
Product Name: UV Block And Super Clear Switchable PDLC Smart Film Material: ITO
High Light:

5000 Micron Switchable PDLC Smart Film

,

5mm Switchable PDLC Smart Film

,

5mm pdlc window film

 UV Block And Super Clear Switchable PDLC Smart Film

Description:


Self-adhesive Lamination Transparency PDLC Smart Film is also known as
PDLC film (Polymer Dispersed Liquid Crystal), electrically controlled smart film,
electronic curtain, smart film, intelligent film, magic film, switchable film, etc.
It's enabling glass to be instantly transformed from a clear state to an opaque state,
by the flicking of a switch, providing immediate privacy and security, when required.
It is based on digital shading technology that allows the color of the film to go from
non-transparent to transparent when you apply a current through it. PDLC Samrt Film
will will give you the option for privacy on demand by adjusting the amount of light
traveling through your window.


Parameters:



Item Performance / Unit Testing Method and Standard
Rated Voltage ON 36/48/60(AC50HZ) Multimeter
Power Consumption ON 4-6w/(SQM) Multi-parameter Electrical Measuring Instruments
Total Light Transmittance ON >83% GB/T 2410-2008GB/Spectrophotometer
  OFF >67%
Directional Light Transmittance ON >80% GB5137.2-2002
  OFF <4%
Haze ON <4% GB/T 2410-2008GB/Spectrophotomete
  OFF >96%
Response Time ON <40(MS) Liquid Cystal Mutl-prareter. Measuring Instrument
  OFF <210(MS)
Operating Temperature / -30~70℃ Constant Temperature and Humidly Testing Machine
Lifetime ON >100000(H) GB18910.5- 2008


Structure:



Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film 0



Application:


Large command and control dispatch center office, meeting room, negotiation room, special hospital room. Operating room, villa toilet. Shower room, window of entertainment room. Isolation. screen, etc..
Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film 1

Police station, Courts. Prisons. Jewelry shops. Museums. Bank Windows. Curtain walls. Counter. Isolation, etc.. Large special screen projection screen, etc..
Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film 2



How it works:

Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film 3


Advantages:



Privacy Protection and Room Partition:
The most function is privacy protection . Transforms from opaque barrier to a clear state.
Allows Architects and Contractors to provide creative design concepts on demand.

Rear Projection Screen:
Great solution for a rear-projection screen with high contrast.

Explosion- proof:
No distraction of shutters blinds or drapes.

Heat Insulation:
The smart film and EVA film can block sun solar energy, 99%UV, 98% IR rays.
Protecting your interiors fading and yellowing.
And meanwhile, can protect people from disease caused by direct sunlight.

Sound Insulation:
Can block noise by 20% more than normal glass.

Multiple Control:
Different style controls like remote control, wall switch, light sensor, voice control, APP etc.



FAQ:

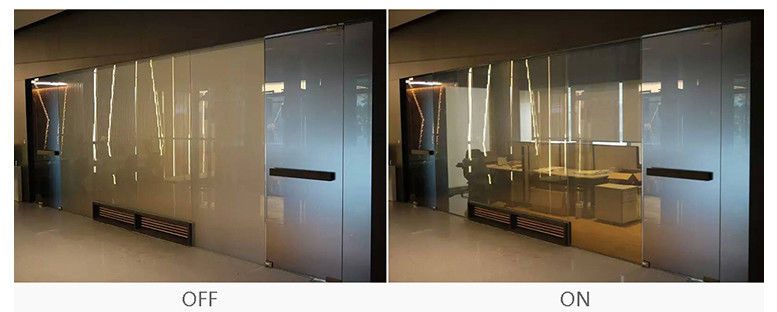

1. How does Smart Film work?
In “Off State” when no electrical power is applied on the smart film the light is absorbed

or scattered and the film looks dark gray or white.

In “On State” the light is transmitted and the film looks transparent.

2. What is the product lead time?
Lead time for PDLC Film Products is 5-7 days after received payment.

3. What is the size of your package?

1 roll / 60 square meter 1* box L146*W38*H38CM

4. What are your shipment terms?
We deliver it by air/express transportation.
Customer clear custom, release and deliver to final destination.

5. Is there a MOQ (Minimum of Quantity)?
1 square meter

6. What is the expected life of your products?
Life expectancy is approximately 8-10 years or switch >2000000times.



About Upass:



Upass, founded in 2008, now as a governing unit of China Building Waterproof Association,

a vice chairman unit of Professional Committee of China Modified Plastic Association,

an enterprise with Triple A credibility in China Plastic Association, not only assists the

development of the relevant industries, but also upholds the conception of sustainable

development by successive technological innovation. Upass so far has acquired over

100 of intellectual property rights.



Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film 4



Clear ITO 5mm 5000 Micron Switchable PDLC Smart Film 5
